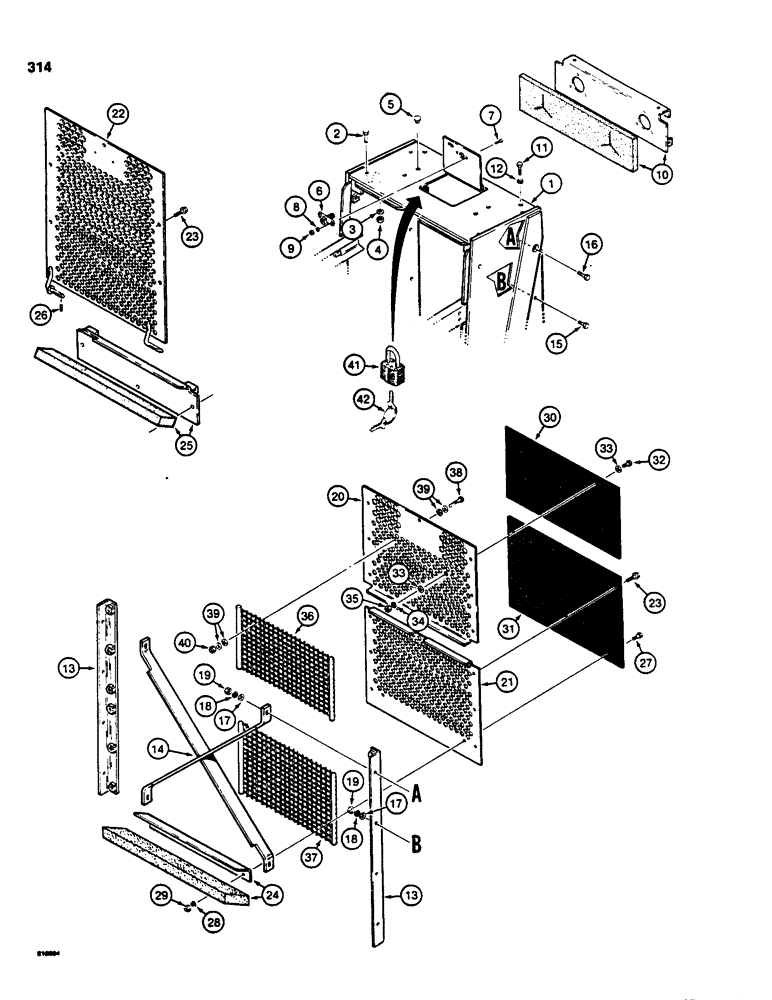

Запчасти Case 850C (314) - GRILLE AND RADIATOR GUARDS (05) - UPPERSTRUCTURE CHASSIS

1

R45313

PLATE

- top, includes decal

1шт.

2

26-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

4шт.

3

R24718

WASHER

- hardened

4шт.

4

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

4шт.

5

353-409

PLUG,Dome, .812" hole, Nylon

- nylon, 13/16" (21 mm) diameter, used when ROPS canopy or cab is not used

4шт.

6

L102515

LATCH

FASTENER - access door

1шт.

7

182-125

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

MACHINE SCREW - no 10 - 24 NC x 1/2"

2шт.

8

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

9

129-7

NUT,Hex, #10 - 24

- hex, no 10 - 24 NC

2шт.

10

R34252

BRACKET - mounting, head lamps, includes pad

1шт.

11

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

12

92-8

LOCK WASHER,1/2"

2шт.

13

R32443

SUPPORT

BRACKET - grille mounting

2шт.

14

R32156

BRACE

- radiator shroud

1шт.

15

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

16

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

17

195-33

WASHER,1/2"

- flat, 1/2"

8шт.

18

92-8

LOCK WASHER,1/2"

8шт.

19

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

8шт.

20

R32447

GRILLE

- top, standard, if used

1шт.

21

R32446

GRILLE

- lower, standard, if used

1шт.

22

R45040

GRILLE - heavy duty, one-piece, if used

1шт.

23

121-429

FLANGE BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

BOLT, , 13 used on standard grilles; 6 used on heavy duty grille Hex Flg, 1/2"-13 x 1 1/4", G8, Full Thd

6-13шт.

24

R34251

BRACKET - grille, lower, used with standard two-piece grille only, includes pad

1шт.

25

R45036

BRACKET - grille, lower, used with heavy duty one-piece grille only, includes pad

1шт.

26

138-97

LOCK PIN,3/16" x 1 1/8", Slotted

ROLL PIN - 5/16" (8 mm) diameter, used with heavy duty one-piece, grille only

2шт.

27

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

28

92-8

LOCK WASHER,1/2"

2шт.

29

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

2шт.

30

R33695

SCREEN - dirt, outer, upper

1шт.

Outer dirt screens and inner brush guards cannot be used together on one tractor.

1шт.

31

R35453

SCREEN - dirt, outer, lower

1шт.

Outer dirt screens and inner brush guards cannot be used together on one tractor.

1шт.

32

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

7шт.

33

195-33

WASHER,1/2"

- flat, 1/2"

14шт.

34

92-8

LOCK WASHER,1/2"

7шт.

35

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

7шт.

36

R45985

SCREEN

- brush, inner; upper on standard grilles; 2 used on heavy duty grilles

1-2шт.

Outer dirt screens and inner brush guards cannot be used together on one tractor.

1шт.

37

R45984

SCREW

SCREEN - brush, inner, lower, used on standard two-piece grille only

1шт.

Outer dirt screens and inner brush guards cannot be used together on one tractor.

1шт.

38

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

12шт.

39

39519

WASHER,10.31mm ID x 34.9mm OD x 3.57mm Thk

- flat, 3/8"

48шт.

40

131-352

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC

12шт.

41

D93753

PADLOCK

- radiator access, includes keys, if used, Includes: Ref. 42

1шт.

42

R29555

KEY

- for Master padlock only

2шт.

42

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.
