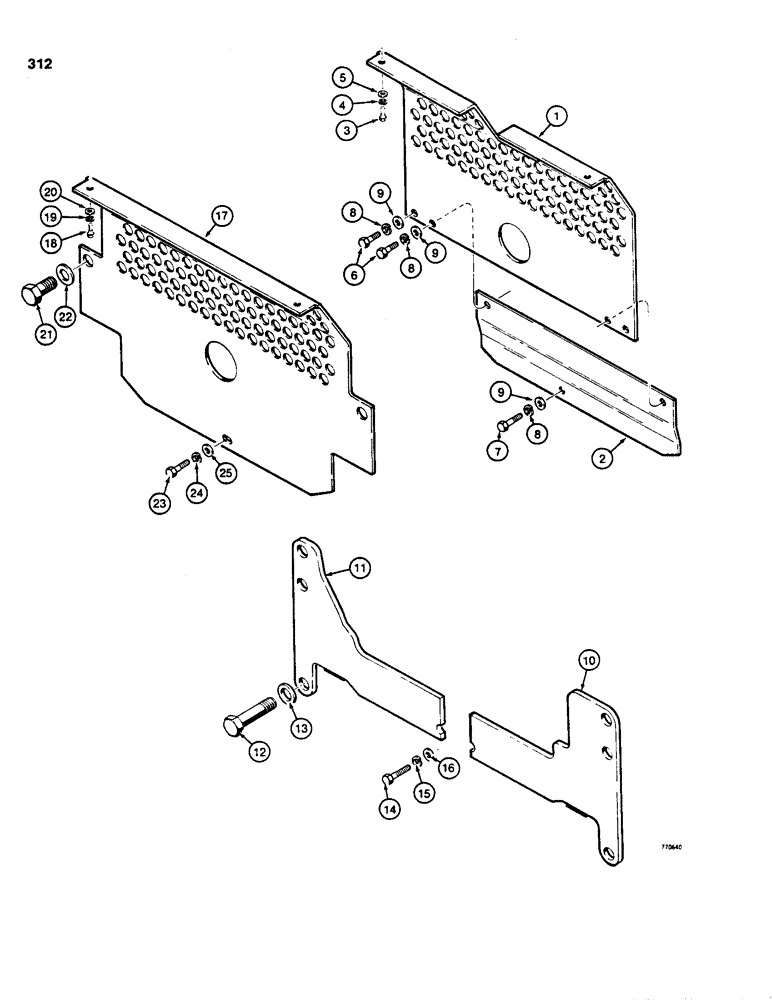

Запчасти Case 850C (312) - REAR TRANSMISSION GUARDS (05) - UPPERSTRUCTURE CHASSIS

1

R36328

GUARD

- upper, ripper models

1шт.

2

R36374

GUARD

- lower, ripper models

1шт.

3

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

4

92-6

LOCK WASHER,3/8"

2шт.

5

195-25

WASHER,3/8"

2шт.

6

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

7

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

8

92-8

LOCK WASHER,1/2"

5шт.

9

195-33

WASHER,1/2"

- flat, 1/2"

5шт.

10

R37435

GUARD

- right-hand, winch models

1шт.

11

R37437

GUARD

- left-hand, winch models

1шт.

12

13-1660

BOLT,Hex, 1" - 8 x 3-3/4", Gr 5

6шт.

13

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- hardened

6шт.

14

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex head, 1/2" - 13 NC x 1-3/4"

1шт.

15

92-8

LOCK WASHER,1/2"

1шт.

16

95-8

WASHER,1/2"

flat 1/2"

1шт.

17

R33330

GUARD

- no rear equipment

1шт.

18

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

19

92-6

LOCK WASHER,3/8"

2шт.

20

195-25

WASHER,3/8"

2шт.

21

13-1624

BOLT,Hex, 1" - 8 x 1-1/2", Gr 5, Full Thd

2шт.

22

D30196

WASHER

- hardened

2шт.

23

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

24

92-8

LOCK WASHER,1/2"

1шт.

25

195-33

WASHER,1/2"

- flat, 1/2"

1шт.
