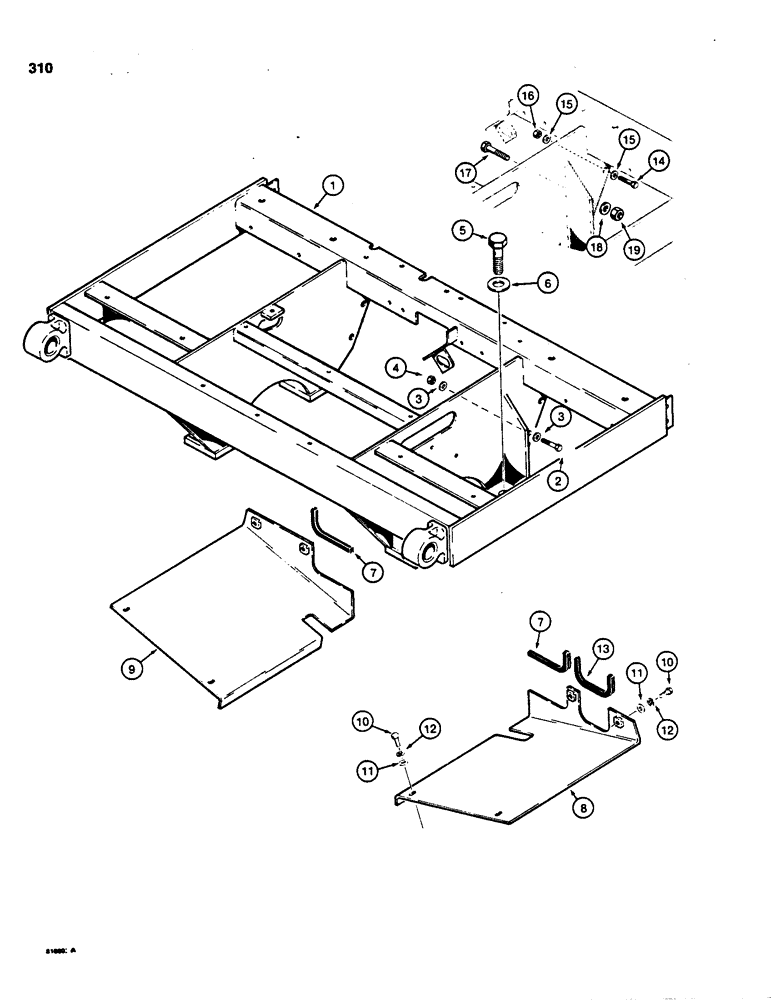

Запчасти Case 850C (310) - SEAT AND TANK FRAME (05) - UPPERSTRUCTURE CHASSIS

1

R45323

FRAME - seat and tank

1шт.

2

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

Models without backhoe Hex, 5/8"-11 x 2", G5

6шт.

Hardware used on models with backhoe.

1шт.

3

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - hardened, models without backhoe

12шт.

Hardware used on models with backhoe.

1шт.

4

25-1010

NUT,5/8"-11, G5

Models without backhoe 5/8"-11, G5

6шт.

Hardware used on models with backhoe.

1шт.

5

26-1640

BOLT,Hex, 1" - 8 x 2-1/2", Gr 8

- hex head, 1" - 8 NC x 2-1/2", grade 8, use with Loctite 242 (blue)

4шт.

6

D30196

WASHER

- hardened

4шт.

7

REF

INSTRUCTION

TRIM - edge, 7" (178 mm) long, loader models, cut from D52812 bulk

2шт.

8

R34600

COVER

GUARD - hydraulic lines, right-hand

1шт.

9

R34554

GUARD

- hydraulic lines, left-hand

1шт.

10

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

8шт.

11

195-33

WASHER,1/2"

- flat, 1/2"

8шт.

12

92-8

LOCK WASHER,1/2"

8шт.

13

REF

INSTRUCTION

TRIM - edge, 5" (127 mm) long, loader models, cut from D52812 bulk

1шт.

14

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

Upper hole, hardware used on models with backhoe Hex, 5/8"-11 x 2", G5

2шт.

15

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - flat, hardend, 5/8", upper hole, hardware used on models with backhoe

4шт.

16

25-1010

NUT,5/8"-11, G5

Upper hole, hardware used on models with backhoe 5/8"-11, G5

2шт.

17

D30593

BOLT

- special, lower two holes, hardware used on models with backhoe

4шт.

18

A57033

WASHER

- hardened, special, lower two holes, hardware used on models with backhoe

4шт.

19

25-1014

NUT,7/8"-9, G5

Lower two holes, hardware used on models with backhoe 7/8"-9, G5

4шт.

D52812

RUBBER STRIP

TRIM - edge, 83" (2108 mm) long, hardware used on models with backhoe

1шт.
