(306) - MAIN FRAME FOR DOZER MODELS

Запчасти Case 850C (306) - MAIN FRAME FOR DOZER MODELS (05) - UPPERSTRUCTURE CHASSIS

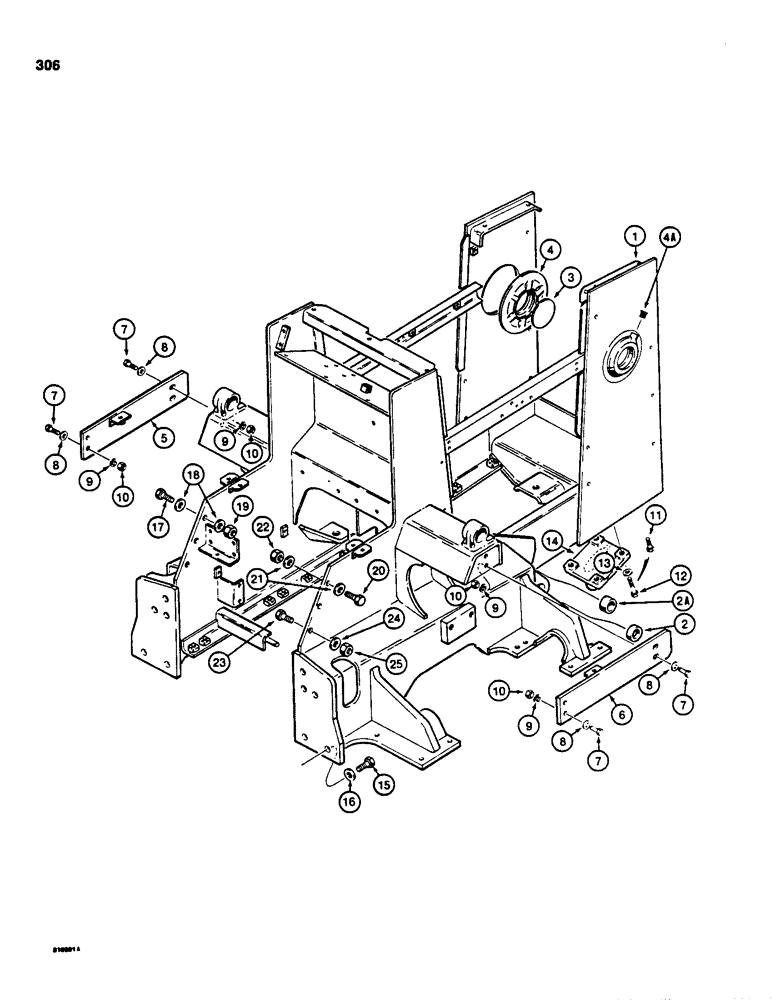

Схема запчастей Case 850C - (306) - MAIN FRAME FOR DOZER MODELS (05) - UPPERSTRUCTURE CHASSIS
21
13
9
10
9
10
9
3
8
25
4
4a
8
23
10
16
1
7
5
24
15
7
17
22
6
8
10
18
12
2
7
8
7
14
11
9
2a
19
20
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

R45934

FRAME

MAIN FRAME - 60" (1524 mm) gauge standard dozer models, Includes: Ref. 2 - 4A

1шт.

1

R44311

FRAME

MAIN FRAME - 70" (1778 mm) gauge LGP dozer models, not shown, Includes: Ref. 2 - 4A

1шт.

2

D33024

BUSHING,51.02mm ID x 63.5mm OD x 25.4mm L

- C-frame mounting, outer, 1" (25 mm) wide

2шт.

2a

D40091

BUSHING,51.02mm ID x 63.5mm OD x 47.6mm L

- C-frame mounting, inner, 1-7/8" (48 mm) wide

2шт.

3

R31950

COVER

PLATE - cover, inside trunnion

2шт.

4

R48191

RACE

- outer, lift trunnion

2шт.

4a

R32031

PLUG

- trunnion race

2шт.

5

R33300

LARGE PLATE

PLATE - left-hand

1шт.

6

R33301

LARGE PLATE

PLATE - right-hand

1шт.

7

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

8шт.

8

195-33

WASHER,1/2"

- flat, 1/2"

8шт.

9

92-8

LOCK WASHER,1/2"

8шт.

10

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

8шт.

11

13-1220

BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 5

Used without pull hook Hex, 3/4"-10 x 1 1/4", G5

4шт.

12

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

- hex head, 3/4" - 10 NC x 2-1/2", used with pull hook

4шт.

13

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened, 3/4"

4шт.

14

71671

PLATE ASSY.

PULL HOOK - front, if used

1шт.

15

26-1640

BOLT,Hex, 1" - 8 x 2-1/2", Gr 8

- hex head, 1" - 8 NC x 2-1/2", grade 8, use with Loctite 242 (blue)

10шт.

16

D30196

WASHER

- hardened

10шт.

17

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

Models without backhoe Hex, 5/8"-11 x 2", G5

6шт.

18

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - flat, hardened, 5/8", models without backhoe

12шт.

19

25-1010

NUT,5/8"-11, G5

Models without backhoe 5/8"-11, G5

6шт.

20

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

Upper hole, models with backhoe Hex, 5/8"-11 x 2", G5

2шт.

21

R53567

WASHER - flat, hardened, 5/8", upper hole, models with backhoe

4шт.

22

25-1010

NUT,5/8"-11, G5

Upper hole, models with backhoe 5/8"-11, G5

2шт.

23

D30593

BOLT

- special, lower two holes, models with backhoe

4шт.

24

A57033

WASHER

- hardened, special, lower two holes, models with backhoe

4шт.

25

25-1014

NUT,7/8"-9, G5

Lower two holes, models with backhoe 7/8"-9, G5

4шт.

THERE ARE SEVERAL CAGE NUTS WELDED TO THIS FRAME. THE 1/2" CAGE IS 70996, THE 1/2" NUT IS 25-288. THE 5/8" CAGE IS D35240, THE 5/8" NUT IS 25-2810.

1шт.
