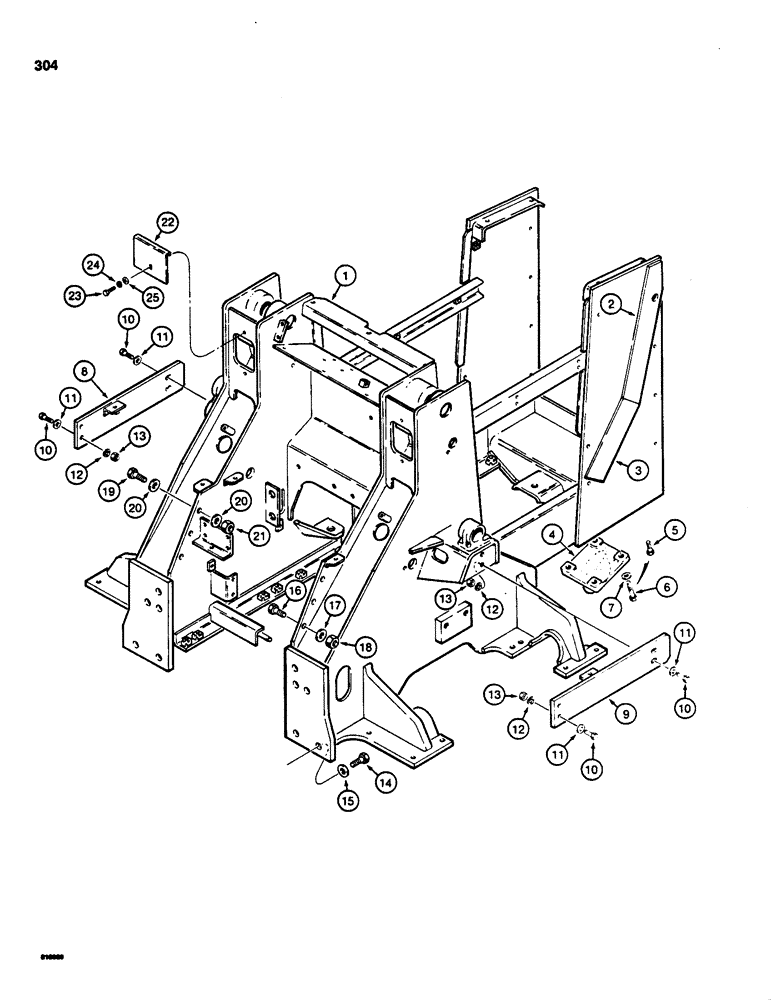

Запчасти Case 850C (304) - MAIN FRAME FOR LOADER MODELS (05) - UPPERSTRUCTURE CHASSIS

1

R45933

FRAME

MAIN FRAME - loader models, Includes: Ref. 2 and 3

1шт.

2

R34815

PLATE

WEAR PLATE - upper

2шт.

3

R34816

PLATE

WEAR PLATE - lower

2шт.

4

71671

PLATE ASSY.

PULL HOOK - front, if used

1шт.

5

13-1220

BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 5

Used without pull hook Hex, 3/4"-10 x 1 1/4", G5

4шт.

6

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

Used with pull hook Hex, 3/4"-10 x 2 1/4", G5

4шт.

7

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened, 3/4"

4шт.

8

R33300

LARGE PLATE

PLATE - left-hand

1шт.

9

R33301

LARGE PLATE

PLATE - right-hand

1шт.

10

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

8шт.

11

195-33

WASHER,1/2"

- flat, 1/2"

8шт.

12

92-8

LOCK WASHER,1/2"

8шт.

13

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

8шт.

14

26-1640

BOLT,Hex, 1" - 8 x 2-1/2", Gr 8

- hex head, 1" - 8 NC x 2-1/2", grade 8, use with Loctite 242 (blue)

10шт.

15

D30196

WASHER

- hardened

10шт.

16

D30593

BOLT

- special, used on backhoe models only

4шт.

17

A57033

WASHER

- special, used on backhoe models only

4шт.

18

25-1014

NUT,7/8"-9, G5

Used on backhoe models only 7/8"-9, G5

4шт.

19

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

6шт.

20

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - hardened

12шт.

21

25-1010

NUT,5/8"-11, G5

6шт.

22

D88787

PANEL - filler, used on cab models only

2шт.

23

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

24

92-6

LOCK WASHER,3/8"

2шт.

25

195-25

WASHER,3/8"

2шт.
