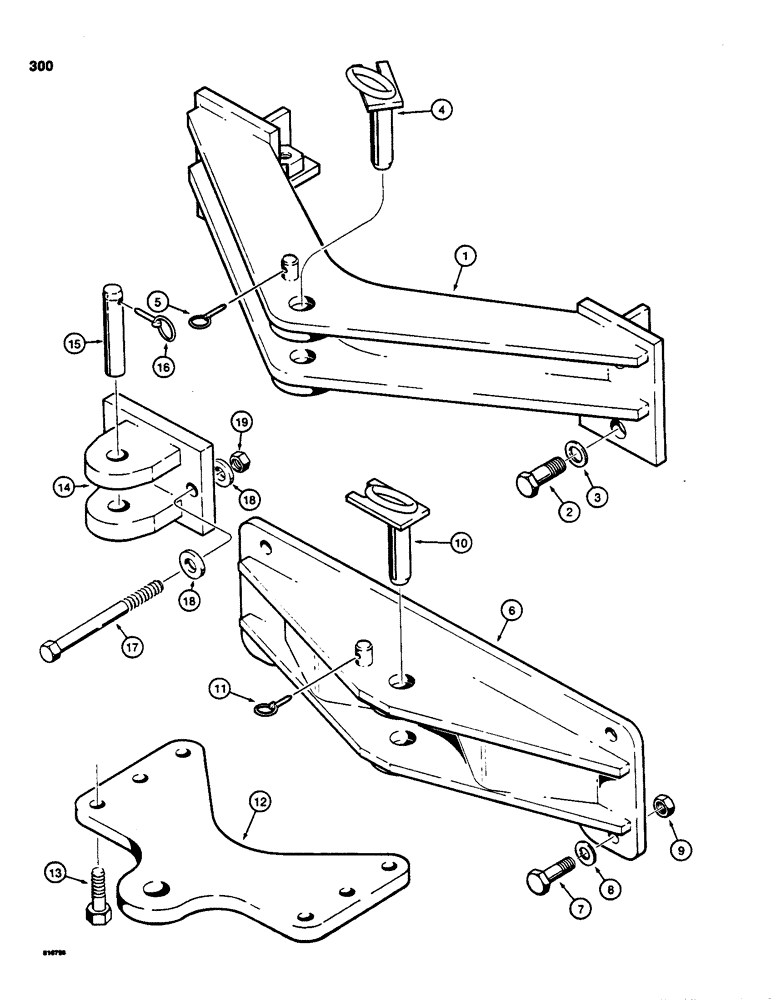

Запчасти Case 850C (300) - DRAWBARS, NO REAR EQUIPMENT (05) - UPPERSTRUCTURE CHASSIS

1

R43751

DRAWBAR

- dozer or drawbar models, used with no rear equipment

1шт.

2

13-1640

BOLT,Hex, 1" - 8 x 2-1/2", Gr 5, Full Thd

4шт.

3

D30196

WASHER

- hardened, 1"

4шт.

4

R33340

PIN

- drawbar

1шт.

5

A30338

PIN

- self-locking

1шт.

6

R43752

DRAWBAR

- used on ripper models

1шт.

7

13-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Ripper Hex, 3/4"-10 x 2 1/2", G5

4шт.

8

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened, 3/4", ripper

4шт.

9

25-1012

NUT,3/4"-10, G5

Ripper 3/4"-10, G5

4шт.

10

R33340

PIN

- drawbar, ripper

1шт.

11

A30338

PIN

- self-locking, ripper

1шт.

12

R37324

DRAWBAR

- used on winch models

1шт.

13

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

Winch Hex, 3/4"-10 x 2", G5

6шт.

14

R39904

DRAWBAR

- loader models with rear counterweight, or no rear equipment

1шт.

15

D35202

PIN

- drawbar, loader models with rear counterweight and or no rear equipment

1шт.

16

D33805

PIN

- self-locking, loader models with rear counterweight and or no rear equipment

1шт.

17

13-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 5

Loader models with rear counterweight and or no rear equipment Hex, 3/4"-10 x 6", G5

2шт.

18

T53681

WASHER,19.84mm ID x 44.5mm OD x 5.559mm Thk

- flat, hardened, loader models with rear counterweight and or no rear equipment

4шт.

19

25-1012

NUT,3/4"-10, G5

Loader models with rear counterweight and or no rear equipment 3/4"-10, G5

2шт.
