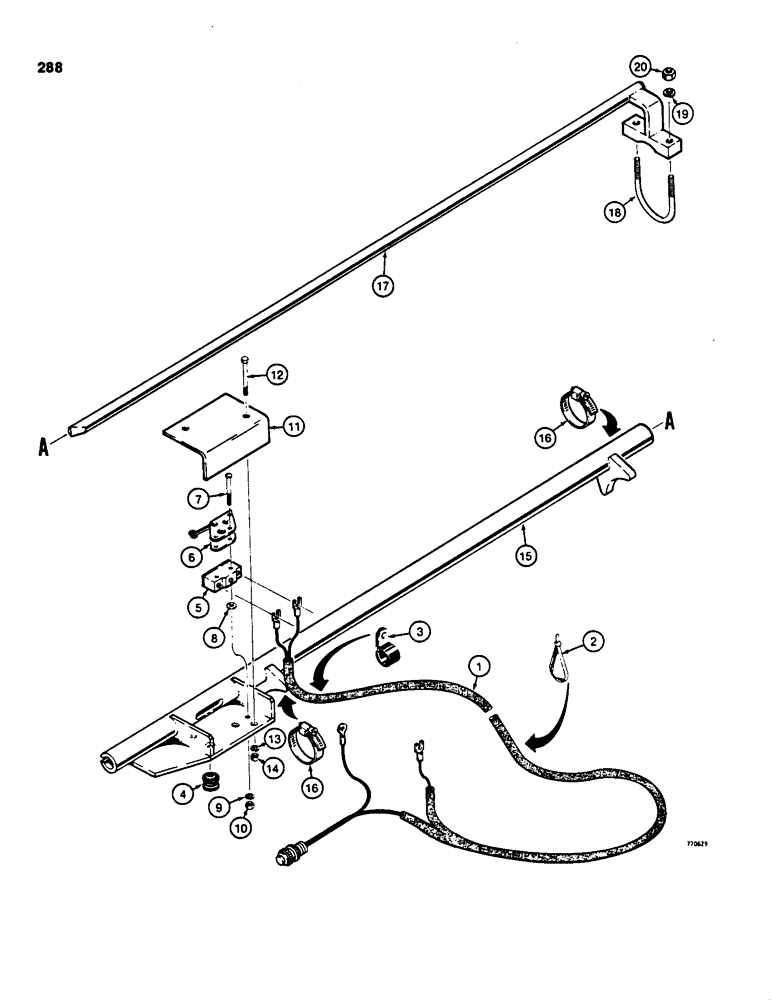

Запчасти Case 850C (288) - LOADER RETURN-TO-DIG (05) - UPPERSTRUCTURE CHASSIS

1

R37444

HARNESS

- wire, to magnetic detent section of control valve

1шт.

2

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE STRAP - harness

1шт.

3

49851

SHIELD

- harness, at dump cylinder

1шт.

4

A23870

GROMMET

- harness

1шт.

5

R33015

SWITCH

- return-to-dig

1шт.

6

R33016

BRACKET

ACTUATOR - switch

1шт.

7

169-143

SCREW,Sl Fil Hd, #6 - 32 x 1 1/2"

- slotted, no 6 - 32 NC x 1-1/2"

2шт.

8

195-507

WASHER,#6

- flat, no. 6

1шт.

9

193-89

LOCK WASHER,Ext-Int Tooth, #6

WASHER, LOCK, Ext-Int Tooth, #6

2шт.

10

129-15

NUT,#6-32

2шт.

11

R38702

LARGE PLATE

COVER - switch

1шт.

12

13-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

2шт.

13

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

14

25-104

NUT,1/4"-20, G5

2шт.

15

R38856

TUBE

- guide

1шт.

16

214-182

HOSE CLAMP,4-3/4" - 5-5/8", HD Worm

CLAMP - adjustable, tube to dump cylinder

2шт.

Can also use 214-181 or 214-183

1шт.

17

R38861

ROD

- slide

1шт.

18

A31210

BOLT

U-BOLT -, Serial Range: rod-cylinder

1шт.

19

92-6

LOCK WASHER,3/8"

2шт.

20

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.
