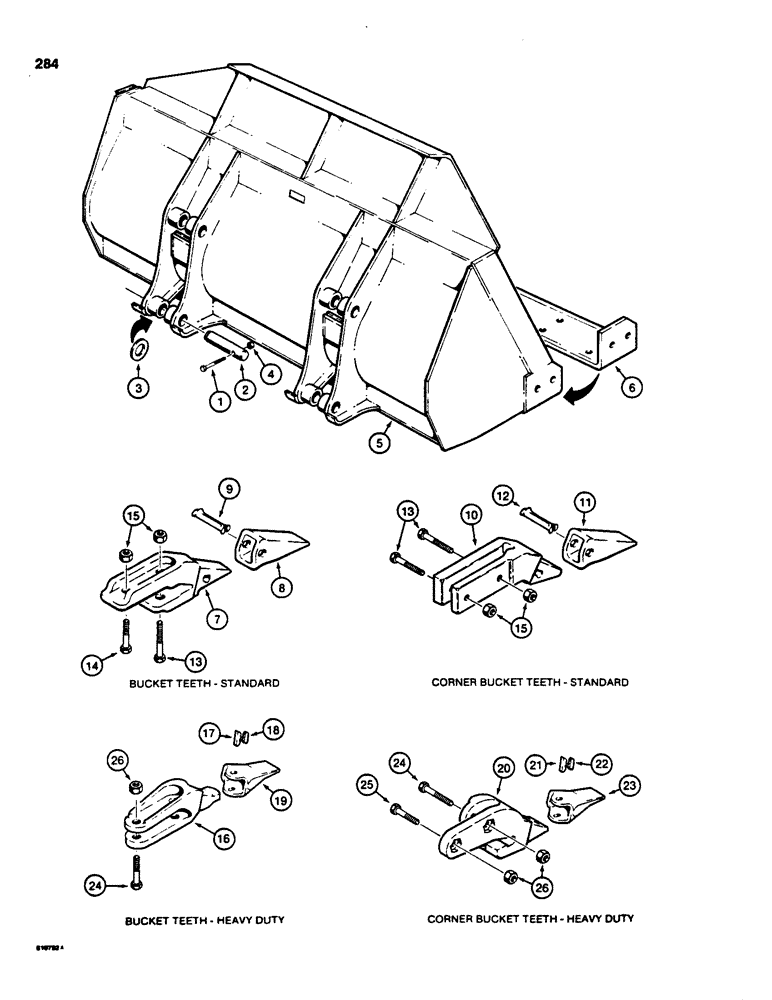

Запчасти Case 850C (284) - LOADER BUCKET (05) - UPPERSTRUCTURE CHASSIS

1

26-1076

BOLT,Hex, 5/8" - 11 x 4-3/4", Gr 8

- hex head, 5/8" - 11 NC x 4-3/4", grade 8

4шт.

2

R48920

PIN,50.67mm OD x 182.88mm L

- mounting, bucket

4шт.

3

D37449

SHIM,.0747" Thk

Washer - spacer, if required .0747" Thk

1шт.

4

131-656

LOCK NUT,5/8"-11, GB

NUT - hex, self-locking, 5/8" - 11 NC

4шт.

R45574

BUCKET ASSEMBLY - 1-1/2 cu yd (1.1 cu metre), machinery item, see figure 1 for ordering, Includes: Ref. 5 and 6

1шт.

5

NSS

NOT SOLD SEPARAT

BUCKET - loader

1шт.

6

R45463

WASHER

CUTTING EDGE - bucket

1шт.

R33528

TOOTH

ASSEMBLY - standard, bucket, Includes: Ref. 7 - 9

6шт.

7

NSS

NOT SOLD SEPARAT

SHANK - tooth, standard bucket

1шт.

8

L55608

POINT

- tooth, standard bucket

1шт.

9

D39448

PIN

- flex, standard bucket teeth

1шт.

R46454

TOOTH

ASSEMBLY - corner, right-hand, not shown, standard bucket, Includes: Ref. 10 - 12

1шт.

R46455

TOOTH

ASSEMBLY - corner, left-hand, standard bucket, Includes: Ref. 10 - 12

1шт.

10

NSS

NOT SOLD SEPARAT

SHANK - R46454 and R46455 tooth assemblies, left-hand shown, standard bucket teeth

1шт.

11

L55608

POINT

- tooth, standard bucket

1шт.

12

D39448

PIN

- flex, standard bucket teeth

1шт.

13

26-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 8

- hex head, 5/8" - 11 NC x 3", grade 8, standard bucket teeth

10шт.

14

26-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

- hex head, 5/8" - 11 NC x 2-1/2", grade 8, standard bucket teeth

6шт.

15

131-1137

NUT,5/8"-11, GC

- hex, self-locking, 5/8" - 11 NC, standard bucket teeth

16шт.

R35316

TOOTH

ASSEMBLY - heavy duty bucket, Includes: Ref. 16 - 19

6шт.

16

NSS

NOT SOLD SEPARAT

SHANK - tooth, heavy duty bucket

1шт.

17

R35318

PIN

- tooth, heavy duty bucket

1шт.

18

R35319

LOCK ASSY

LOCK - pin, heavy duty bucket teeth

1шт.

19

R38572

TOOTH

POINT - tooth, heavy duty bucket

1шт.

R45605

TOOTH

ASSEMBLY - corner, right-hand, not shown, heavy duty bucket, Includes: Ref. 20 - 23

1шт.

R45606

TOOTH

ASSEMBLY - corner, left-hand, heavy duty bucket, Includes: Ref. 20 - 23

1шт.

20

NSS

NOT SOLD SEPARAT

SHANK - R45605 and R45606 tooth assemblies, left-hand, heavy duty bucket

1шт.

21

R35318

PIN

- tooth, heavy duty bucket

1шт.

22

R35319

LOCK ASSY

LOCK - pin, heavy duty bucket teeth

1шт.

23

R38572

TOOTH

POINT - tooth, heavy duty bucket

1шт.

24

26-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 8

- hex head, 5/8" - 11 NC x 2-3/4", grade 8, heavy duty bucket teeth

14шт.

25

26-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

- hex head, 5/8" - 11 NC x 2-1/4", grade 8, heavy duty bucket teeth

2шт.

26

131-1137

NUT,5/8"-11, GC

- hex, self-locking, 5/8" - 11 NC, heavy duty bucket teeth

16шт.
