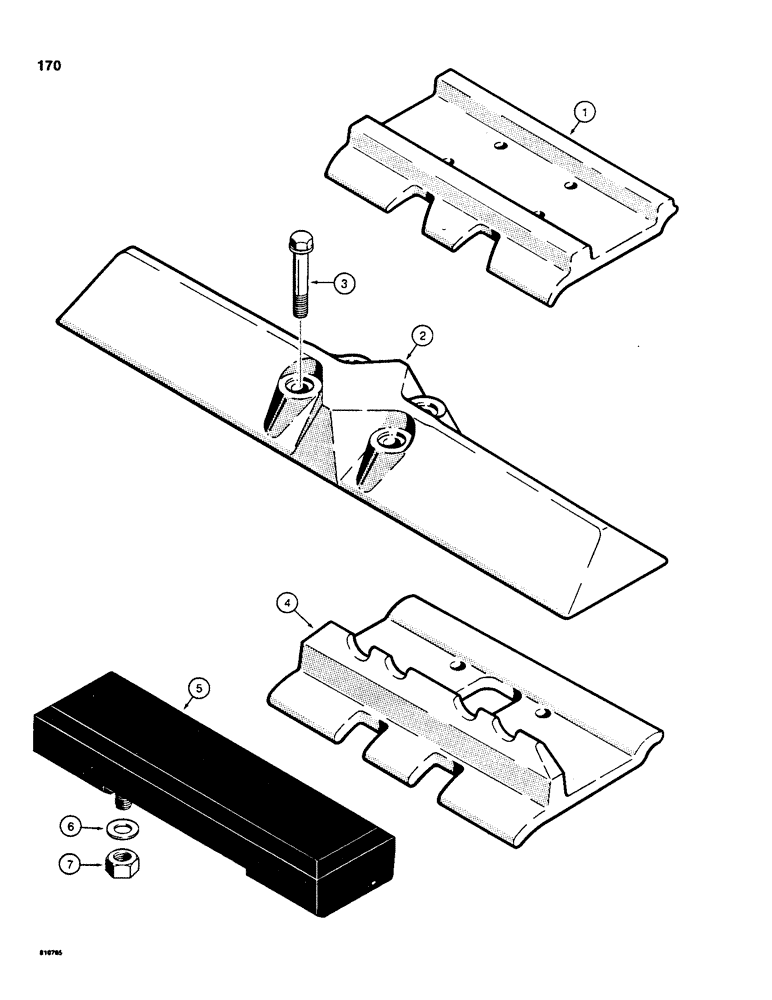

Запчасти Case 850C (170) - TRACK SHOES, DOUBLE GROUSER - CLOSED, LOADER MODELS ONLY (04) - UNDERCARRIAGE

1

R40969

TRACK SHOE

- 15" (381 mm)

76шт.

2

R44062

TRACK SHOE

- self-cleaning, 29" (737 mm), single grouser 70" (1778 mm) guage LGP dozer models only

76шт.

3

R44189

BOLT

BOLT - special, single grouser self cleaning 70" (1778 mm) guage LGP dozer models only

304шт.

Nut is R57375

1шт.

4

R25959

TRACK SHOE

- ice, 15" (381 mm), single grouser 60" (1524 mm) guage standard dozer & drawbar models

76шт.

5

R43447

SHOE

PAD - rubber, with studs, for track shoes

76шт.

Should only be ordered as a replacement. If machine is not equipped with rubber pads, the grousers will not accomodate the pad.

1шт.

6

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - hardened, rubber pads for track shoes

152шт.

7

25-1010

NUT,5/8"-11, G5

Rubber pads for track shoes 5/8"-11, G5

152шт.
