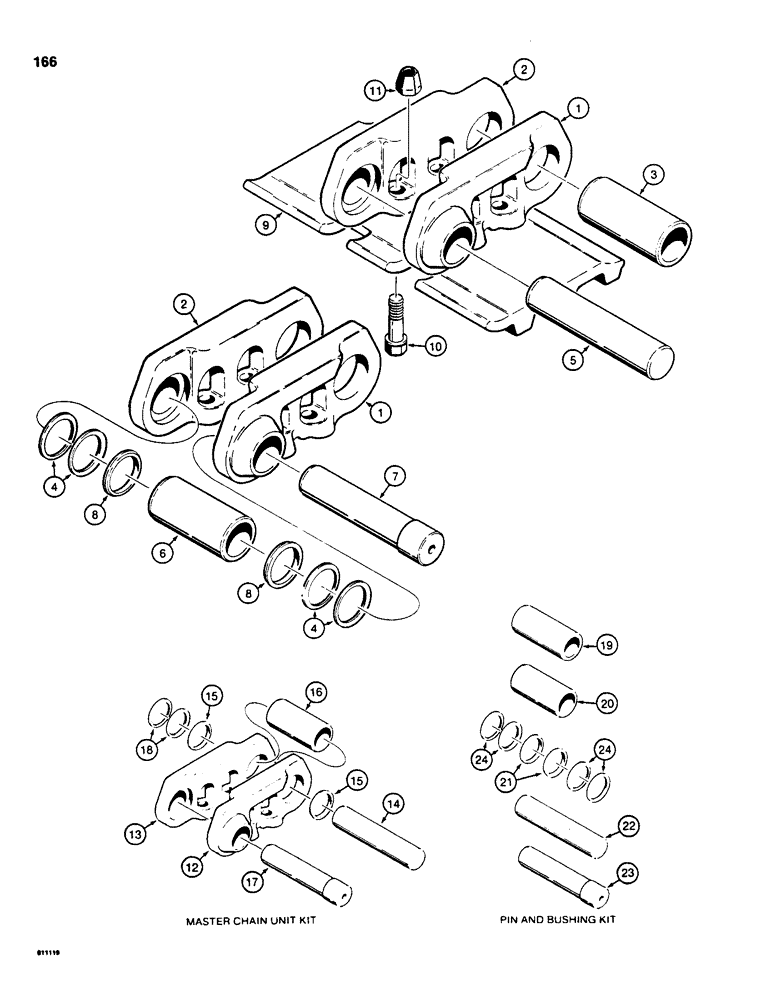

Запчасти Case 850C (166) - TRACK CHAIN (04) - UNDERCARRIAGE

R41054

CHAIN (AG)

CHAIN ASSEMBLY - track, 38 unit, use one per side, if used, Includes: Ref. 1 - 8

2шт.

R43164

CHAIN (AG)

CHAIN ASSEMBLY - track, 20 unit, if used, Includes: Ref. 1 - 8

2шт.

One 18 unit chain and one 20 unit chain are required on each side of the machine. For bolts used with LGP dozer self-cleaning track shoes, see figure 170.

1шт.

R43162

CHAIN (AG)

CHAIN ASSEMBLY - track, 18 unit, if used, Includes: Ref. 1 - 8

2шт.

One 18 unit chain and one 20 unit chain are required on each side of the machine. For bolts used with LGP dozer self-cleaning track shoes, see figure 170.

1шт.

1

R41053

LINK

Right-Hand; Quantity is 18, 20, or 38 Required

1шт.

2

R41052

LINK

Left-Hand; Quantity is 18, 20, or 38 Required

1шт.

3

D45075

SLEEVE,35.23mm ID x 50.77mm OD x 115.16mm L

Long; Quantity is 17, 19, or 37 Required

1шт.

4

D45076

BELLEVILLE SPRING

Pin Mounting; Quantity is 72, 80, or 152 Required

1шт.

5

R14893

PIN,34.9mm OD x 176.22mm L

Standard; Quantity is 17, 19, or 37 Required

1шт.

5

D32164

PIN

Service Option, .003 Oversize (0.076 mm); Quantity is 17, 19, or 37 Required

1шт.

6

R14896

BUSHING,35.18mm ID x 50.72mm OD x 105.05mm L

- master, short

1шт.

7

D36511

PIN

- master

1шт.

7

D43541

PIN

- master, service option, .003" oversize (0.076 mm)

1шт.

8

D45272

BUSHING

- spacer

2шт.

9

REF

INSTRUCTION

TRACK SHOE - see figures 168 and 170

76шт.

10

D48004

FLANGE BOLT

BOLT - special

304шт.

For bolts used with LGP dozer self-cleaning track shoes, see figure 170.

1шт.

11

R43173

NUT

- lock, special (replaces R17415)

304шт.

R43165

LINK

KIT - master chain unit, Includes: Ref. 12 - 18

4шт.

12

R41053

LINK

- track, right-hand, master chain unit kit

1шт.

13

R41052

LINK

- track, left-hand, master chain unit kit

1шт.

14

R14893

PIN,34.9mm OD x 176.22mm L

- track, standard, master chain unit kit

1шт.

15

D45272

BUSHING

- spacer, master chain unit kit

2шт.

16

R14896

BUSHING,35.18mm ID x 50.72mm OD x 105.05mm L

- master, short, chain unit kit

1шт.

17

D36511

PIN

- master chain unit kit

1шт.

18

D45076

BELLEVILLE SPRING

- pin mounting, master chain unit kit

8шт.

D45349

KIT

- pin and bushing, Includes: Ref. 19 - 24

1шт.

19

D45075

SLEEVE,35.23mm ID x 50.77mm OD x 115.16mm L

- track, long, pin kit

76шт.

20

R14896

BUSHING,35.18mm ID x 50.72mm OD x 105.05mm L

- master, short, pin kit

4шт.

21

D45272

BUSHING

- spacer, pin kit

8шт.

22

D32164

PIN

- service option, .003" oversize (0.076 mm), bushing kit

76шт.

23

D43541

PIN

- master, .003" oversize (0.076 mm), bushing kit

4шт.

24

D45076

BELLEVILLE SPRING

- pin mounting, bushing kit

320шт.
