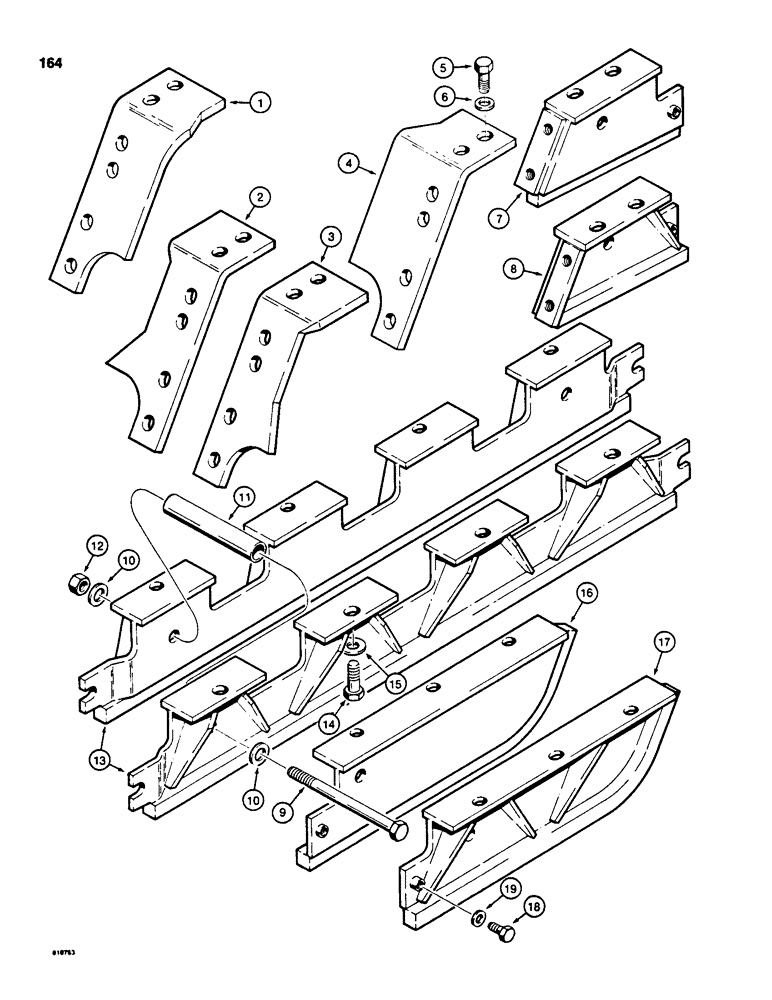

Запчасти Case 850C (164) - TRACK GUIDES (04) - UNDERCARRIAGE

1

R32702

COVER

- end, left-hand track, outer

1шт.

2

R44467

COVER

- end, left-hand track, inner

1шт.

3

R44468

COVER

- end, right-hand track, inner

1шт.

4

R32703

COVER

- end, right-hand track, outer

1шт.

5

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

Use with Loctite 242 (blue) Hex, 5/8"-11 x 1 1/2", G5, Full Thd

24шт.

6

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - hardened, 5/8"

24шт.

7

R44404

GUARD

TRACK GUIDE - rear, left-hand

2шт.

8

R44405

GUARD

TRACK GUIDE - rear, right-hand

2шт.

9

13-12152

BOLT,Hex, 3/4" - 10 x 9-1/2", Gr 5

- hex head, 3/4" - 10 NC x 9-1/2"

8шт.

10

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened, 3/4"

16шт.

11

D35698

SPACER

- track guides

8шт.

12

131-657

LOCK NUT,3/4"-10, GB

NUT - hex, self-locking, 3/4" - 10 NC

8шт.

13

R44400

GUARD

TRACK GUIDE - center

4шт.

14

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

Use with Loctite 242 (blue) Hex, 3/4"-10 x 1 1/2", G5

36шт.

15

T53681

WASHER,19.84mm ID x 44.5mm OD x 5.559mm Thk

- hardened, 3/4"

36шт.

16

R44396

GUARD

TRACK GUIDE - front, left-hand

2шт.

17

R44397

GUARD

TRACK GUIDE - front, right-hand

2шт.

18

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Use with Loctite 242 (blue) Hex, 1/2"-13 x 1 1/4", G5, Full Thd

8шт.

19

D64050

WASHER

- hardened, 1/2"

8шт.
