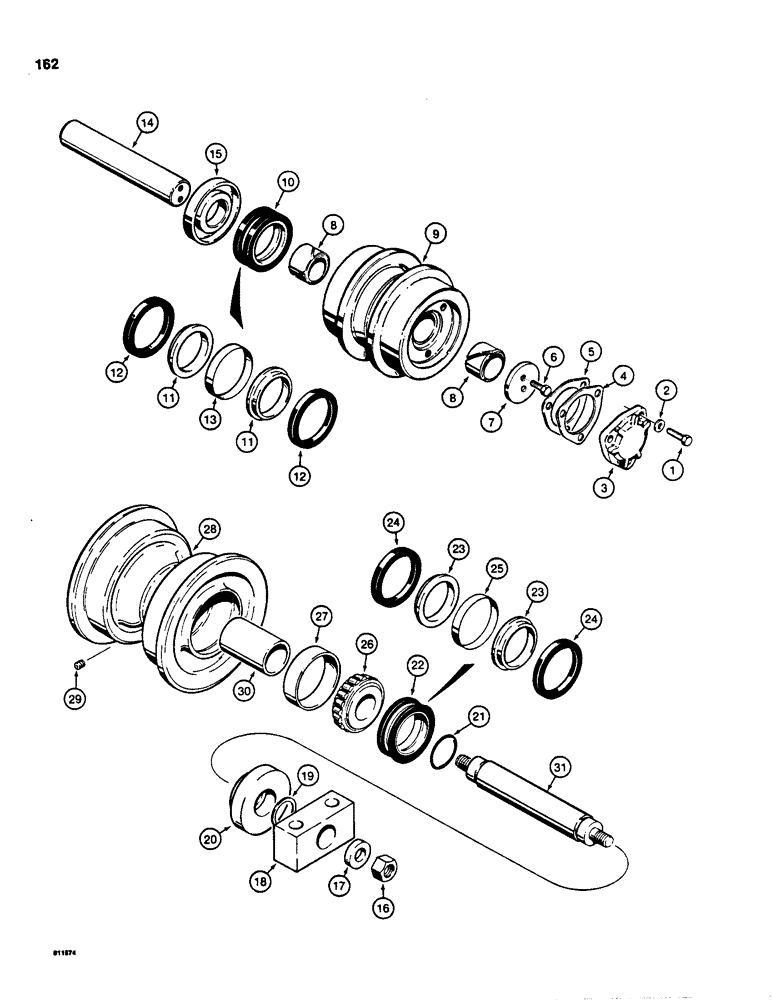

Запчасти Case 850C (162) - D48684 TRACK CARRIER ROLLER, FOR IDENTIFICATION - SEE ITEM 3 OF ILLUSTRATION (04) - UNDERCARRIAGE

D48684

ROLLER

CARRIER ROLLER ASSEMBLY - track, asembly not available, order R33965 carrier roller, parts list figure 160, Includes: Ref. 1 - 15

2шт.

See figure 160 for carrier roller mounting

1шт.

1

26-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

3шт.

2

D35288

WASHER

- copper

1шт.

3

R29288

COVER ASSY

CAP - roller

1шт.

4

D30384

SHIM,.010" Thk

(Brown) .010" Thk

1шт.

5

D30383

SHIM,.005" Thk

(013 mm), Blue .005" Thk

1шт.

6

26-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

- hex head, 3/8" - 16 NC x 3/4", G8

2шт.

7

D30382

WASHER

PLATE - retainer

1шт.

8

D46396

BUSHING,44.51mm ID x 49.23mm OD x 31.75mm L

- split

2шт.

9

D49945

HUB CAP

CARRIER ROLLER - track

1шт.

10

R39273

SEAL

FACE SEAL - carrier roller, Includes: Ref. 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

BODY - seal, split

2шт.

D36826

SEAL KIT

KIT - seal repair, Includes: Ref. 12 and 13

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL - rubber

2шт.

13

NSS

NOT SOLD SEPARAT

RETAINER - plastic

1шт.

14

D49100

SHAFT

- roller

1шт.

15

D35265

COLLAR

RETAINER - face seal

1шт.

R24102

ROLLER

TRACK ROLLER ASSEMBLY - assembly not available, order R33552, for id see ref 18 of illustration, track roller, parts list figure 160, Includes: Ref. 16 - 31

10шт.

16

280375

NUT,3/4"-10, GC

NUT - hex, self-locking, 3/4" - 10 NC, R24102 track roller , for id see ref 18 of illustration

2шт.

17

D44182

WASHER

- special, R24102 track roller, for id see ref 18 of illustration

2шт.

18

D36409

BLOCK

- R24102 track roller, for id see ref 18 of illustration

2шт.

19

D31329

SHIM,.005" Thk

(013 mm), R24102 track roller, for ID, See Ref 18 of illustration .005" Thk

1шт.

20

D45502

BUSHING

- R24102 track roller, for id see ref 18 of illustration

2шт.

21

D27878

O-RING,1.609" ID x 1.887" OD

- shaft, R24102 track roller, for id see ref 18 of illustration

2шт.

22

R39273

SEAL

FACE SEAL - R24102 track roller, for id see ref 18 of illustration, Includes: Ref. 23 - 25

2шт.

23

NSS

NOT SOLD SEPARAT

BODY - seal, split, R24102 track roller, for id see ref 18 of illustration

2шт.

D36826

SEAL KIT

KIT - seal repair, R24102 track roller, for id see ref 18 of illustration, Includes: Ref. 24 and 25

1шт.

24

NSS

NOT SOLD SEPARAT

SEAL - rubber, R24102 track roller, for id see ref 18 of illustration

2шт.

25

NSS

NOT SOLD SEPARAT

RETAINER - plastic, R24102 track roller, for id see ref 18 of illustration

1шт.

26

D44321

ROLLER BEARING,1.625" ID x 1.1875"

- R24102 track roller, for id see ref 18 of illustration

2шт.

27

D44322

BEARING CUP,3.375" OD x 0.9375"

CUP - roller bearing, R24102 track, for id see ref 18 of illustration

2шт.

28

R24100

ROLLER

- single flange, R24102 track, for id see ref 18 of illustration

1шт.

29

221-841

PLUG

- hex, socket head, 1/4" NPT, R24102 track roller, for id see ref 18 of illustration

1шт.

30

D44183

SPACER

BUSHING - roller shaft, R24102 track, for id see ref 18 of illustration

1шт.

31

D44184

SHAFT

- R24102 track roller, for id see ref 18 of illustration

1шт.
