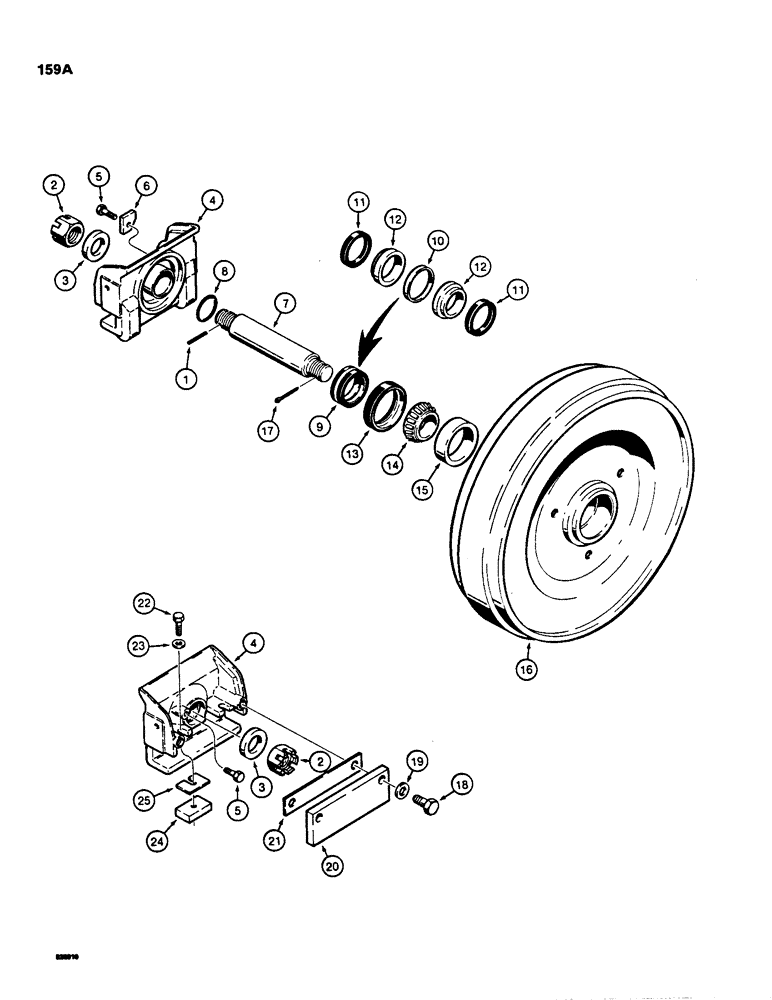

Запчасти Case 850C (159A) - R45010 IDLER AND MOUNTING (04) - UNDERCARRIAGE

R45010

FRONT IDLER

IDLER ASSEMBLY - track, Includes: Refs. 1 - 13

2шт.

1

138-218

LOCK PIN,5/16" x 1 7/8", Slotted

PIN, , Replaces cotter pin used in some idler assemblies 5/16" x 1 7/8", Slotted

1шт.

2

25-1320

SLOTTED NUT,1 1/4"-12, G5

2шт.

3

D43745

WASHER

- hardened

2шт.

4

R44999

BRACKET

- idler assembly

2шт.

5

13-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

2шт.

6

R46823

PLATE

TAB - locking

1шт.

7

R46824

SHAFT

- idler, must also replace 138-218 roll pin, item 1

1шт.

8

F62076

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

- idler shaft

2шт.

9

R39273

SEAL

FACE SEAL ASSEMBLY - idler assembly, Includes: Refs. 10 - 12

2шт.

10

NSS

NOT SOLD SEPARAT

BODY - face seal

1шт.

D36826

SEAL KIT

KIT - face seal repair, Includes: Refs. 11 and 12

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL - rubber

2шт.

12

NSS

NOT SOLD SEPARAT

RETAINER - plastic

2шт.

13

R34742

SEAL

ADAPTER - seal

2шт.

14

51200231

BEARING, CONE,50.8mm ID x 30.96mm W

TAPERED ROLLER BEARING - idler assembly, Includes: Refs. 15 - 17

2шт.

15

A27732

BEARING CUP

CUP - tapered roller bearing

2шт.

16

D48952

FRONT IDLER

WHEEL - idler assembly

1шт.

17

132-155

PIN

COTTER PIN - 1/4" x 2-1/8"

1шт.

18

13-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

8шт.

19

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened, 3/4"

8шт.

20

R45570

PLATE

- guide, R45010 idler only

4шт.

21

D35268

SHIM,1/32" Thk

Guide plate 1/32" Thk

1шт.

22

26-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

8шт.

23

R24323

WASHER

- hardened, 1/2"

8шт.

24

R45568

BLOCK

SPACER - idler, top

8шт.

25

R45569

SHIM

- idler spacer

1шт.
