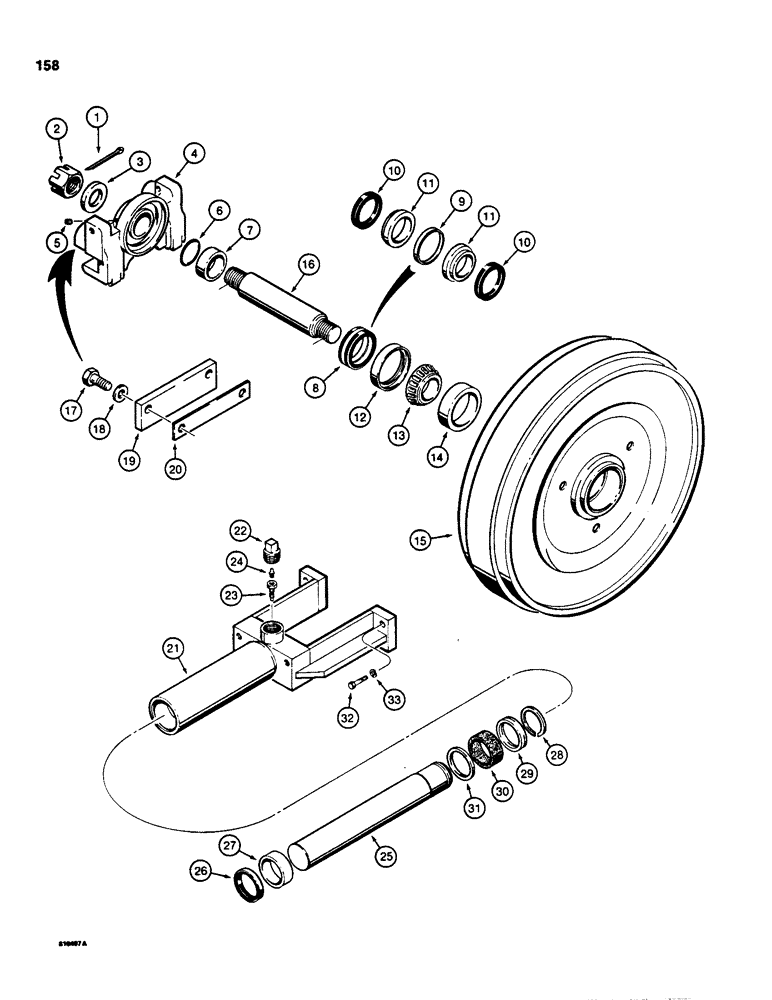

Запчасти Case 850C (158) - R35400 IDLER, IDLER MOUNTING, AND TRACK ADJUSTER (04) - UNDERCARRIAGE

R35400

FRONT IDLER

IDLER ASSEMBLY - track, no longer available, order R45010 idler assembly (see figure 159A), (8) 26-820 bolts, (8) R24323 washers, (8) R45568 spacers, (32) R45569 shims, and (2) R45570 spacers, Includes: Refs. 1 - 16

2шт.

1

132-156

PIN

COTTER PIN - 1/4" x 2-1/4"

2шт.

2

25-1324

SLOTTED NUT,1 1/2"-12, G5

NUT - hex, slotted, 1-1/2" - 12 NF

2шт.

3

D36065

WASHER

- hardened

2шт.

4

R44589

HOUSING

BRACKET - idler

2шт.

5

221-841

PLUG

- square socket, 1/4" NPT

2шт.

6

F62076

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

- idler shaft

2шт.

7

D48681

SPACER

- idler

2шт.

8

R39273

SEAL

FACE SEAL - idler, Includes: Refs. 9 - 11

2шт.

9

NSS

NOT SOLD SEPARAT

BODY - face seal

1шт.

D36826

SEAL KIT

KIT - face seal repair, Includes: Refs. 10 and 11

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - rubber

2шт.

11

NSS

NOT SOLD SEPARAT

RETAINER - plastic

2шт.

12

D36069

RING

RETAINING RING - seal

2шт.

13

NLS

NO LONGER SERVICED

TAPERED ROLLER BEARING - idler

2шт.

14

A27732

BEARING CUP

CUP - tapered roller bearing

2шт.

15

D48952

FRONT IDLER

IDLER - track

1шт.

16

D36068

SHAFT

- idler, may be replaced with (1) R46824 shaft, (2) 25-1320 castle nuts, (2) D43745 washers, (1) 132-155 cotter pin and (1) 138-218 roll pin, see figure 159A

1шт.

17

13-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

8шт.

18

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened, 3/4"

8шт.

19

R33939

PLATE

- guide, R35400 idler only

4шт.

20

D35268

SHIM,1/32" Thk

Guide plate (0.762 mm) 1/32" Thk

1шт.

R32467

ADJUSTER

TRACK ADJUSTER ASSEMBLY - slide, Includes: Refs. 21 - 31

2шт.

21

R31976

YOKE

AND TUBE - track adjuster

1шт.

22

221-29

DRAIN PLUG,Sq Hd, 1 1/4"-11 1/2 NPTF

1шт.

23

D35287

CHECK VALVE,5/8" - 18

CHECK BALL ASSEMBLY - track adjuster

1шт.

24

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

25

R31983

ROD

- piston

1шт.

26

D95149

PACKING RING,60.24mm ID x 73.05mm OD x 7.92mm Thk

WIPER - rod

1шт.

27

D30374

RING,60.43mm ID x 73.15mm OD x 25.4mm L

- wiper

1шт.

28

A32413

SNAP RING,#212, 1.997", Ext

- rod

1шт.

29

R25706

SEAL,53.9mm ID x 66.75mm OD x 10.69mm Thk

- rod

1шт.

30

R25663

BUSHING,53.98mm ID x 66.62mm OD x 25.4mm L

SEAL - bushing

1шт.

31

R30202

RING,54.101mm ID x 65.1mm OD x 5.08mm Thk

BACKUP RING - seal

1шт.

32

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Use with Loctite 242 (blue) Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

33

92-8

LOCK WASHER,1/2"

4шт.
