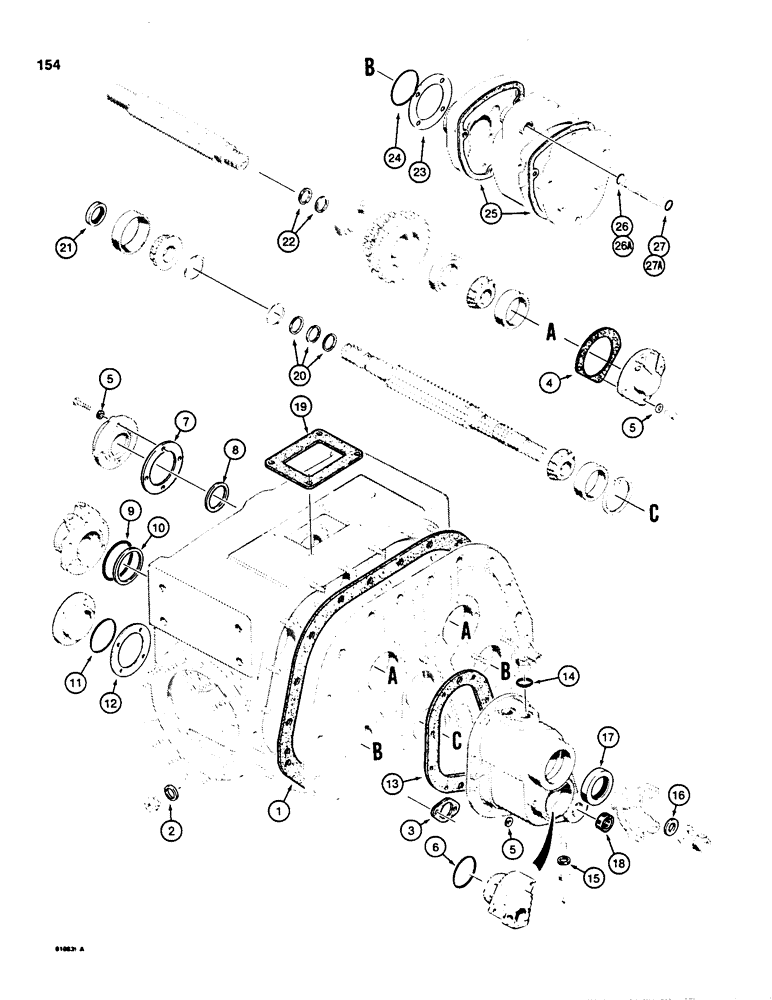

Запчасти Case 850C (154) - TRANSMISSION SEAL KIT (03) - TRANSMISSION

G105944

SEAL

KIT - seal, transmission housing and covers

1шт.

1

G35334

GASKET

- housing cover, Includes: Ref. 1 - 27A

1шт.

2

A58613

SEALING WASHER

WASHER - transmission drain plug

1шт.

3

A50109

GASKET

- oil suction tube

1шт.

4

A50056

GASKET

- front cover, bevel pinion shaft

2шт.

5

D32117

COPPER WASHER

WASHER, COPPER

33шт.

6

G104039

O-RING,2.989" ID x 3.129" OD

- front cover, output shaft

1шт.

7

A50348

SHIM,.003" Thk

(0.076 mm), Rear cover, Hi-low clutch shaft .003" Thk

4шт.

7

A50272

SHIM,.005" Thk

(0.127 mm), Rear cover, Hi-low clutch shaft .005" Thk

2шт.

7

CASA50347

SHIM

- rear cover, hi-low clutch shaft, .010" (0.254 mm) thick

1шт.

8

G100338

SHIM,.028" Thk

(0.711 mm) .028" Thk

4шт.

9

A50055

SEALING RING

RING - rubber

1шт.

10

A50053

SHIM,.003" Thk

Rear cover, Forward-reverse (0.076 mm) .003" Thk

4шт.

10

40590

SHIM

- rear cover, forward-reverse, .005" (0.127 mm) thick

2шт.

10

40591

SHIM

- rear cover, forward-reverse, .010" (0.254 mm) thick

2шт.

11

G104780

O-RING,0.103" Thk x 2.987" ID, -151, Cl 5, 75 Duro

- cover, bevel pinion shaft

2шт.

12

G103645

SHIM,.003" Thk

Bevel pinion shaft (0.076 mm) .003" Thk

4шт.

12

G103647

SHIM,.010" Thk

Bevel pinion shaft (0.254 mm) .010" Thk

4шт.

13

A50269

GASKET

- range gear housing

1шт.

14

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, oil return elbow, range gear housing

1шт.

15

A50093

SEALING WASHER

WASHER - special, range selector detent

1шт.

16

34395

SEALING WASHER

WASHER - seal, drive shaft yoke

1шт.

17

A50420

SEAL

- input shaft

1шт.

18

G105118

OIL SEAL

- selector shaft, double lip

1шт.

19

A50113

GASKET

- base, transmission control valve

1шт.

20

A51841

RING

- seal, output shaft

3шт.

21

A54107

OIL SEAL,38.1mm ID x 8mm Thk

- output shaft

1шт.

22

A50389

SEAL

RING - seal, high-low clutch shafts

4шт.

23

G103641

SHIM,.003" Thk

Brake mounting support (0.076 mm) .003" Thk

4шт.

23

G103643

SHIM,.010" Thk

Brake mounting support (0.254 mm) .010" Thk

4шт.

24

G104038

O-RING,0.103" Thk x 3.487" ID, -153, Cl 5, 75 Duro

- brake mounting support

2шт.

25

G105443

GASKET

- brake housing

4шт.

26

R15365

O-RING,0.989" ID x 1.129" OD x 0.07"

- brake actuating shaft, inner, .070" (1.8 mm) wide, if used, see figure 142 for further identification

2шт.

26a

G34000

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

- brake actuating shaft, .103" (2.6 mm) wide, if used, see figure 142 for further identification

2шт.

27

G102086

O-RING,0.07" Thk x 0.864" ID, -20, Cl 6, 90 Duro

- brake actuating shaft, outer, .070" (1.8 mm) wide, if used, see figure 142 for further identification

2шт.

27a

D63414

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

- brake actuating shaft, outer, .103" (2.6 mm) wide, if used, see figure 142 for further identification

2шт.
