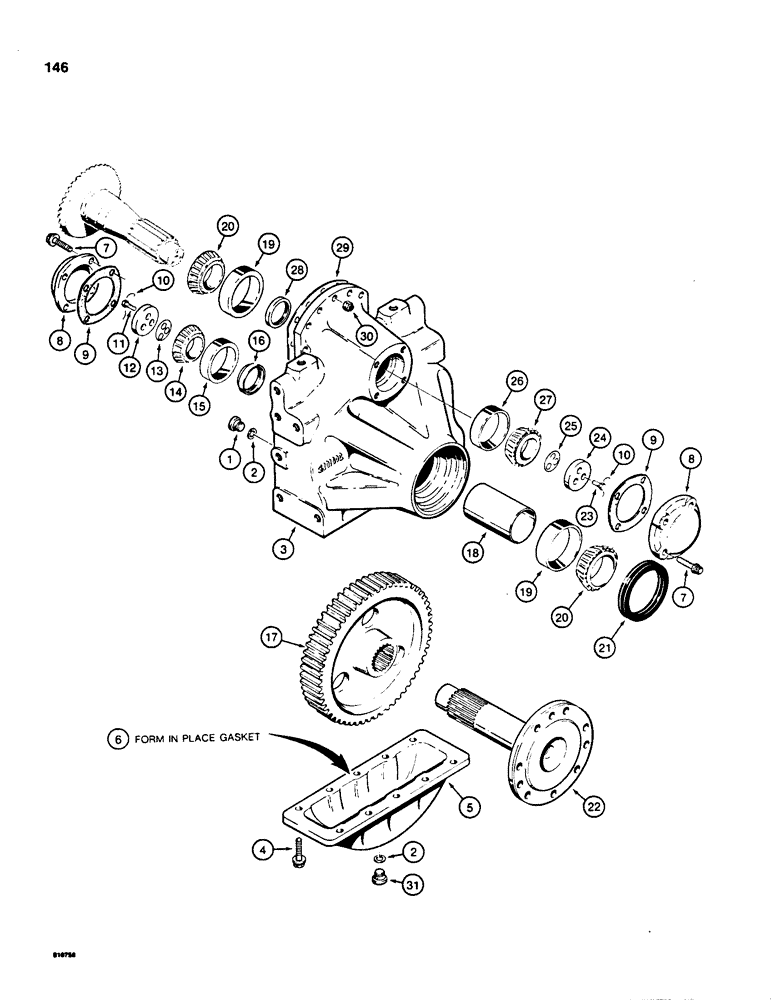

Запчасти Case 850C (146) - TRANSMISSION FINAL DRIVE, LOADER MODELS, 60" (1524 MM) GAUGE DOZER MODELS, AND DRAWBAR MODELS (03) - TRANSMISSION

G101602

DRIVE

FINAL DRIVE ASSEMBLY - G104045 transmission, Includes: Ref. 1 - 31

2шт.

1

A50014

PLUG

- fill

1шт.

2

G102141

SEALING WASHER

WASHER - copper, drain and fill plugs

2шт.

Part of seal kit P/N G102664

1шт.

3

G101600

HOUSING

- final drive

1шт.

4

166-87

BOLT,Flg, 1/2" - 13 x 1 1/2", Gr 8

- Ferry head, 1/2" - 13 NC x 1-1/2"

10шт.

5

G101601

COVER

PAN - bottom

1шт.

6

B17428

LOCTITE

GASKET - no 504 Loctite, 1-3/4 oz (50 ml) tube

1шт.

Part of seal kit P/N G102664

1шт.

7

166-85

12 PT SCREW,Flg, 1/2" - 13 x 1", Gr 8

BOLT - Ferry head, 1/2" - 16 NC x 1"

8шт.

8

G101599

COVER

- shafts

2шт.

9

G101598

GASKET

- cover

2шт.

Part of seal kit P/N G102664

1шт.

10

391-804

ELECTRICAL WIRE

WIRE - tie, bolt

2шт.

Part of seal kit P/N G102664

1шт.

11

R19888

SCREW

BOLT - hex head, 9/16" - 18 NF x 1-1/4"

3шт.

12

G102107

PLATE

- retaining

1шт.

13

R21741

SHIM,.005" Thk

(0.127 mm) .005" Thk

1шт.

Part of seal kit P/N G102664

1шт.

13

R21742

SHIM,.007" Thk

(0.178 mm) .007" Thk

1шт.

Part of seal kit P/N G102664

1шт.

13

R21743

SHIM,.020" Thk

(0.508 mm) .020" Thk

1шт.

14

G100323

BEARING

TAPERED ROLLER BEARING - final drive shaft, inner

1шт.

Part of overhaul kit P/N G102665

1шт.

15

L35931

BEARING CUP

CUP - tapered roller bearing

1шт.

Part of overhaul kit P/N G102665

1шт.

16

G100325

SPACER

- short, final drive shaft

1шт.

17

A50134

GEAR

- final drive

1шт.

18

G100324

SPACER

- long, final drive shaft

1шт.

19

A63171

BEARING CUP,85 mm ID x 130 mm OD x 30.2 mm

CUP - tapered roller bearing

2шт.

Part of overhaul kit P/N G102665

1шт.

20

A63185

ROLLER BEARING,85 mm ID x 130 mm OD x 24, 30.20 mm

TAPERED ROLLER BEARING - final drive

2шт.

Part of overhaul kit P/N G102665

1шт.

21

G101798

SEAL

FACE SEAL - final drive shaft

1шт.

Part of seal kit P/N G102664

1шт.

22

G104743

SHAFT

- final drive

1шт.

23

A31107

BOLT

- hex head, 1/2" - 13 NC x 1-1/4"

3шт.

24

G102108

PLATE

- retaining

1шт.

25

G100328

SHIM,.005" Thk

(0.127 mm) .005" Thk

1шт.

Part of seal kit P/N G102664

1шт.

25

G100329

SHIM,.007" Thk

(0.178 mm) .007" Thk

1шт.

Part of seal kit P/N G102664

1шт.

25

G100330

SHIM,.020" Thk

(0.508 mm) .020" Thk

1шт.

26

G100326

CUP

- tapered roller bearing

1шт.

Part of overhaul kit P/N G102665

1шт.

27

G100327

BEARING

TAPERED ROLLER BEARING - final drive

1шт.

Part of overhaul kit P/N G102665

1шт.

28

A32015

SEAL,82.55mm ID x 114.3mm OD x 11.91mm Thk

OIL SEAL - housing, upper shaft

1шт.

Part of seal kit P/N G102664

1шт.

29

A50199

SHIM,.003" Thk

(0.076 mm) .003" Thk

1шт.

29

A50198

SHIM,.005" Thk

(0.127 mm) .005" Thk

1шт.

30

88871

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

14шт.

31

A50014

PLUG

- drain, hex head

1шт.

G102664

SEAL

KIT - seal, Includes: Refs. 2, 6, 9, 10, 13, 21, 25 and 28

1шт.

G102665

DRIVE

KIT - overhaul, Includes: Refs. 14, 15, 19, 20, 26 and 27 and G102664 kit

1шт.
