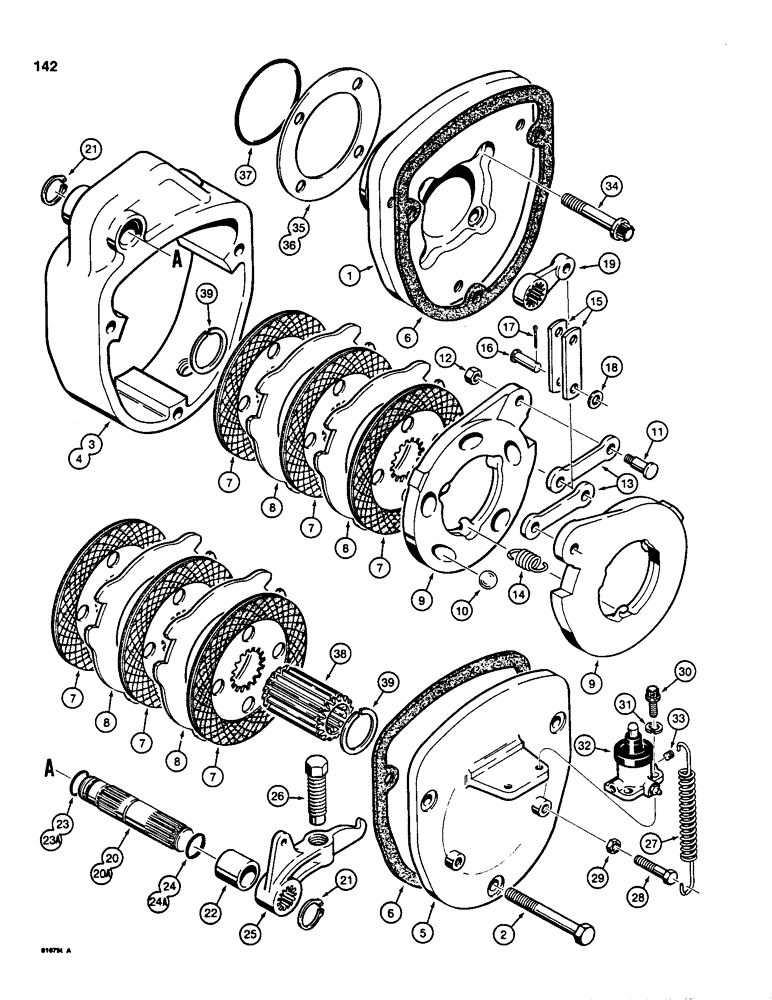

Запчасти Case 850C (142) - TRANSMISSION BRAKES (03) - TRANSMISSION

1

G103640

PLATE ASSY.

SUPPORT - brake mounting

2шт.

2

13-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

6шт.

3

G103648

HOUSING

- brake, RH

1шт.

4

G103121

HOUSING

- brake, LH

1шт.

5

G103094

COVER ASSY

COVER - brake

2шт.

6

G105443

GASKET

- brake housing

4шт.

Part of seal kit P/N G105944

1шт.

7

G103117

PLATE ASSY.

FRICTION DISC - brake

12шт.

8

G103118

DISC

- steel, brake

8шт.

R18531

DISC

ACTUATOR ASSEMBLY - brakes, Includes: Ref. 9 - 14

2шт.

9

A50148

DISC

PLATE - mounting

2шт.

10

211-19

BALL,7/8" Dia

- steel, 7/8" (22 mm) diameter

5шт.

11

A30898

STEP BOLT

SHOULDER BOLT - special

2шт.

12

25-155

JAM NUT,Jam, 5/16"-24, G5

- hex, 5/16" - 24 NF

2шт.

13

R18533

LINK

- flat

2шт.

14

A155624

SPRING

- brake actuator

3шт.

15

R15369

LINK

- brake pull

4шт.

16

G105353

PIN,11.07mm OD x 29.97mm L

- brake links

4шт.

17

132-380

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), , Stainless steel 3/32" x 3/4"

4шт.

18

195-29

WASHER,7/16"

- flat, 7/16"

4шт.

19

R15372

LEVER

- brake

2шт.

20

G103650

SHAFT

- brake actuating, O-ring grooves are .095" (3/32" or 2.4 mm) wide, no longer used, order refs 20A, 23A, and 24A

2шт.

20a

G107436

SHAFT

- brake actuating, O-ring grooves are .140" (9/64" or 3.5 mm) wide

2шт.

21

B18208

SNAP RING,#100, Ext

brake actuating shaft #100, Ext

4шт.

22

G103093

SPACER

- shaft

2шт.

23

G102086

O-RING,0.07" Thk x 0.864" ID, -20, Cl 6, 90 Duro

- inner, G103650 shaft only (ref 20)

2шт.

Part of seal kit P/N G105944

1шт.

23a

D63414

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

- inner, G107436 shaft only (ref 20A)

2шт.

Part of seal kit P/N G105944

1шт.

24

R15365

O-RING,0.989" ID x 1.129" OD x 0.07"

- center, G103650 shaft only (ref 20)

2шт.

Part of seal kit P/N G105944

1шт.

24a

G34000

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

- center, G107436 shaft only (ref 20A)

2шт.

Part of seal kit P/N G105944

1шт.

25

A50393

LEVER

- actuating

2шт.

26

A50395

ADJUSTMENT SCREW,Locking, 3/4" - 16 x 2.75"

SCREW - self-locking, 3/4" - 16 NF x 2-3/4", brake adjusting

2шт.

27

A50589

SPRING

- brake actuating lever

2шт.

28

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

29

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

30

166-4

12 PT SCREW,Flg, 1/4" - 20 x 3/4", Gr 8

BOLT - Ferry head, 1/4" - 20 NC x 3/4", grade 8

4шт.

31

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

32

G103628

BRAKE

CYLINDER ASSEMBLY - brake, parts list figure 144

2шт.

33

222-1062

PLUG,7/16"-24, Inv Fl

hex 7/16"-24, Inv Fl

2шт.

34

166-93

12 PT SCREW,Flg, 1/2" - 13 x 3", Gr 8

SCREW - Ferry head, 1/2" - 13 NC x 3", brake mounting support

8шт.

35

G103641

SHIM,.003" Thk

Brake mounting support (0.076 mm) .003" Thk

1шт.

Part of seal kit P/N G105944

1шт.

36

G103643

SHIM,.010" Thk

Brake mounting support (0.254 mm) .010" Thk

1шт.

Part of seal kit P/N G105944

1шт.

37

G104038

O-RING,0.103" Thk x 3.487" ID, -153, Cl 5, 75 Duro

- brake mounting support

2шт.

Part of seal kit P/N G105944

1шт.

38

G104123

HUB CAP

HUB - brake disc retaining

2шт.

39

A50046

RING

SNAP RING - hub retaining

4шт.

G105944

SEAL

KIT - seal, Includes: Refs. 6, 23, 23A, 24, 24A, 35, 36 and 37, for complete kit, see figure 154

1шт.
