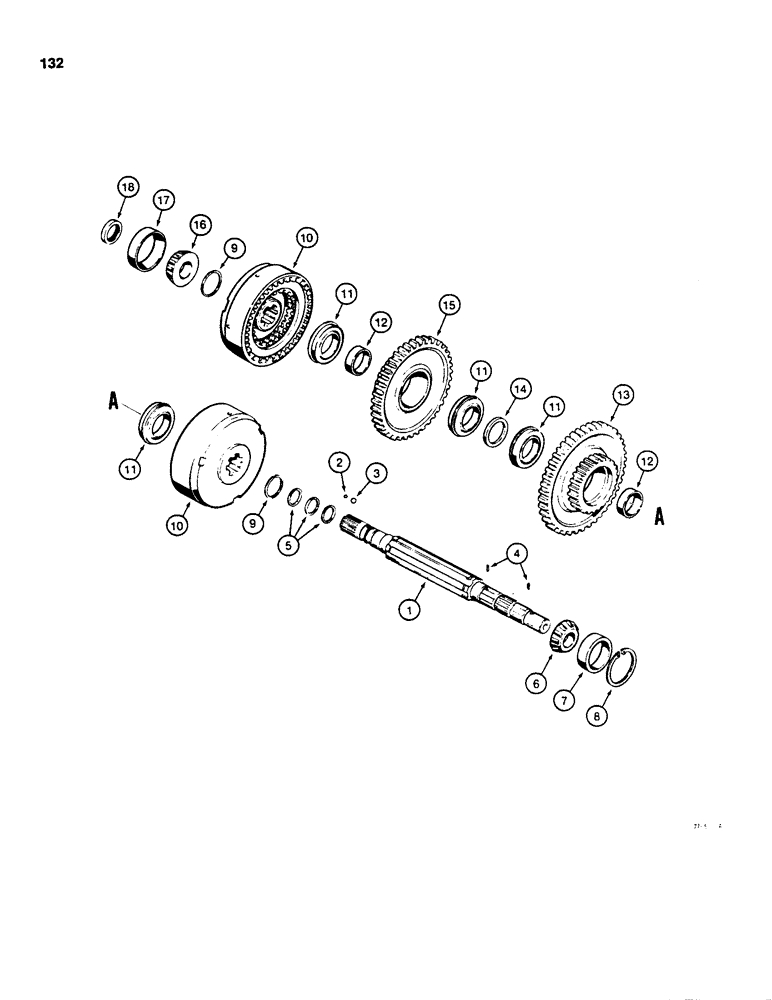

Запчасти Case 850C (132) - TRANSMISSION OUTPUT SHAFT AND, FORWARD-REVERSE CLUTCH (03) - TRANSMISSION

1

A54108

SHAFT

OUTPUT SHAFT - transmission, Includes: Ref. 2 and 3

1шт.

2

211-7

BALL,1/4" Dia

- steel (6 mm) 1/4" Dia

1шт.

3

211-11

BALL,3/8" Dia

- steel, 3/8" (9 mm) diameter

1шт.

4

138-68

LOCK PIN,5/32" x 7/16", Slotted

PIN, 5/32" x 7/16", Slotted

2шт.

5

A51841

RING

SEAL - output shaft

3шт.

Part of seal kit P/N G105944

1шт.

6

A30076

ROLLER BEARING,1.625" ID x 0.963"

TAPERED ROLLER BEARING - output shaft, front

1шт.

7

G15202

CUP

- tapered roller bearing

1шт.

8

R20786

RING

SNAP RING - bearing retaining, front

1шт.

9

A50046

RING

SNAP RING - bearing retaining, rear

2шт.

10

REF

INSTRUCTION

CLUTCH - forward and reverse, parts list figure 138

2шт.

11

40027

BALL BEARING,49.99mm ID x 80mm OD x 16mm W

BALL BEARING - clutches

4шт.

12

A50293

SPACER

- ball bearings

2шт.

13

A50505

GEAR WHEEL

GEAR - reverse, 29 and 56 teeth

1шт.

14

A50034

SPACER

- forward and reverse gears

1шт.

15

A50506

GEAR

- forward, 29 and 51 teeth

1шт.

16

A50048

ROLLER BEARING,40mm ID x 21.69mm W

TAPERED ROLLER BEARING - output shaft, rear

1шт.

17

A27138

BEARING CUP,85 mm OD x 17.462 mm

CUP - tapered roller bearing

1шт.

18

A54107

OIL SEAL,38.1mm ID x 8mm Thk

OIL SEAL - output shaft

1шт.

Part of seal kit P/N G105944

1шт.

G105944

SEAL

KIT - seal, Includes: Refs. 5 and 18, for complete kit, see figure 154

1шт.
