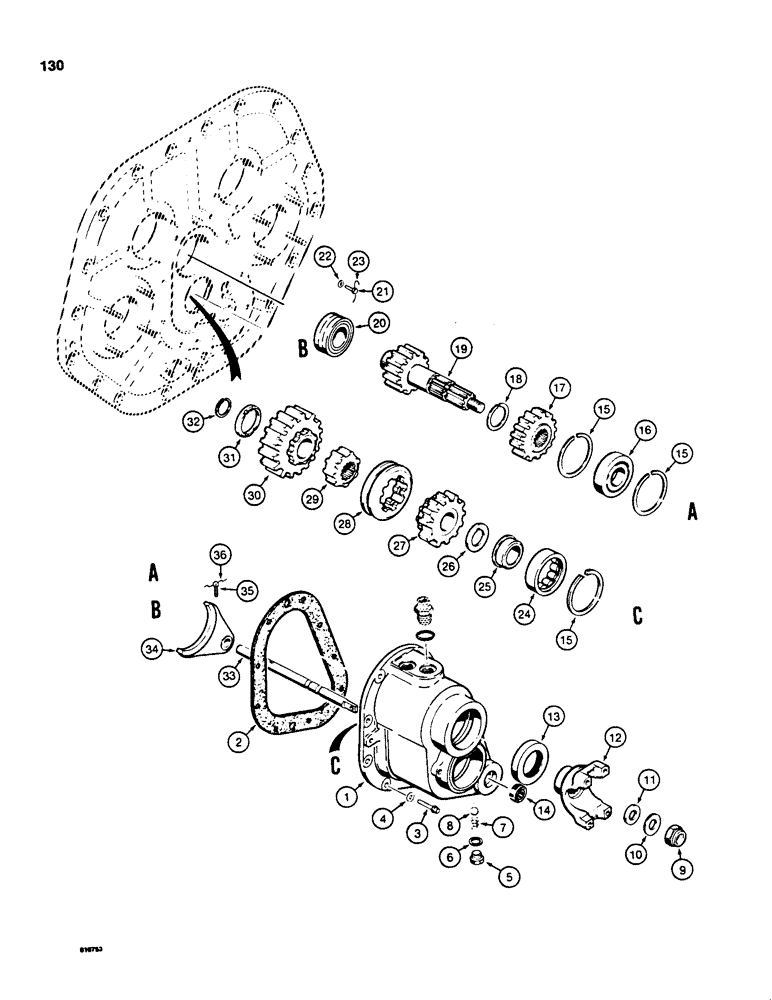

Запчасти Case 850C (130) - TRANSMISSION RANGE SHIFT (03) - TRANSMISSION

1

NSS

NOT SOLD SEPARAT

HOUSING - range gear, see figure 126 for service

1шт.

2

A50269

GASKET

- range gear housing

1шт.

Part of seal kit P/N G105944

1шт.

3

166-46

12 PT SCREW,Flg, 3/8" - 16 x 1 1/4", Gr 8

SCREW - Ferry head, 3/8" - 16 NC x 1-1/4"

9шт.

4

D32117

COPPER WASHER

WASHER, COPPER

9шт.

Part of seal kit P/N G105944

1шт.

5

A50094

PLUG,Screw, 5/8" - 18 x 0.377"

SCREW - special, detent

1шт.

6

A50093

SEALING WASHER

WASHER - special

1шт.

Part of seal kit P/N G105944

1шт.

7

A50092

SPRING

- detent

1шт.

8

211-13

BALL,1/2" Dia

(13 mm), steel 1/2" Dia

1шт.

9

131-37

LOCK NUT,3/4"-16

NUT - hex, self-locking, 3/4" - 14 NF

1шт.

10

32601

WASHER

- special

1шт.

11

34395

SEALING WASHER

WASHER - seal

1шт.

Part of seal kit P/N G105944

1шт.

12

A50580

YOKE

- input shaft, to drive shaft

1шт.

13

A50420

SEAL

- input shaft

1шт.

Part of seal kit P/N G105944

1шт.

14

G105118

OIL SEAL

- selector shaft, double lip

1шт.

Part of seal kit P/N G105944

1шт.

15

R13804

RING

SNAP RING - bearing retaining

3шт.

16

A26537

BALL BEARING,34.99mm ID x 80mm OD x 21mm W

- input shaft, front

1шт.

17

G100307

GEAR

DRIVE GEAR - input shaft

1шт.

18

R15364

SNAP RING,#152, 1.527", Ext

- drive gear

1шт.

19

G101313

SHAFT

INPUT SHAFT - transmission

1шт.

20

G101324

ROLLER BEARING

- input shaft, rear

1шт.

21

A15983

BOLT,M10 x 1.25 x 40mm, Cl 10.9

- hex drill head, 3/8" - 16 NC x 3/4"

2шт.

22

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

23

391-804

ELECTRICAL WIRE

WIRE - tie

1шт.

24

A50258

ROLLER BEARING,3.1510" OD x 0.8268"

- output shaft, front

1шт.

25

A50332

BEARING CONE,1.25" ID x 0.8268"

RACE - bearing

1шт.

26

A50333

WASHER

THRUST WASHER - outer driven gear

1шт.

27

G100308

GEAR

DRIVEN GEAR - output shaft, front

1шт.

28

A51806

COLLAR

SLEEVE - range selector

1шт.

29

A50502

COLLAR

- range selector

1шт.

30

G100309

GEAR

DRIVEN GEAR - output shaft, rear

1шт.

31

A50071

WASHER

THRUST WASHER - rear driven gear

1шт.

32

A26946

RING

SNAP RING - rear driven gear

1шт.

33

A51886

SHAFT

- range selector, this shaft is no longer available, order G107672 shaft and fork.

1шт.

34

A51469

FORK

- range selector, this fork is no longer available, order G107672 shaft and fork.

1шт.

G107672

SHAFT

and fork, see Refs. 33 and 34

1шт.

35

A7044

SET SCREW,3/8" - 16 x 7/8"

- special

1шт.

36

391-804

ELECTRICAL WIRE

WIRE - tie, screw

1шт.

G105944

SEAL

KIT - seal, Includes: Refs. 2, 4, 6, 11, 13 and 14, for complete kit, see figure 154

1шт.
