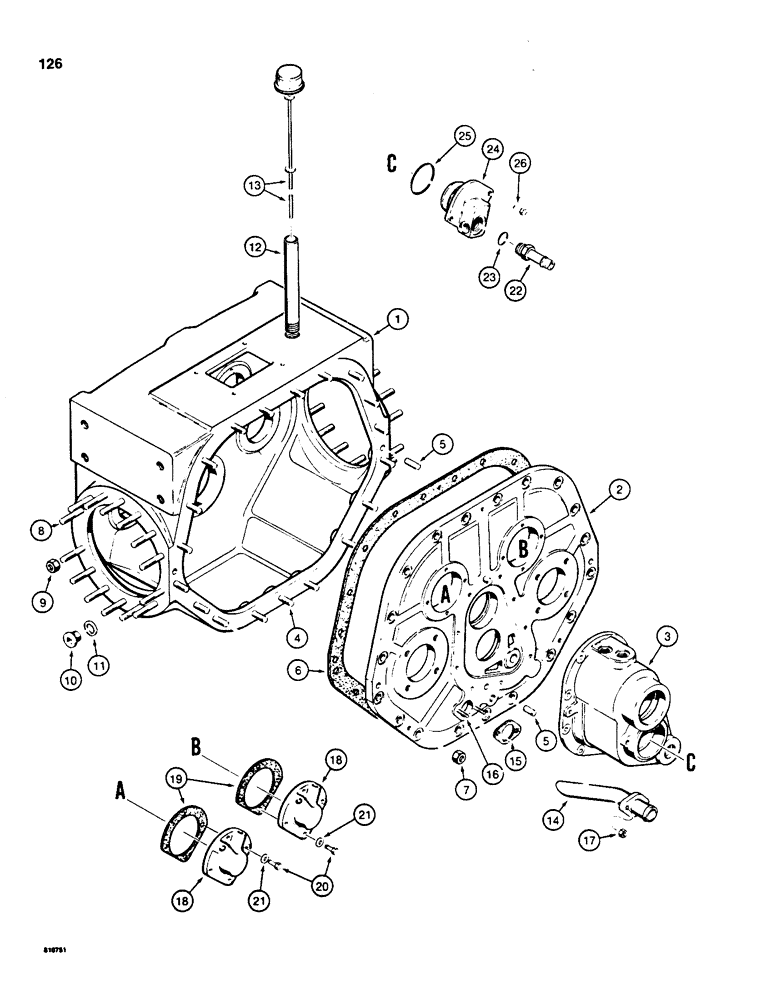

Запчасти Case 850C (126) - TRANSMISSION, CASE, FRONT COVERS, AND DIPSTICK (03) - TRANSMISSION

G104045

TRANSMISSION

ASSEMBLY - loader models and 60" (1524 mm) gauge dozer models, see figures 126 thru 152 for complete transmission, Includes: Ref. 1 - 5

1шт.

G103721

TRANSMISSION ASSEMBLY - 70" (1778 mm) gauge LGP dozer models, see figures 126 thru 152 for complete transmission, Includes: Ref. 1 - 5

1шт.

G103516

HOUSING

ASSEMBLY - transmission, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

CASE - transmission

1шт.

2

NSS

NOT SOLD SEPARAT

COVER - case

1шт.

3

NSS

NOT SOLD SEPARAT

HOUSING - range gear

1шт.

4

A50249

STUD

- 9/16" - 12 NC x 2-3/8"

19шт.

5

A50247

DOWEL

- range gear housing

4шт.

6

G35334

GASKET

- cover

1шт.

Part of seal kit P/N G105944

1шт.

7

232-4119

LOCK NUT,9/16"-12, GC

NUT - hex, self-locking, 9/16" - 12 NC

19шт.

8

G100303

STUD

- 1/2" - 13 NC x 2-5/16"

28шт.

9

88871

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

28шт.

10

R14777

PLUG

DRAIN PLUG - transmission

1шт.

11

A58613

SEALING WASHER

SEAL - nylon washer

1шт.

Part of seal kit P/N G105944

1шт.

12

G100836

TUBE,1.5" OD x 14.25" L

- dipstick

1шт.

13

G100305

DIPSTICK

- transmission

1шт.

14

A50110

TUBE

- suction

1шт.

15

A50109

GASKET

- suction tube

1шт.

Part of seal kit P/N G105944

1шт.

16

A50362

STUD

- 3/8" - 16 NC x 1-3/8"

2шт.

17

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

18

G102244

COVER

- hi-low clutch shaft

2шт.

19

A50056

GASKET

- shaft cover

2шт.

Part of seal kit P/N G105944

1шт.

20

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

8шт.

21

D32117

COPPER WASHER

WASHER, COPPER, 3/8"

8шт.

22

217-177

FITTING,3/4" Hose Barb x 1-1/16" - 12 Male ORB

STEM FITTING - straight, hydraulic oil return from radiator, Includes: Ref. 23

1шт.

23

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- stem fitting

1шт.

24

G103748

CYLINDER END CAP

CAP - output shaft

1шт.

25

G104039

O-RING,2.989" ID x 3.129" OD

- cap, output shaft

1шт.

Part of seal kit P/N G105944

1шт.

26

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

G105944

SEAL

KIT - seal, Includes: Refs. 6, 11, 15, 19 and 25, for complete kit, see figure 154

1шт.
