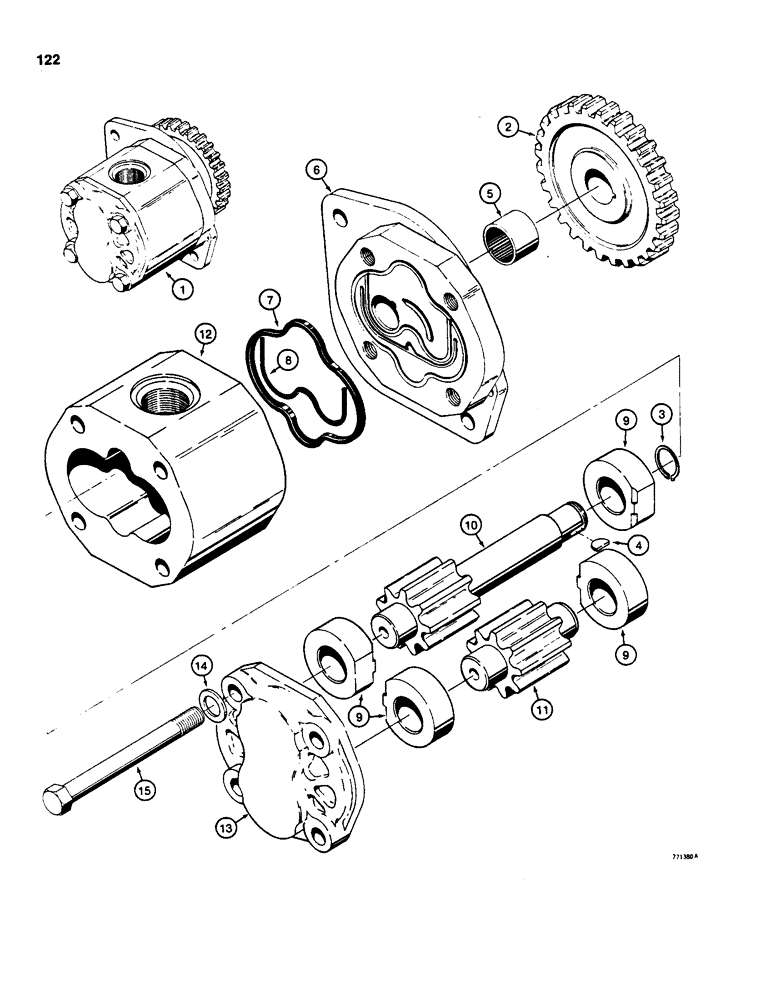

Запчасти Case 850C (122) - R30678 TORQUE CONVERTER PUMP (03) - TRANSMISSION

1

R30678

PUMP

- hydraulic, torque converter charging (Warner Motive no P2-12EZ5-5-R-03), Includes: Ref. 1 - 15

1шт.

2

D32020

GEAR

- pump drive

1шт.

3

D32101

SNAP RING,#62, Ext

Ring, Snap, , shaft #62, Ext

1шт.

4

126-113

WOODRUFF KEY,#61, 3/16" x 5/8", HT

1шт.

5

14228

NEEDLE BEARING,Needle, 19.05mm ID x 25.4mm OD x 19.05mm W

- pump drive gear

1шт.

6

R30679

COVER

- shaft end

1шт.

7

D53279

SEAL

QUAD RING - cover

2шт.

8

D53280

SEAL

O-RING - cover, shaft end only

1шт.

9

D52937

BALL BEARING,0.7505" ID x 1.5385" OD x 0.5795"

BEARING - gear

4шт.

D52936

GEAR

SET - drive gear and driven gear, Includes: Ref. 10 and 11

1шт.

10

NSS

NOT SOLD SEPARAT

DRIVE GEAR - pump

1шт.

11

NSS

NOT SOLD SEPARAT

DRIVEN GEAR - pump

1шт.

12

D52933

HOUSING

BODY - gear

1шт.

13

D52935

COVER

- port end

1шт.

14

195-2028

WASHER,.391" x 5/8" x .065"

- flat, 3/8"

4шт.

15

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

- hex head, 3/8" - 16 NC x 3-3/4"

4шт.
