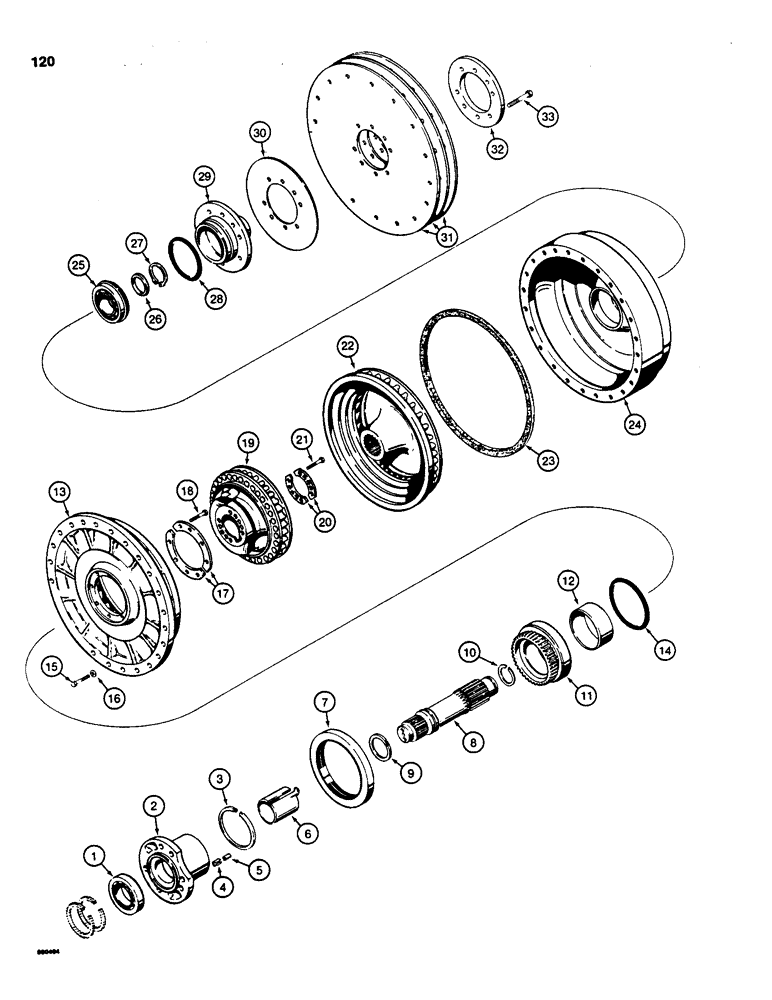

Запчасти Case 850C (120) - TORQUE CONVERTER, SHAFT, IMPELLER, AND TURBINE (03) - TRANSMISSION

R34957

CONVERTER

TORQUE CONVERTER ASSEMBLY - loader models, Twin Disc spec. no N64015, parts list figures 116 thru 120, if used, Includes: Ref. 1 - 33

1шт.

R49327

CONVERTER

TORQUE CONVERTER ASSEMBLY - loader models, Twin Disc spec. no. N65946, parts list figures 116 thru 120, if used, Includes: Ref. 1 - 33

1шт.

R34958

TORQUE CONVERTER

ASSEMBLY - dozer and drawbar models, Twin Disc spec. no. N64014, parts list figures 116 thru 120, no longer used, order R49346 torque converter assembly, Includes: Ref. 1 - 33

1шт.

R49326

CONVERTER

TORQUE CONVERTER ASSEMBLY - dozer and drawbar models, Twin Disc spec. no. N65945, parts list figures 116 thru 120, Includes: Ref. 1 - 33

1шт.

1

B18274

BALL BEARING,1.7712" ID x 3.3465" OD x 0.748"

- output shaft, inner

1шт.

Part of overhaul kit P/N R40939

1шт.

2

D75861

GUIDE

CARRIER - gear

1шт.

3

A20231

RING

SNAP RING - carrier

1шт.

Part of seal kit P/N R38108

1шт.

4

138-221

LOCK PIN,3/8" x 5/8", Slotted

4шт.

5

138-108

LOCK PIN,7/32" x 5/8", Slotted

4шт.

6

D32027

SLEEVE

- split, shaft

1шт.

Part of overhaul kit P/N R40939

1шт.

7

D32109

SEAL,133.35mm ID x 165.35mm OD x 13.74mm Thk

OIL SEAL - gear

1шт.

Part of seal kit P/N R38108

1шт.

8

D32026

SHAFT

OUTPUT SHAFT - torque converter

1шт.

9

A20229

RING

RETAINING RING - shaft

1шт.

Part of seal kit P/N R38108

1шт.

10

A22889

RING

SNAP RING - shaft

1шт.

Part of overhaul kit P/N R40939

1шт.

D75862

GEAR

ASSEMBLY - pump drive, Includes: Ref. 11 and 12

1шт.

11

NSS

NOT SOLD SEPARAT

GEAR - pump drive

1шт.

12

NSS

NOT SOLD SEPARAT

BUSHING - steel backed, must order D75862 gear assembly

1шт.

13

D48856

IMPELLER

- torque converter, loader models

1шт.

13

D31934

IMPELLER

- torque converter, dozer and drawbar models

1шт.

14

49393

O-RING,4.734" ID x 5.012" OD x 0.139"

- impeller

1шт.

Part of seal kit P/N R38108

1шт.

15

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

24шт.

16

A22873

WASHER,8.33mm ID x 15.88mm OD x 1.88mm Thk

- special

24шт.

17

D32016

PLATE

- clamp

2шт.

18

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

- hex head, 5/16" - 24 NC x 3/4"

8шт.

19

D31936

GUIDE

WHEEL - torque converter

1шт.

20

D32010

PLATE

- clamp

2шт.

21

166-26

12 PT SCREW,Flg, 5/16" - 18 x 1", Gr 8

MACHINE SCREW - 5/16" - 18 NC x 1"

6шт.

22

D31935

TURBINE

- torque converter

1шт.

23

D31998

GASKET

- rotating housing

1шт.

Part of seal kit P/N R38108

1шт.

24

N8410

HOUSING

- rotating

1шт.

25

A63271

BALL BEARING,1.5748" ID x 3.799" OD x 0.9055"

- output shaft, outer

1шт.

Part of overhaul kit P/N R40939

1шт.

26

D32030

BALL BEARING,1.585" ID x 1.94" OD x 0.114"

SPACER - ball bearing

1шт.

27

A26946

RING

SNAP RING - ball bearing

1шт.

Part of overhaul kit P/N R40939

1шт.

28

A21301

O-RING,0.139" Thk x 3.609" ID, -239, Cl 5, 75 Duro

- flywheel pilot

1шт.

Part of seal kit P/N R38108

1шт.

29

D32015

WHEEL

PILOT - flywheel

1шт.

30

D32025

SHIM

- flex plate

1шт.

Part of seal kit P/N R38108

1шт.

31

D32017

PLATE

FLEX PLATE - converter

3шт.

32

D32028

WASHER

- support

1шт.

33

121-421

LOCK BOLT,Lock Place, Hex, 1/2" - 13 x 1 1/4", Gr 8

BOLT - hex, self-locking, 1/2" - 13 NC x 1-1/4", grade 8

6шт.

R38108

GASKET KIT

KIT - seal, Includes: Refs. 3, 7, 9, 14, 23, 28 and 30

1шт.

R40939

KIT

- overhaul, Includes: Refs. 1, 6, 10, 25 and 27

1шт.
