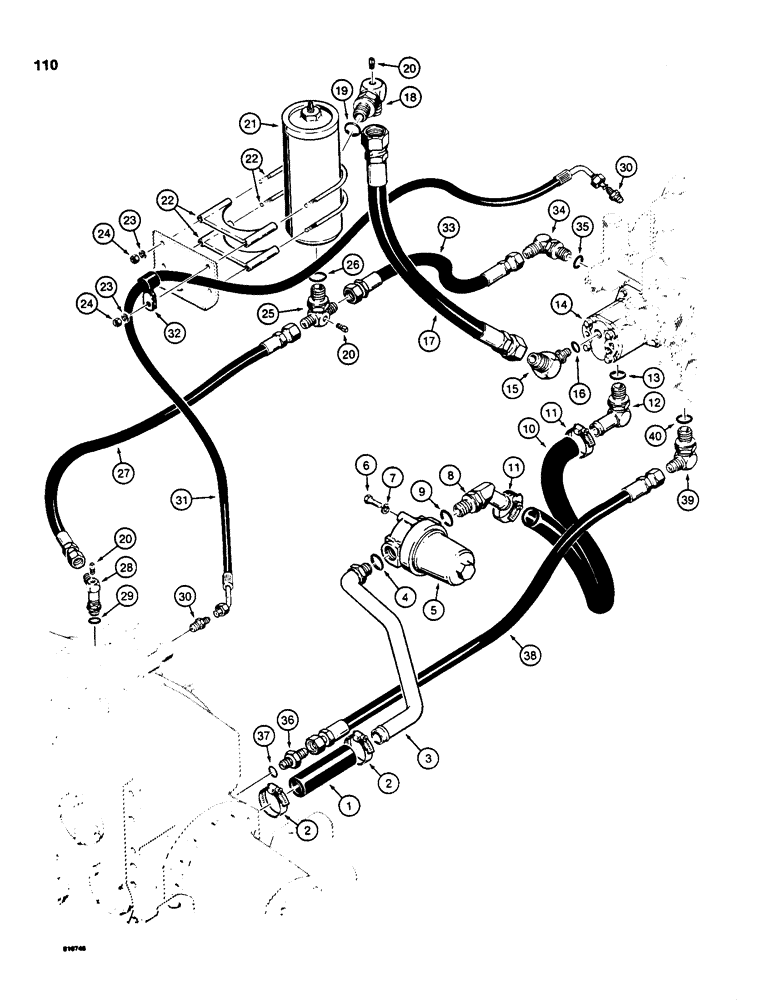

Запчасти Case 850C (110) - CRAWLER HYDRAULIC CIRCUIT, TORQUE CONVERTER TO TRANSMISSION (03) - TRANSMISSION

1

REF

INSTRUCTION

HOSE - 1-1/4" (32 mm) ID x 6" (152 mm) long, cut from D33365 hose

1шт.

2

214-175

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm

adjustable 1.25/2.125 HD Worm

2шт.

3

R46752

TUBE,1.25" OD

- suction, transmission to filter, Includes: Ref. 4

1шт.

4

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- tube

1шт.

5

R35926

FILTER

- suction line, parts list figure 114

1шт.

6

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

7

92-8

LOCK WASHER,1/2"

2шт.

8

217-320

FITTING,45 Degree Elbow, 1-1/4" Hose Barb x 1-5/16" - 12 Male ORB

ELBOW - 45 degree, barb fitting, Includes: Ref. 9

1шт.

9

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

10

D37188

HOSE

- to pump, 1-1/4" (32 mm) ID x 10" (254 mm) long

1шт.

11

214-175

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm

adjustable 1.25/2.125 HD Worm

2шт.

12

217-358

FITTING,90 Degree Elbow, 1-1/4" Hose Barb x 1-5/16" - 12 Male ORB

ELBOW - 90 degree, barb fitting, Includes: Ref. 13

1шт.

13

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

14

R30678

PUMP

- torque converter, parts list figure 122

1шт.

15

218-5527

ELBOW,45 Degree, 1 1/16"-12 x 3/4"-16, 37 Degree

Incl. Ref 16 45º, 1 1/16"-12 x 3/4"-16, 37º

1шт.

16

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, elbow

1шт.

17

R46508

HOSE ASSY.

HOSE - pump to transmission filter, 14" (356 mm) long

1шт.

18

R38928

FITTING

ELBOW - 90 degree, adjustable, Includes: Ref. 19

1шт.

19

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- elbow

1шт.

20

221-11

PLUG,Sq Hd, 1/8"-27

- square head, 1/8" NPT

3шт.

21

REF

INSTRUCTION

FILTER - transmission, parts list figure 114

1шт.

22

L60408

CLAMP

- filter retaining, Includes: Ref. 23 and 24

2шт.

23

92-6

LOCK WASHER,3/8"

2шт.

24

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

25

R38926

FITTING

TEE - adjustable, Includes: Ref. 26

1шт.

26

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- tee

1шт.

27

R34199

HOSE

- filter to transmission control valve, 30" (762 mm) long

1шт.

28

G100654

FITTING

ELBOW - 90 degree, adjustable, Includes: Ref. 29

1шт.

29

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

30

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

CONNECTOR - straight, male

2шт.

31

R34863

HOSE

- transmission to torque converter

1шт.

32

R43926

CLAMP

- twist, hose, uses filter mounting clamp hardware

1шт.

33

D48532

HOSE ASSY.

HOSE - filter to torque converter, 13-1/4" (335 mm) long

1шт.

34

R19576

FITTING

ELBOW - 90 degree, adjustable, Includes: Ref. 35

1шт.

35

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

36

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., , straight, male, Incl. Ref. 37 7/8"-14, 37º x 3/4"-16, O-Ring

1шт.

37

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, connector

1шт.

38

R34199

HOSE

- transmission to torque converter, 30" (762 mm) long

1шт.

39

218-5130

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-5/16" - 12 Male ORB

adjustable, Incl. Ref 40 90º, 7/8"-14, 37º x 1 5/16"-12, O-Ring

1шт.

40

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

D33365

HOSE

- 1-1/4" (32 mm) ID x 18-1/2" (470 mm) long

1шт.
