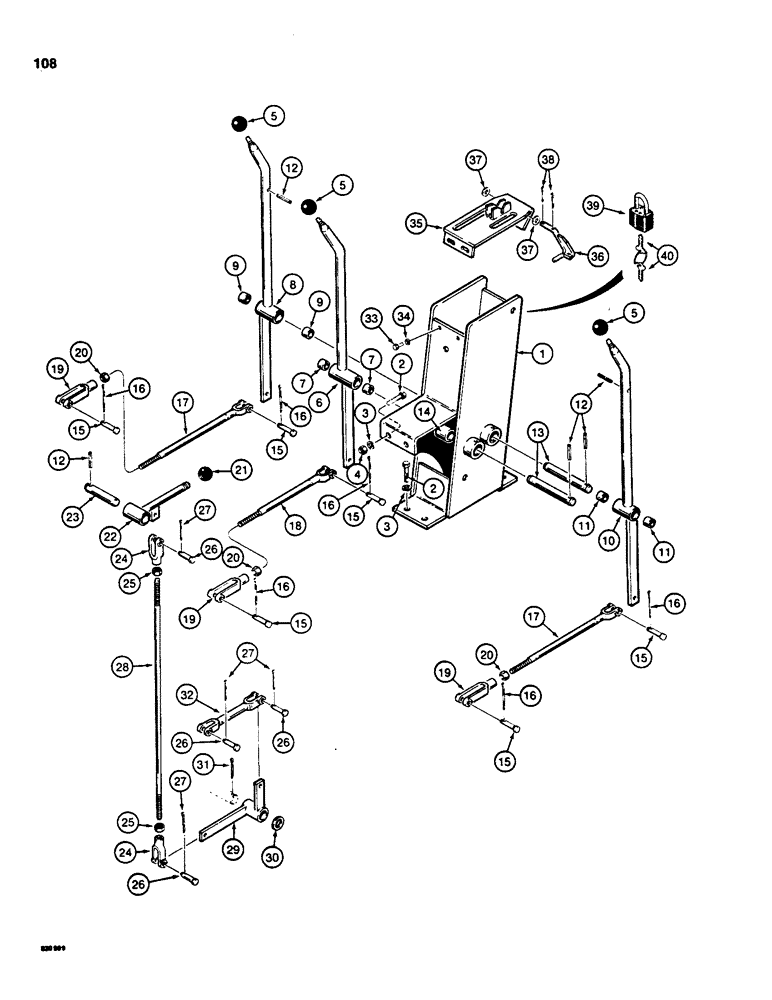

Запчасти Case 850C (108) - TRANSMISSION CONTROLS (03) - TRANSMISSION

1

R32049

SUPPORT ASSY.

CONTROL TOWER - crawler

1шт.

2

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

3

92-8

LOCK WASHER,1/2"

4шт.

4

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

2шт.

5

70213

KNOB

- control lever

3шт.

6

R32065

LEVER

CONTROL LEVER - forward and reverse, Includes: Ref. 7

1шт.

7

R31144

BUSHING

- control lever

2шт.

8

R32057

LEVER

CONTROL LEVER - left-hand, high - low, Includes: Ref. 9

1шт.

9

R31144

BUSHING

- control lever

2шт.

10

R32058

LEVER

CONTROL LEVER - right-hand, high - low, Includes: Ref. 11

1шт.

11

R31144

BUSHING

- control lever

2шт.

12

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, 3/16" x 1 1/4", Slotted

5шт.

13

R32064

SHAFT

- control levers

2шт.

14

R32884

SPACER

- control levers

1шт.

15

141-53

CLEVIS PIN,5/16" x .940"

plated 5/16" x .940"

6шт.

16

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

6шт.

17

R34012

ROD

- high - low

2шт.

18

R34011

ROD

- forward - reverse

1шт.

19

213-3

ADJUSTABLE CLEVIS,5/16"-24

YOKE - rod

3шт.

20

25-115

NUT,5/16"-24, G5

- hex, 5/16"-24 NF

3шт.

21

D49996

KNOB

- control lever, dual range

1шт.

22

R32074

LEVER

CONTROL LEVER - dual range

1шт.

23

D29768

SHAFT

- control lever, dual range

1шт.

24

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - adjustable

2шт.

25

25-116

NUT,Hex, 3/8"-24, G5

- hex, 3/8" - 24 NF

2шт.

26

141-54

CLEVIS PIN,3/8" x 1 1/16"

4шт.

27

132-25

COTTER PIN,3/32" x 5/8"

- 3/8" x 5/8"

4шт.

28

R32078

ROD

- range control lever

1шт.

29

R32071

LEVER

BELLCRANK - dual range control

1шт.

30

95-10

WASHER,5/8"

- flat, 5/8"

1шт.

31

132-93

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

1шт.

32

D30319

ROD

- range control

1шт.

33

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

34

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

35

R32054

SUPPORT

BRACKET - lock

1шт.

36

R36318

LOCK

- neutral start

1шт.

37

195-17

WASHER,1/4"

- flat, 17/64"

2шт.

38

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

2шт.

39

D93753

PADLOCK

- control tower, includes keys, if used, Includes: Ref. 40

1шт.

40

R29555

KEY

- for Master padlock only

2шт.

40

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.
