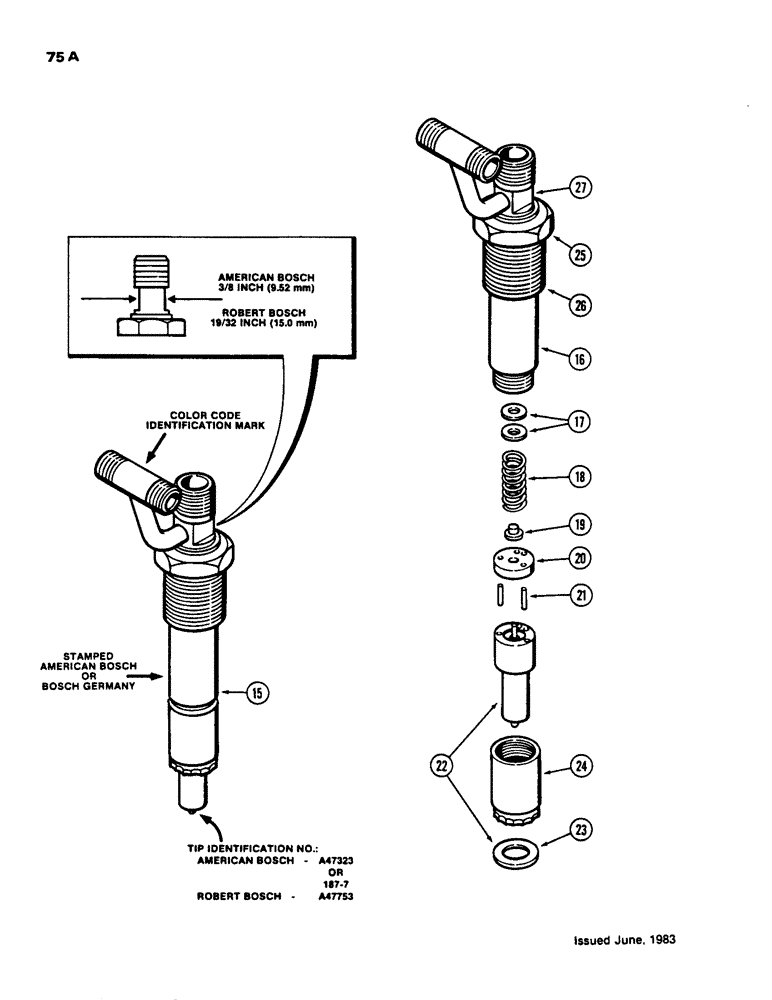

Запчасти Case 850C (075A) - FUEL INJECTION NOZZLE, 336BD AND 336BDT DIESEL ENGINE, RED COLOR CODE IDENTIFICATION (02) - FUEL SYSTEM
№
Артикул
Название
Примечание
Количество
A156323
NOZZLE CAP
NOZZLE ASSEMBLY - fuel injection (Continued from Figure 74), Includes: Ref. 15 - 27
6шт.
A156323R
REMAN-INJECT NOZZLE
855C, 850C
6шт.
A156323C
CORE-NOZZLE, INJECT
Return Number
1шт.
15
NSS
NOT SOLD SEPARAT
NOZZLE ASSEMBLY - fuel injection, American Bosch, Includes: Ref. 16 - 27
1шт.
Internal parts between the American Bosch and Robert Bosch injectors are not interchangeable. See illustration for identification.
1шт.
16
NSS
NOT SOLD SEPARAT
BODY - nozzle (Order A156323)
1шт.
A48186
KIT
- shim, nozzle opening pressure (One kit will repair six nozzles), Includes: Ref. 17
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - 1.00 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - 1.04 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - 1.08 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - 1.10 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - 1.14 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - 1.18 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - 1.20 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - 1.24 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - 1.28 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - 1.30 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - 1.34 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - 1.38 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - 1.40 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - 1.44 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - 1.48 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - 1.50 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - 1.54 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - 1.58 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - 1.60 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - 1.64 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - 1.68 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - 1.70 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - 1.74 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - 1.78 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - 1.80 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - 1.84 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - 1.88 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - 1.90 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - 1.94 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - 1.98 mm (5 in kit)
1шт.
18
A48198
SPRING
- nozzle pressure
1шт.
19
A48203
SEAT
- nozzle pressure spring
1шт.
20
A48199
VALVE
STOP - nozzle
1шт.
21
A48200
PIN
- valve stop
2шт.
22
A47753
NOZZLE CAP
TIP ASSEMBLY - nozzle injector, Includes: Ref. 23
1шт.
23
A76640
GASKET
- nozzle
1шт.
When nozzle is removed from head, A76640 gasket must be replaced before nozzle is installed back in head.
1шт.
24
A48201
NUT
CAP NUT - nozzle end
1шт.
25
A48197
NUT
- nozzle
1шт.
26
A48202
RING
- retaining
1шт.
27
A48196
RING
- retaining
1шт.
Выбрано товаров: 48
