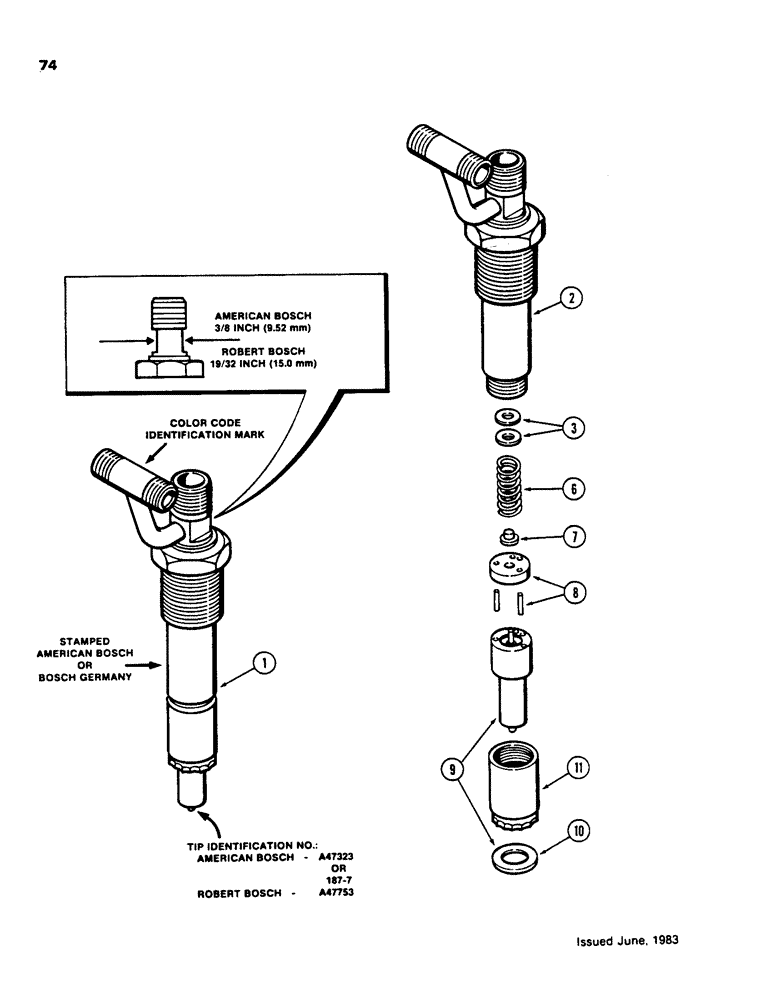

Запчасти Case 850C (074) - FUEL INJECTION NOZZLE, 336BD AND 336BDT DIESEL ENGINE (02) - FUEL SYSTEM

A156323

NOZZLE CAP

NOZZLE ASSEMBLY - fuel injection (Blue color code), Includes: Ref. 1 - 11

4шт.

A156323R

REMAN-INJECT NOZZLE

855C, 850C

4шт.

A156323C

CORE-NOZZLE, INJECT

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

NOZZLE ASSEMBLY - fuel injection, American Bosch, Includes: Ref. 2 - 11

1шт.

Internal parts between the American Bosch and Robert Bosch injectors are not interchangeable. See illustration for identification.

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - nozzle (Order A156323)

1шт.

A44860

SHIM

KIT - shim, nozzle opening pressure (one kit required to repair six nozzles), Includes: Ref. 3

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - 0.062" (1.57 mm)

6шт.

3

NSS

NOT SOLD SEPARAT

SHIM - 0002" (005 mm)

80шт.

3

NSS

NOT SOLD SEPARAT

SHIM - 0007" (018 mm)

50шт.

3

NSS

NOT SOLD SEPARAT

SHIM - 0010" (025 mm)

50шт.

3

NSS

NOT SOLD SEPARAT

SHIM - 0025" (064 mm)

20шт.

6

A44864

SPRING

- nozzle pressure adjusting

1шт.

7

A44863

SEAT

- nozzle pressure adjusting spring

1шт.

8

A44862

VALVE

STOP - nozzle assembly, with pin

1шт.

9

A47343

NOZZLE CAP

TIP ASSEMBLY - nozzle injector, Includes: Ref. 10

1шт.

10

A76640

GASKET

- nozzle

1шт.

When nozzle is removed from head, A76640 gasket must be replaced before nozzle is installed back in head.

1шт.

11

A44861

NUT

NUT - nozzle end

1шт.
