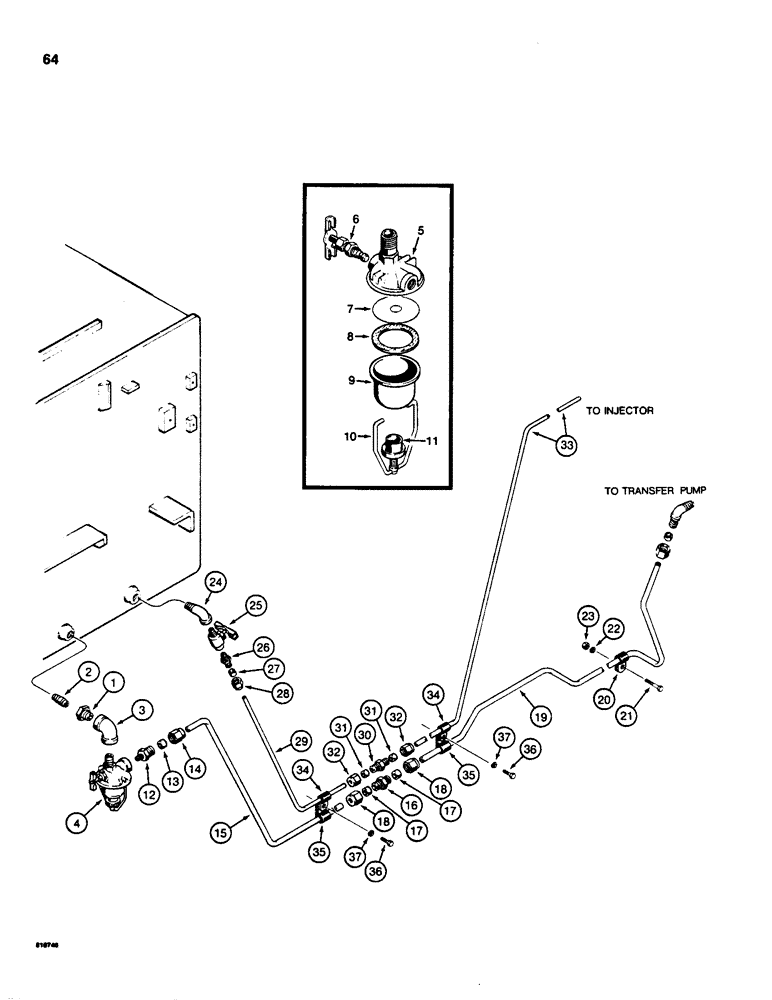

Запчасти Case 850C (064) - FUEL LINES (02) - FUEL SYSTEM

1

221-86

REDUCER,Hex, 3/8" x 1/4" NPT

- 3/8" x 1/4" NPT

1шт.

2

221-131

PIPE,Nipple, 1/4" NPT x 1"

NIPPLE - 1" x 1/4" NPT

1шт.

3

221-376

ELBOW,90 Degree, 3/8" NPT

- 90 degree, female

1шт.

4

A30049

STRAINER ELEMENT

STRAINER ASSEMBLY - fuel, Includes: Ref. 5 - 11

1шт.

5

A11214

HEAD

COVER - strainer

1шт.

6

A11205

VALVE

SHUTOFF VALVE - strainer

1шт.

7

A11211

FILTER SCREEN

SCREEN - strainer

1шт.

8

A11208

GASKET

- bowl

1шт.

9

41933

BOWL

- metal, if used

1шт.

9

A11209

BOWL

- glass, if used

1шт.

10

A11212

BAIL

RETAINER ASSEMBLY - bowl

1шт.

11

A11210

ADJUSTER

NUT - retainer assembly

1шт.

222-26

HYD CONNECTOR,5/8"-24 x 1/8" NPTF W/Nut

FITTING - straight, compression, Includes: Ref. 12 - 14

1шт.

12

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

13

222-104

SLEEVE,3/8" Tube

- fitting

1шт.

14

222-114

NUT,5/8"-24

NUT - compression

1шт.

15

R35090

FUEL TUBE,0.375" OD x 30.2, 16" L

TUBE - fuel

1шт.

222-5

FITTING,5/8"-24 Flex Tube

- straight, compression, Includes: Ref. 16 - 18

1шт.

16

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

17

222-104

SLEEVE,3/8" Tube

- fitting

2шт.

18

222-114

NUT,5/8"-24

NUT - compression

2шт.

19

R35093

FUEL TUBE,0.375" OD

TUBE - fuel

1шт.

20

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

- tube

1шт.

21

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex head, 5/16" - 18 NC x 1-1/4"

1шт.

22

92-5

LOCK WASHER,5/16"

1шт.

23

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

1шт.

24

217-21

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

STREET ELBOW - 90 degree

1шт.

25

217-94

SHUT-OFF VALVE

SHUTOFF VALVE - at fuel tank

1шт.

222-23

FITTING,1/2"-24 x 1/4" NPTF w/Nut

- straight, compression, Includes: Ref. 26 - 28

1шт.

26

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

27

222-104

SLEEVE,3/8" Tube

- fitting

1шт.

28

222-114

NUT,5/8"-24

NUT - compression

1шт.

29

R35091

FUEL TUBE,0.25" OD x 14.2, 11.1" L

TUBE - fuel

1шт.

222-3

FITTING,1/2"-24 Flex Tube

- straight, compression, Includes: Ref. 30 - 32

1шт.

30

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

31

222-102

SLEEVE,1/4" Tube

2шт.

32

87017024

TUBE NUT,1/2"-24

NUT - compression

2шт.

33

R46684

FUEL TUBE,1/2" OD x 29.7, 24.9" L

TUBE - fuel

1шт.

34

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- P-style

2шт.

35

49852

PTO SHAFT

- P-style

2шт.

36

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

2шт.

37

92-5

LOCK WASHER,5/16"

2шт.
