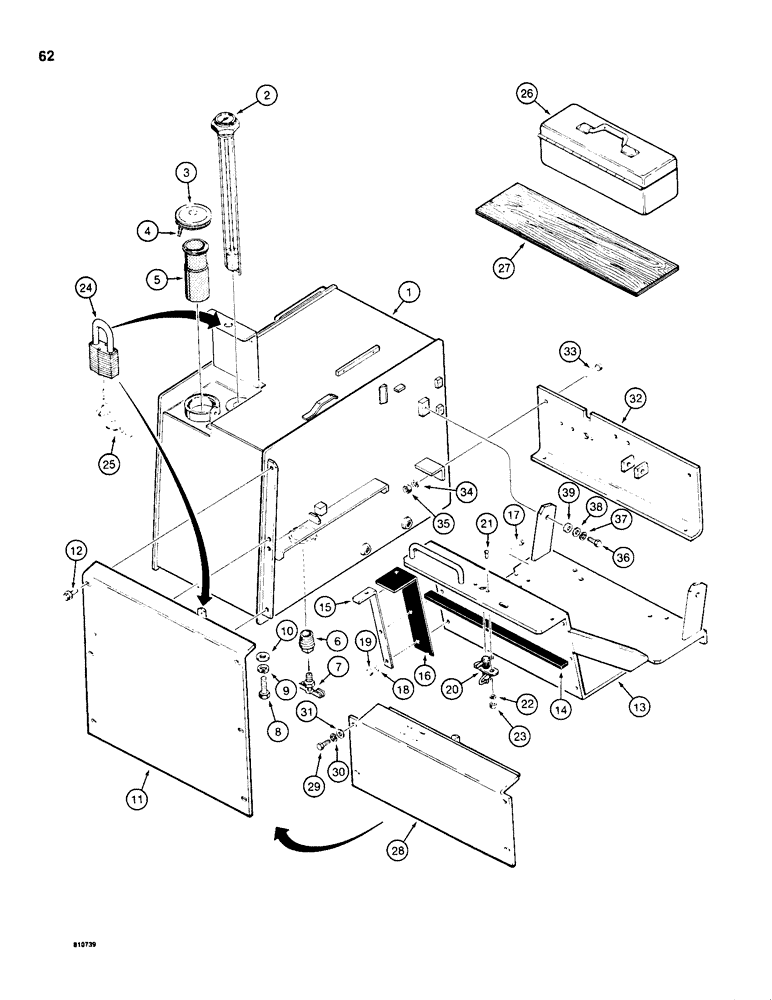

Запчасти Case 850C (062) - FUEL TANK, COVERS, AND TOOL BOX (02) - FUEL SYSTEM

1

R39374

FUEL TANK

- tractor

1шт.

Door is part No. R33355, the hinge is Part No. R26923

1шт.

2

R28475

FUEL GAUGE

GAUGE - fuel tank

1шт.

3

R43900

CAP

- fuel tank

1шт.

4

R43902

CHAIN (CE)

CHAIN - fuel tank cap

1шт.

5

R39339

STRAINER ELEMENT

STRAINER - fuel tank

1шт.

6

R27578

PLUG

DRAIN PLUG - fuel tank

1шт.

7

217-81

VALVE

- drain

1шт.

8

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

4шт.

9

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

10

195-41

WASHER,5/8"

- flat, 5/8"

4шт.

11

R32686

COVER - rear, models without backhoe

1шт.

12

121-233

FLANGE BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

BOLT - flange head, 3/8" - 16 NC x 3/4", Teflon coated

4-6шт.

13

R45330

PLATE ASSY.

SUPPORT - seat mounting, models without backhoe

1шт.

For seat mounting plate used on models with backhoe, see figure 328.

1шт.

14

R37149

SEAL - seat support

1шт.

15

R37106

STRIP - seat support

2шт.

16

R36637

BAFFLE

INSULATOR - rubber strip, seat

2шт.

17

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

8шт.

18

195-18

WASHER,1/4"

- flat, 1/4"

8шт.

19

131-650

NUT,1/4"-20, GB

NUT - hex, 1/4" - 20 NC

8шт.

20

L102515

LATCH

- seat support and tool box cover

1шт.

21

182-125

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

MACHINE SCREW - no 10 - 24 NC x 1/2"

2шт.

22

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

23

129-7

NUT,Hex, #10 - 24

- hex, no 10 - 24 NC

2шт.

24

D93753

PADLOCK

- fuel cap and tool box, includes keys, if used, Includes: Ref. 25

2шт.

25

R29555

KEY

- for Master padlock only

2шт.

25

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.

26

R29693

BOX, TOOL

TOOL BOX - under seat support

1шт.

27

NSS

NOT SOLD SEPARAT

BOARD - plywood, battery cover, 25-5/8" (650 mm) x 7" (178 mm) x 1/2" (13 mm) thick

1шт.

28

R36837

COVER - rear, used on backhoe models

1шт.

29

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

30

92-6

LOCK WASHER,3/8"

4шт.

31

195-25

WASHER,3/8"

4шт.

32

R34598

PLATE - heel

1шт.

33

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

6шт.

34

92-8

LOCK WASHER,1/2"

6шт.

35

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

4шт.

36

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

37

92-6

LOCK WASHER,3/8"

2шт.

38

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

39

R36182

SPACER

- seat mounting support

2шт.
