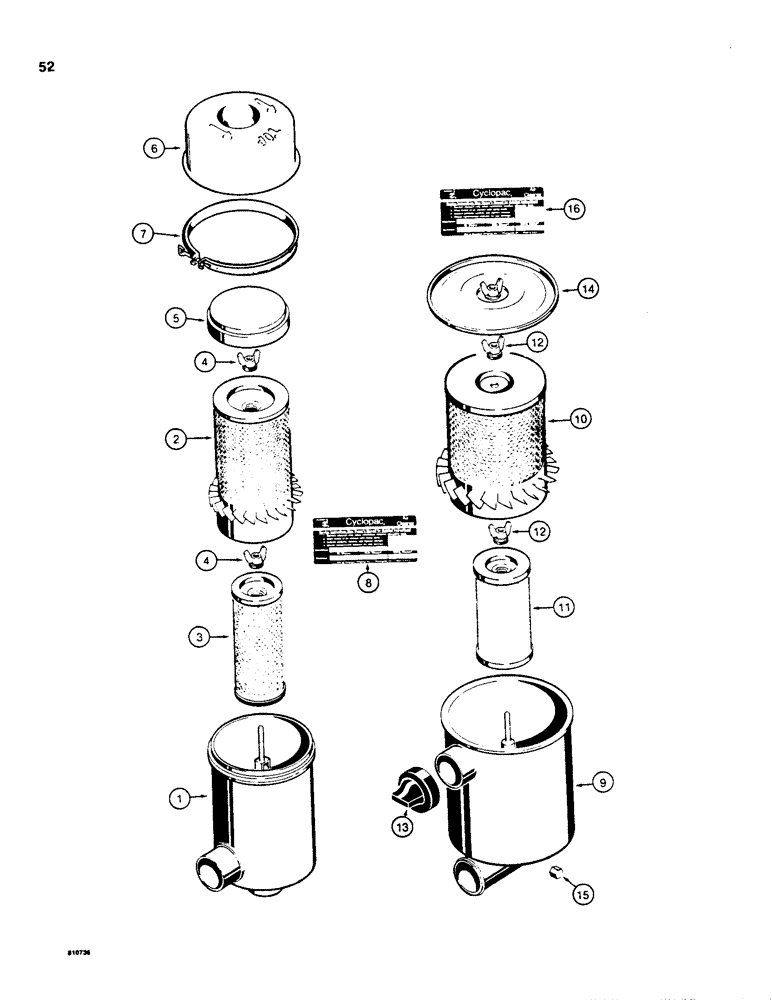

Запчасти Case 850C (052) - AIR CLEANER ASSEMBLIES (01) - ENGINE

R38924

CLEANER ASSY.

AIR CLEANER ASSEMBLY - used on models without turbocharger, Includes: Ref. 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - air cleaner, R38924 models without turbocharger

1шт.

2

D80480

FILTER, ELEMENT

ELEMENT - outer, R38924 air cleaner models without turbocharger

1шт.

3

D78336

FILTER

ELEMENT - inner, R38924 air cleaner models without turbocharger

1шт.

4

D78354

WING NUT

WING NUT AND WASHER - elements, R38924 air cleaner models without turbocharger

2шт.

5

D37979

BAFFLE

- R38924 air cleaner models without turbocharger

10шт.

6

D78355

CUP

COVER - R38924 air cleaner models without turbocharger

1шт.

7

R15731

CLAMP

- cover to body, R38924 air cleaner models without turbocharger

1шт.

8

D78356

DECAL - R38924 air cleaner models without turbocharger

1шт.

R40177

AIR CLEANER ASSEMBLY - used on models with turbocharger, Includes: Ref. 9 - 16

1шт.

9

NSS

NOT SOLD SEPARAT

BODY - R40177 air cleaner models with turbocharger

1шт.

10

D78326

FILTER, ELEMENT

ELEMENT - outer, R40177 air cleaner models with turbocharger

1шт.

11

D78325

FILTER, ELEMENT

ELEMENT - inner, R40177 air cleaner models with turbocharger

1шт.

12

D78357

NUT

WING NUT AND WASHER - elements, R40177 air cleaner models with turbocharger

2шт.

13

L30414

VALVE

DUST CUP - R40177 air cleaner models with turbocharger

1шт.

14

N6881

COVER

- R40177 air cleaner models with turbocharger

1шт.

15

R21180

CAP

- hex, R40177 air cleaner models with turbocharger

1шт.

16

D78359

DECAL - R40177 air cleaner models with turbocharger

1шт.
