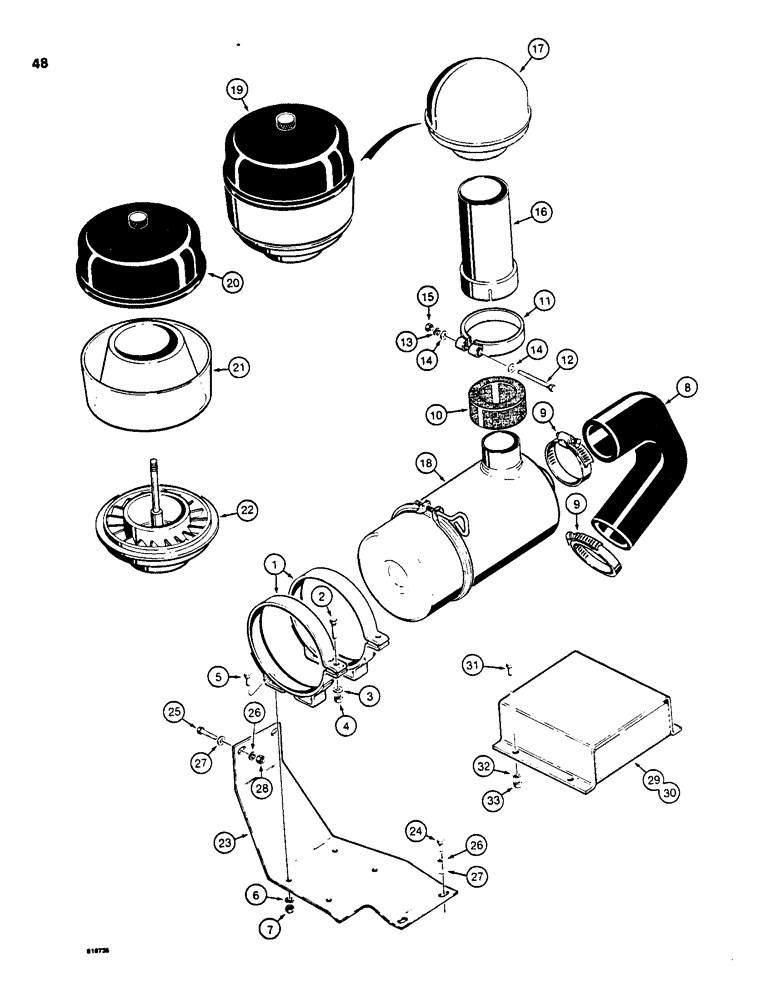

Запчасти Case 850C (048) - AIR CLEANER SYSTEM, MODELS WITHOUT TURBOCHARGER (01) - ENGINE

1

R24049

BAND

CLAMP - mounting, air cleaner, Includes: Ref. 2 - 4

2шт.

2

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex head, 5/16"- 18 NC x 1-1/2"

1шт.

3

195-21

WASHER,5/16"

- flat, 5/16"

1шт.

4

232-4115

LOCK NUT,5/16"-18, GC

NUT - hex, 5/16" - 18 NC

1шт.

5

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

6

92-5

LOCK WASHER,5/16"

4шт.

7

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

4шт.

8

R32516

FITTING

HOSE - air cleaner

1шт.

9

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP - adjustable, air cleaner hose

2шт.

10

R40117

PAD

- mounting, air cleaner inlet

1шт.

11

R27271

CLAMP

- inlet

1шт.

12

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- hex head, 3/8" - 16 NC x 3-1/4"

1шт.

13

92-6

LOCK WASHER,3/8"

1шт.

14

195-25

WASHER,3/8"

2шт.

15

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

16

R36598

TUBE

- air inlet, if used

1шт.

17

W13501

CAP

- air inlet, if used

1шт.

18

R38924

CLEANER ASSY.

AIR CLEANER ASSEMBLY - parts list figure 52

1шт.

19

A43616

FILTER

PRECLEANER ASSEMBLY - air cleaner, if used, Includes: Ref. 20 - 22

1шт.

20

A42465

COVER

- precleaner

1шт.

21

A42467

HOUSING

BOWL - precleaner

1шт.

22

NSS

NOT SOLD SEPARAT

BASE - precleaner

1шт.

23

R41041

BRACKET - mounting, air cleaner

1шт.

24

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

25

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

26

92-6

LOCK WASHER,3/8"

4шт.

27

195-25

WASHER,3/8"

4шт.

28

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

29

R33439

COVER

ASSEMBLY - air intake, noise reduction, includes pad, for pad see figure 336, if used, Includes: Ref. 30

1шт.

30

R33437

COVER

- air intake, without pad

1шт.

31

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

32

92-6

LOCK WASHER,3/8"

4шт.

33

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.
