Запчасти Case 850C (046) - RADIATOR (01) - ENGINE

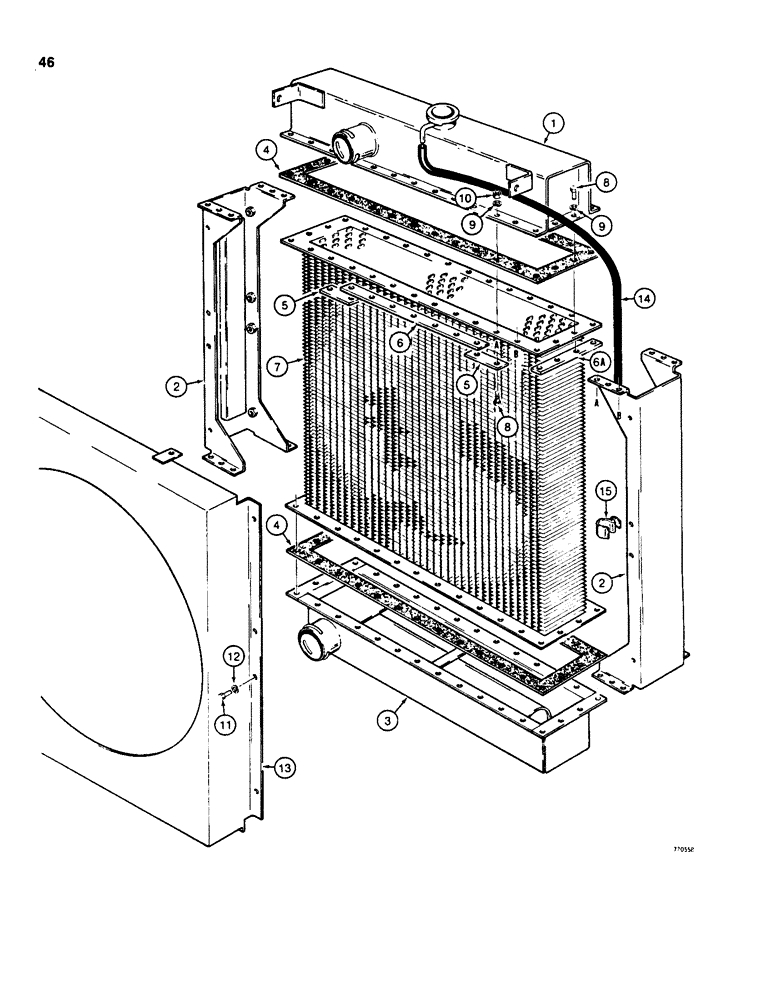

Схема запчастей Case 850C - (046) - RADIATOR (01) - ENGINE
11
13
8
8
4
10
2
3
2
5
14
6
15
9
4
1
5
9
12
7
6a

Артикул

Название

Примечание

Количество

R36354

RADIATOR

- General Thermodynamics, no. 136, Includes: Ref. 1 - 15

1шт.

R46679

RADIATOR - antisandblast, General Thermodynamics, no 136B, Includes: Ref. 1 - 15

1шт.

1

D78372

TANK

- top

1шт.

2

D78374

PANEL - sides

2шт.

3

D78373

TANK

- bottom

1шт.

4

D78375

GASKET

-, Serial Range: tanks-core

2шт.

5

D80440

PLATE - reinforcement, 2 holes

8шт.

6

D78377

PLATE - reinforcement, 7 holes

4шт.

6a

D78376

PLATE - reinforcement, 4 holes

4шт.

7

D78378

CORE

- R36354 radiator

1шт.

7

N7510

CORE - R46679 antisandblast radiator

1шт.

8

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

60шт.

9

92-5

LOCK WASHER,5/16"

60шт.

10

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

44шт.

11

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

8шт.

12

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

13

D78371

GUARD

COVER - radiator

1шт.

14

L35004

FLEXIBLE HOSE

HOSE, 0.31" ID x 57", Drain

1шт.

15

49768

CLIP

- hose retaining

2шт.

R34623

RADIATOR

- Perfex, not shown, service parts list not available

1шт.

Выбрано товаров: 20
