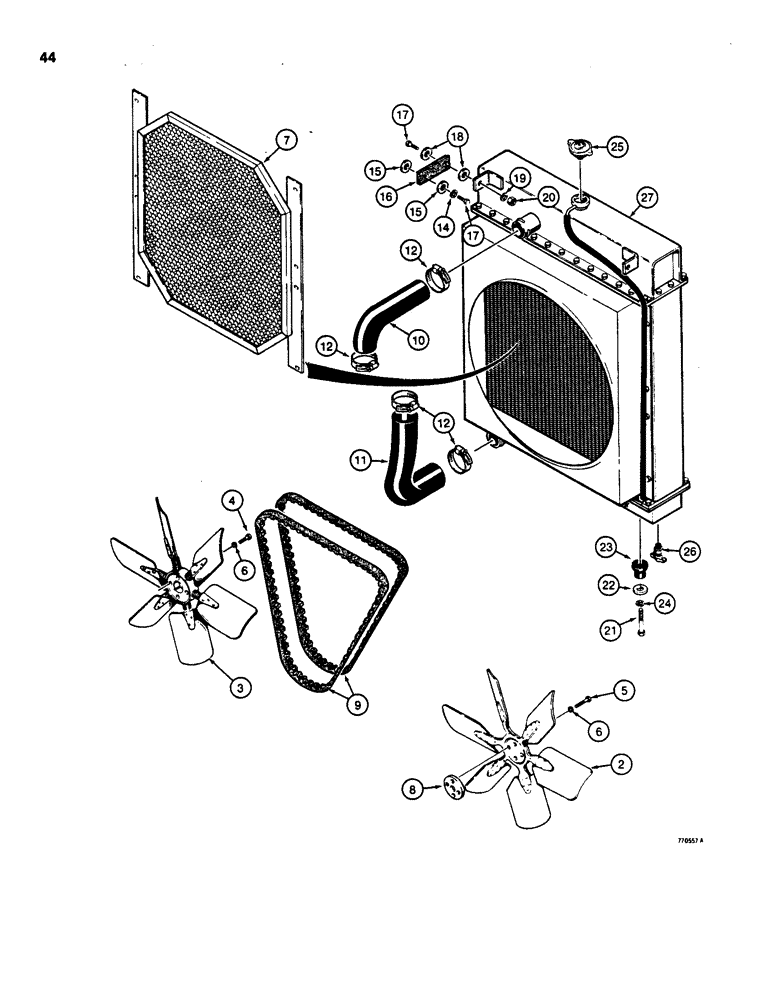

Запчасти Case 850C (044) - RADIATOR, FAN, AND HOSES (01) - ENGINE

1

A15519

FAN

- suction, not shown

1шт.

2

L73972

FAN

- pusher

1шт.

3

D42282

FAN

- reversible

1шт.

4

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Used with reversible fan only Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

5

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Used with pusher and suction fans only Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

6

92-6

LOCK WASHER,3/8"

4шт.

7

R35094

SCREEN - antisandblast, use with R36354 radiator only; do not use with R46679 antisandblast radiato

1шт.

8

R44858

SPACER

- used with pusher or suction fan only

1шт.

9

D47563

SET OF BELTS,0.69" W x 56.50" L

SET OF 2 BELTS , Fan and alternator 0.69" W x 56.50" L

1шт.

10

R34659

RADIATOR HOSE,2.50" ID x 5.50", SAE 20R4 Class SC, SAE 20R4 Class D-1, SAE 20R4 Class R

HOSE - upper

1шт.

11

R34658

RADIATOR HOSE,2.62" ID x 8.00", SAE 20R4Class D-1, SAE 20R4 Class SC, SAE 20R4 Class R

HOSE - lower

1шт.

12

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - adjustable, radiator hoses

4шт.

14

92-6

LOCK WASHER,3/8"

2шт.

15

39519

WASHER,10.31mm ID x 34.9mm OD x 3.57mm Thk

- special

4шт.

16

D73500

STRAP

- radiator mounting

2шт.

17

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

18

39519

WASHER,10.31mm ID x 34.9mm OD x 3.57mm Thk

- special

4шт.

19

92-6

LOCK WASHER,3/8"

2шт.

20

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

21

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex head, 1/2" - 13 NC x 2-1/4"

2шт.

22

D25022

WASHER

- special

2шт.

23

R29799

SHOCK ABSORBER

INSULATOR - rubber

2шт.

24

92-8

LOCK WASHER,1/2"

2шт.

25

D25826

CAP

- radiator, 7 psi (48 kPa)

1шт.

26

217-92

COCK

VALVE - drain

1шт.

27

REF

INSTRUCTION

RADIATOR ASSEMBLY - see figure 46

1шт.
