Запчасти Case 850C (042) - ENGINE AND TORQUE CONVERTER MOUNTING (01) - ENGINE

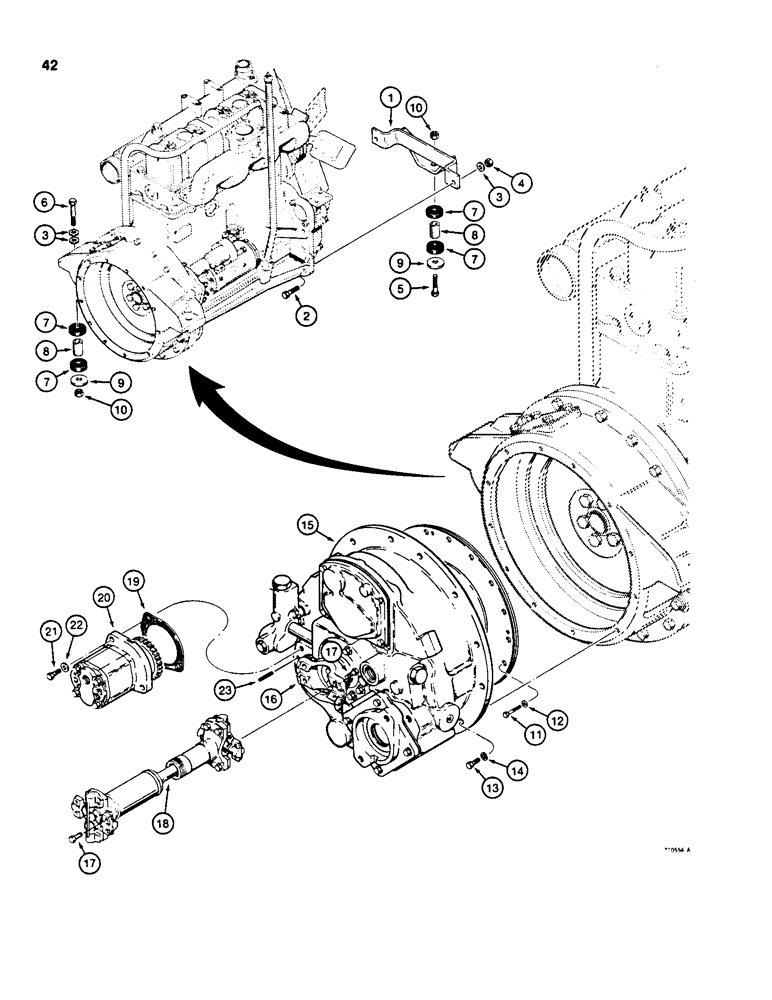

Схема запчастей Case 850C - (042) - ENGINE AND TORQUE CONVERTER MOUNTING (01) - ENGINE
7
17
8
1
5
3
21
15
4
12
2
20
13
6
23
3
10
17
7
16
7
7
9
8
10
19
22
9
14
18
11

Артикул

Название

Примечание

Количество

1

R34639

BRACKET

SUPPORT - engine mounting

1шт.

2

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

2шт.

3

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

6шт.

4

131-657

LOCK NUT,3/4"-10, GB

NUT - hex, self-locking, 3/4" - 10 NC

2шт.

5

13-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

1шт.

6

13-1268

BOLT,Hex, 3/4" - 10 x 4-1/4", Gr 5

- hex head, 3/4" - 10 NC x 4-1/2"

2шт.

7

R32663

SPACER

INSULATOR - vibration

6шт.

8

R27264

SPACER

- mounting

3шт.

9

D31854

WASHER

- hardened

3шт.

10

131-657

LOCK NUT,3/4"-10, GB

NUT - hex, self-locking, 3/4" - 10 NC

3шт.

11

121-205

LOCK BOLT,Lock Place, Hex, 3/8" - 16 x 3/4", Gr 8

BOLT - self-locking, 3/8" - 16 NC x 3/4", grade 8

16шт.

12

R14978

WASHER,9.91mm ID x 22.23mm OD x 1.52mm Thk

- special

16шт.

13

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

12шт.

14

92-6

LOCK WASHER,3/8"

12шт.

15

REF

INSTRUCTION

TORQUE CONVERTER - see figures 116 - 120

1шт.

16

D31315

YOKE

- drive

1шт.

17

28-616

BOLT,Hex, 3/8" - 24 x 1", Gr 8

8шт.

18

R34622

SHAFT

DRIVE SHAFT - parts list figure 124

1шт.

19

D32000

GASKET

- pump

1шт.

20

R30678

PUMP

- torque converter, parts list figure 122

1шт.

21

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

22

D32117

COPPER WASHER

WASHER, COPPER

2шт.

23

138-88

LOCK PIN,3/16" x 1/2", Slotted

PIN, , Pump locating 3/16" x 1/2", Slotted

1шт.

Выбрано товаров: 23
