Запчасти Case 850C (038) - ENGINE GASKET KITS, 336BD AND 336BDT DIESEL ENGINE, VALVE GRIND KIT (01) - ENGINE

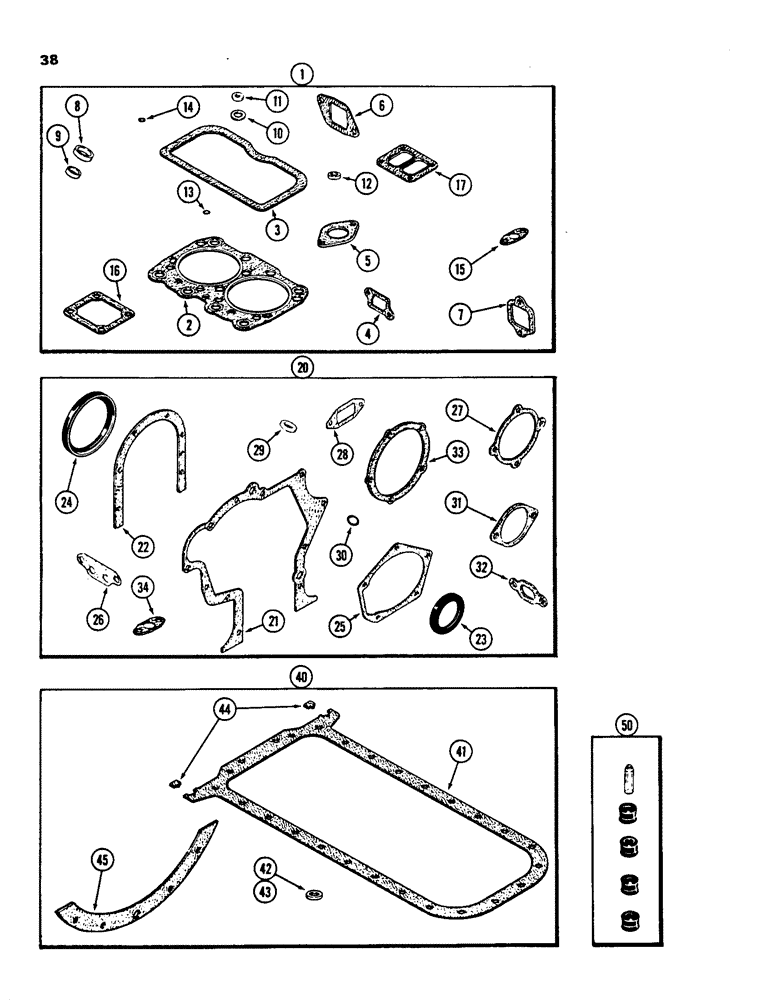

Схема запчастей Case 850C - (038) - ENGINE GASKET KITS, 336BD AND 336BDT DIESEL ENGINE, VALVE GRIND KIT (01) - ENGINE
42
41
23
32
4
7
27
13
34
30
3
45
14
40
5
28
12
22
1
25
17
6
9
20
10
15
50
2
43
44
21
8
11
24
33
26
29
16
31

Артикул

Название

Примечание

Количество

1

A46367

KIT

GASKET KIT - valve grind, Includes: Ref. 2 - 17

1шт.

For complete engine overhaul order 1 - A157302, with 1 - A44075 and 1 - A43005.

1шт.

2

A138397

CYLINDER HEAD GASKET

- cylinder head

2шт.

3

A65734

CYLINDER HEAD GASKET

- cylinder head cover

2шт.

4

A58637

MANIFOLD GASKET

- water manifold

2шт.

5

G46907

GASKET

- thermostat housing

1шт.

6

A58662

MANIFOLD GASKET

- intake manifold

4шт.

7

A58895

GASKET

- exhaust manifold (Metal faced) (336BDT)

4шт.

7

A58666

MANIFOLD GASKET

- exhaust manifold (Asbestos faced) (336BD) (Not Used)

4шт.

8

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- injector nozzle body

4шт.

9

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- injector nozzle carbon stop

4шт.

10

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

- breather tube, lower

2шт.

11

A34133

GASKET

- breather tube, upper

2шт.

12

A23684

GASKET

GASKET - cover studs

4шт.

13

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

- rocker shaft oil tube

2шт.

14

A58628

SEAL,8mm ID x 13.77mm OD x 2.16mm Thk

- valve stem

8шт.

15

A58892

GASKET,1.59mm Thk

- turbo oil drain tube

1шт.

16

A58910

GASKET

- turbo air intake elbow

1шт.

17

A58899

GASKET,0.45mm Thk

- turbocharger

2шт.

20

A44075

GASKET KIT

- cylinder block, Includes: Ref. 21 - 34

1шт.

For complete engine overhaul order 1 - A157302, with 1 - A44075 and 1 - A43005.

1шт.

21

A58612

GASKET

- timing gear cover, cylinder block kit

1шт.

22

A32830

GASKET

- rear seal retainer, cylinder block kit

1шт.

23

A62049

OIL SEAL

- oil, crankshaft, front, cylinder block kit

1шт.

24

A62050

OIL SEAL

- oil, crankshaft, rear, cylinder block kit

1шт.

25

A58615

GASKET

- fuel pump cover, cylinder block kit

1шт.

26

A58756

OIL PAN GASKET SET

- oil filter base, cylinder block kit

1шт.

27

A58646

GASKET

- water pump to body, cylinder block kit

1шт.

28

A58649

GASKET

- water pump body to block, cylinder kit

1шт.

29

A58613

SEALING WASHER

GASKET - timing window plug, cylinder block kit

1шт.

30

A64434

O-RING,0.93" ID x 1.142" x 0.106"

- oil filter base (Not used this application), cylinder block kit

3шт.

31

A58617

GASKET

- (Not used this application), cylinder block kit

1шт.

32

A58670

GASKET

- (Not used this application), cylinder block kit

1шт.

33

A76656

GASKET

- (Not used this application), cylinder block kit

1шт.

34

A58680

OIL PAN GASKET SET

- (Not used this application), cylinder blockkit

1шт.

40

A43005

GASKET KIT

- oil pan, Includes: Ref. 41 - 45

1шт.

For complete engine overhaul order 1 - A157302, with 1 - A44075 and 1 - A43005.

1шт.

41

NSS

NOT SOLD SEPARAT

GASKET - oil pan kit

1шт.

42

A27968

RING

- drain plug, oil pan kit

1шт.

43

A58608

GASKET

- drain plug, oil pan kit

1шт.

44

A62402

GASKET

- (Not used this application), oil pan kit

2шт.

45

A57966

GASKET

- (Not used this application), oil pan kit

1шт.

50

M20614

SEAL KIT

SEAL KIT - valves (Incl. 4 seals and installation sleeve), oil pan kit

1шт.

Выбрано товаров: 43
