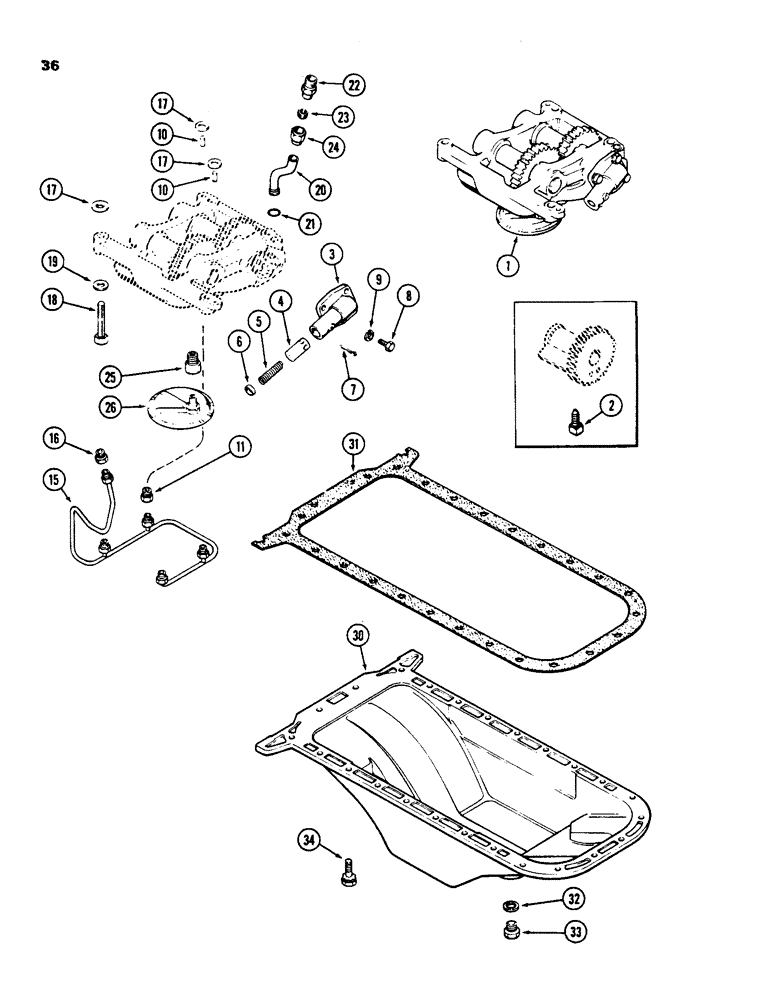

Запчасти Case 850C (036) - BALANCER AND OIL PUMP, 336BD AND 336BDT DIESEL ENGINES (01) - ENGINE

1

A66168

PUMP, ENGINE OIL

BALANCER ASSEMBLY - engine, Includes: Ref. 2 - 11

1шт.

A166242 Shim (.002 Thick) Shims Balancer to Block

1шт.

2

181-675

SET SCREW,Sq Hd, 1/2"-13 x 1"

SCREW - set (1/2 x 1-1/4" N.C., sq. hd., dog pt.)

4шт.

3

A153795

COVER

- oil pump (Replaces A61129)

1шт.

4

A65083

VALVE

- relief, oil pump

1шт.

5

A151960

SPRING

- relief valve, 2-1/16" (52.4 mm) free length

1шт.

6

41-1011

PLUG,Cup, 11/16"

- relief valve, 11/16" (175 mm) cup type

1шт.

7

132-36

COTTER PIN,Ext Prong Sq Cut, 3/32" x 2"

PIN - cotter, 3/32 x 1-1/2" (2.4 x 37.2 mm)

1шт.

8

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

3шт.

8

113-176

BOLT,Hex, 5/16" - 18 x 1-3/8", Gr 5

- 5/16 x 1-3/8" NC hex

1шт.

9

92-5

LOCK WASHER,5/16"

4шт.

10

A8134

PIN

- dowel, balancer locating, 3/8 x 3/4" (95 x 191 mm)

4шт.

11

222-1012

HYD CONNECTOR,7/16"-24 Inv Fl x 1/8" NPT

CONNECTOR - manifold to balancer

4шт.

15

A62002

MANIFOLD

- balancer oil supply

1шт.

16

222-1012

HYD CONNECTOR,7/16"-24 Inv Fl x 1/8" NPT

CONNECTOR - manifold to block

1шт.

17

G49401

SHIM,.005" Thk

Mounting (0.127 mm) .005" Thk

1шт.

17

G49402

SHIM,.010" Thk

Mounting (0.254 mm) .010" Thk

1шт.

18

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

- 1/2 x 2-1/2" N.C. hex

2шт.

18

113-427

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

2шт.

19

A150672

WASHER

- balancer bolt

4шт.

20

A61130

TUBE

-, Serial Range: pump-block

1шт.

21

A64436

O-RING,0.549" ID x 0.755" OD

- tube

1шт.

22

222-31

HYD CONNECTOR,1"-18 x 1/2" NPTF w/Nut

CONNECTOR ASSEMBLY - pump tube, Includes: Ref. 23 and 24

1шт.

23

222-106

SLEEVE,5/8" Tube

- (for ) 5/8" Tube

1шт.

24

222-116

TUBE NUT,1"-18

NUT - (for 5/8" tube)

1шт.

25

A22591

ADAPTER

-, Serial Range: screen-balancer

1шт.

26

A22590

FILTER SCREEN

SCREEN ASSEMBLY - float (oil inlet)

1шт.

30

A65167

PAN

- oil

1шт.

31

NSS

NOT SOLD SEPARAT

GASKET - oil pan (See A43005, Figure 38)

1шт.

32

A27968

RING

- drain plug, oil pan

1шт.

33

A34826

PLUG,7/8" - 18 ORB

- drain, oil pan

1шт.

34

193-527

WASHER,Hex, 3/8" - 16 x 1 1/4"

BOLT - 3/8 x 1-1/4" N.C. hex., Sems, oil pan

24шт.
