Запчасти Case 850C (032) - FLYWHEEL HOUSING, 336BD AND 336BDT DIESEL ENGINES (01) - ENGINE

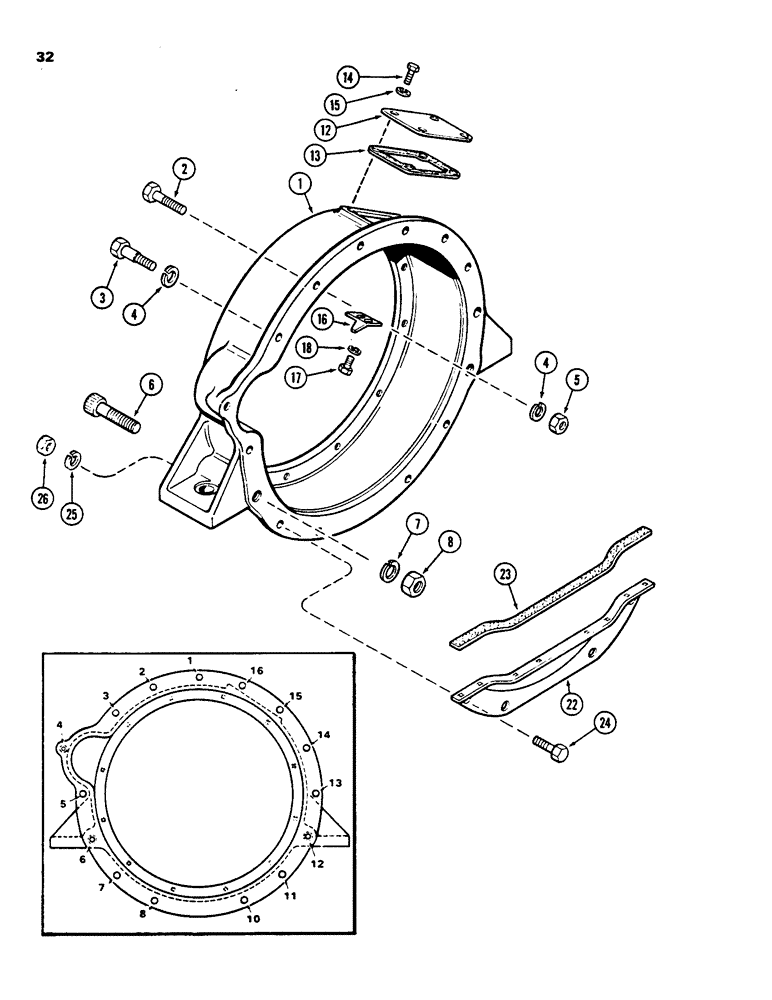

Схема запчастей Case 850C - (032) - FLYWHEEL HOUSING, 336BD AND 336BDT DIESEL ENGINES (01) - ENGINE
6
8
26
4
22
7
23
16
12
17
14
4
2
24
25
13
15
1
18
5
3

Артикул

Название

Примечание

Количество

1

A137046

HOUSING

- flywheel

1шт.

2

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

- housing (1/2 x 1-3/8" NC hex) Holes 1, 2 and 16

3шт.

2

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

- housing (1/2 x 2-1/2" NC hex) Holes 4, 9 and 14

3шт.

3

A149765

STEP BOLT

BOLT - housing, shoulder (1/2" N.C. x 2-7/16")

1шт.

3

A149764

STEP BOLT

BOLT - housing, shoulder (1/2" NC x 3")

1шт.

4

92-8

LOCK WASHER,1/2"

8шт.

5

129-105

NUT,Hex, 1/2" - 13, Gr 5

5шт.

6

166-138

12 PT SCREW,Flg, 3/4" - 10 x 3", Gr 8

BOLT - housing (3/4 x 3" NC, 12 pt hd) Holes 6 and 12

2шт.

7

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

8

129-137

NUT,3/4"-10, G5

2шт.

12

A22584

COVER

PLATE - timing hole

1шт.

13

A22585

GASKET

- timing hole plate

1шт.

14

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

4шт.

15

92-5

LOCK WASHER,5/16"

4шт.

16

A139414

POINT

ER -flywheel timing

1шт.

17

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Pointer Hex, 1/4"-20 x 1/2", G5, Full Thd

2шт.

18

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

22

A64462

GUARD

SHIELD - dust

1шт.

23

A57144

GASKET

- dust shield

1шт.

24

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Shield, Holes 7, 8, 10 and 11 Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

25

92-8

LOCK WASHER,1/2"

4шт.

26

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

Выбрано товаров: 22
