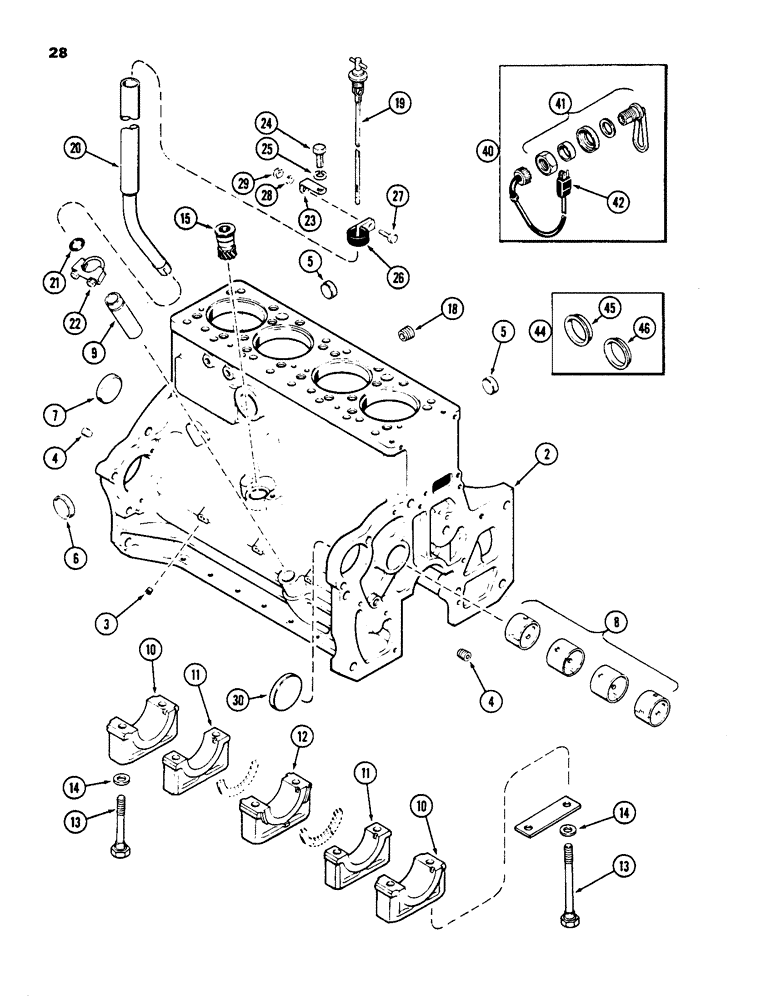

Запчасти Case 850C (028) - CYLINDER BLOCK, 336BD AND 336BDT DIESEL ENGINES (01) - ENGINE

A150862

ENGINE ASSEMBLY

BLOCK ASSEMBLY - short (Includes stripped block, camshaft, connecting rods and bearings, piston assembly, crankshaft and bearings and timing gears), Includes: Ref. 2 - 15

1шт.

2

A150863

CRANKCASE

BLOCK ASSEMBLY - stripped (Casting no. A58504), Includes: Ref. 3 - 15

1шт.

3

221-1849

PLUG

- oil gallery (1/8" P.T., hex. sckt. hd.)

4шт.

4

221-1843

PLUG

- oil gallery (3/8" PT hex sckt hd)

4шт.

5

A58568

PLUG,Cup, 1 3/8", Stainless

- water gallery, 1-3/8" (349 mm) cup type

2шт.

6

A58569

PLUG,Cup, 2", Stainless

- heater hole, 2" (508 mm) cup type

1шт.

7

A24361

PLUG

- camshaft hole, 2-3/8" (60.3 mm) cup type

1шт.

8

REF

INSTRUCTION

BUSHING - camshaft (See Figure 26)

1шт.

9

A34540

TUBE

- oil filler and dipstick

1шт.

10

A154391

CAP

-main bearing (wide)

2шт.

11

A154390

CAP

- main bearing (narrow)

2шт.

12

A154392

CAP

- main bearing, thrust (wide)

1шт.

13

A66948

STEP BOLT

BOLT - bearing caps (5/8 x 4-1/2" NC Special)

10шт.

14

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - bearing cap bolt

10шт.

15

A34266

DRIVE

ASSEMBLY - tachometer

1шт.

18

221-845

PLUG,Hex Soc, 3/4"-14

- (3/4" P.T. hex. sckt. hd.)(Used with N.A. engines only)

1шт.

19

A155635

DIPSTICK

- oil level

1шт.

20

A155590

TUBE

-extension, oil filler and dipstick

1шт.

21

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

- extension

1шт.

22

L47766

CLAMP

- tube

1шт.

23

A65120

BRACKET

- tube (to intake manifold)

1шт.

24

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Bracket Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

25

92-6

LOCK WASHER,3/8"

1шт.

26

D39138

CLAMP

- tube (to bracket)

1шт.

27

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

1шт.

28

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

29

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

30

41-1052

PLUG,Cup, 3 1/4"

- 3-1/4" (826 mm) cup type

1шт.

40

A155436

RESISTOR

HEATER KIT - block, Includes: Ref. 41 and 42

1шт.

41

NSS

NOT SOLD SEPARAT

ELEMENT - heater, block

1шт.

42

A44813

CABLE EXTENSION

CORD - heater, 12" (3048 mm) long, block

1шт.

44

A44006

SLEEVE

KIT - heater installation, block, Includes: Ref. 45 and 46

1шт.

45

NSS

NOT SOLD SEPARAT

SLEEVE - heater, for 2-1/16" (524 mm) dia hole, block

1шт.

46

NSS

NOT SOLD SEPARAT

SLEEVE - heater, for 2-1/8" (53.9 mm) dia. hole, block

1шт.
