Запчасти Case 850C (026) - CAMSHAFT, 336BD AND 336BDT DIESEL ENGINES (01) - ENGINE

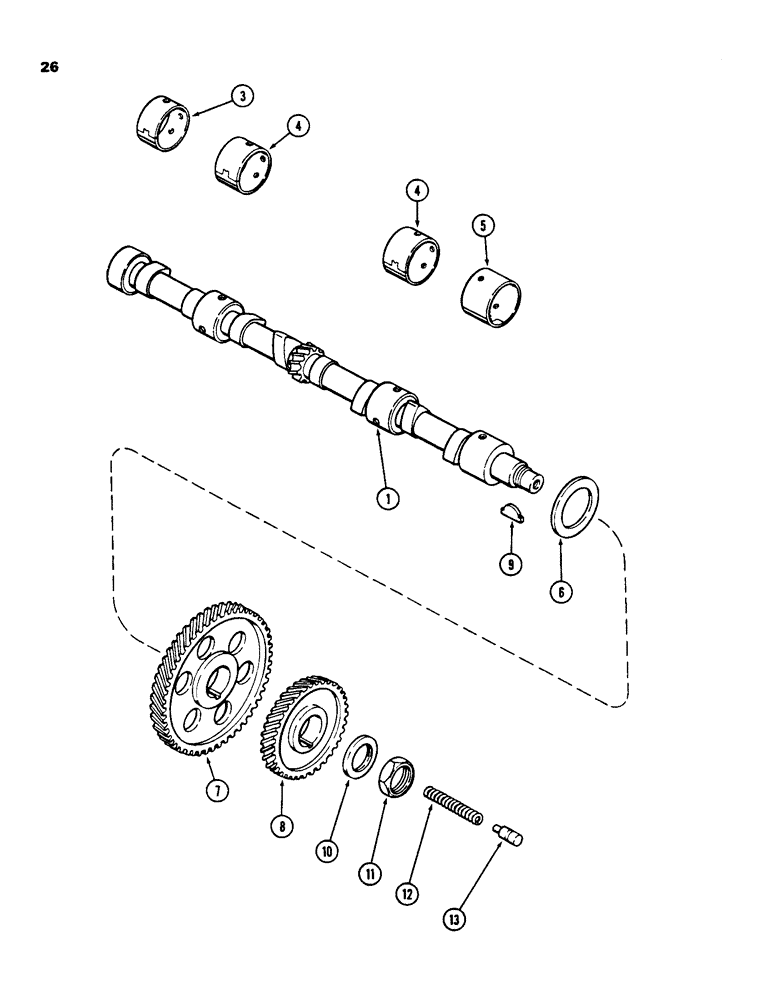

Схема запчастей Case 850C - (026) - CAMSHAFT, 336BD AND 336BDT DIESEL ENGINES (01) - ENGINE
4
11
12
1
6
5
9
8
10
3
7
4
13

Артикул

Название

Примечание

Количество

1

A66742

CAMSHAFT

- engine

1шт.

3

A23487

BUSHING,44.35mm ID x 60.3mm OD x 29.62mm L

- rear, 1-1/8" (28.6 mm) wide

1шт.

4

A21019

BUSHING,57.05mm ID x 60.33mm OD x 36.63mm L

- center, 1-7/16" (36.5 mm) wide

2шт.

5

A21018

BUSHING,57.11mm ID x 60.33mm OD x 42.32mm L

- front, 1-5/8" (413 mm) wide

1шт.

6

A21017

WASHER

-thrust

1шт.

7

A58592

GEAR

- camshaft

1шт.

8

A58593

GEAR

- idler drive

1шт.

9

126-227

WOODRUFF KEY,Hi-Pro, 1 1/4" Dia x 5/16" x 1"

KEY - camshaft (Hi-Pro type)

1шт.

10

A31038

THRUST WASHER

- locking

1шт.

11

A58595

NUT

- camshaft

1шт.

12

CASA27853

SPRING

- plunger

1шт.

13

A27852

PLUNGER

- thrust

1шт.

Выбрано товаров: 12
