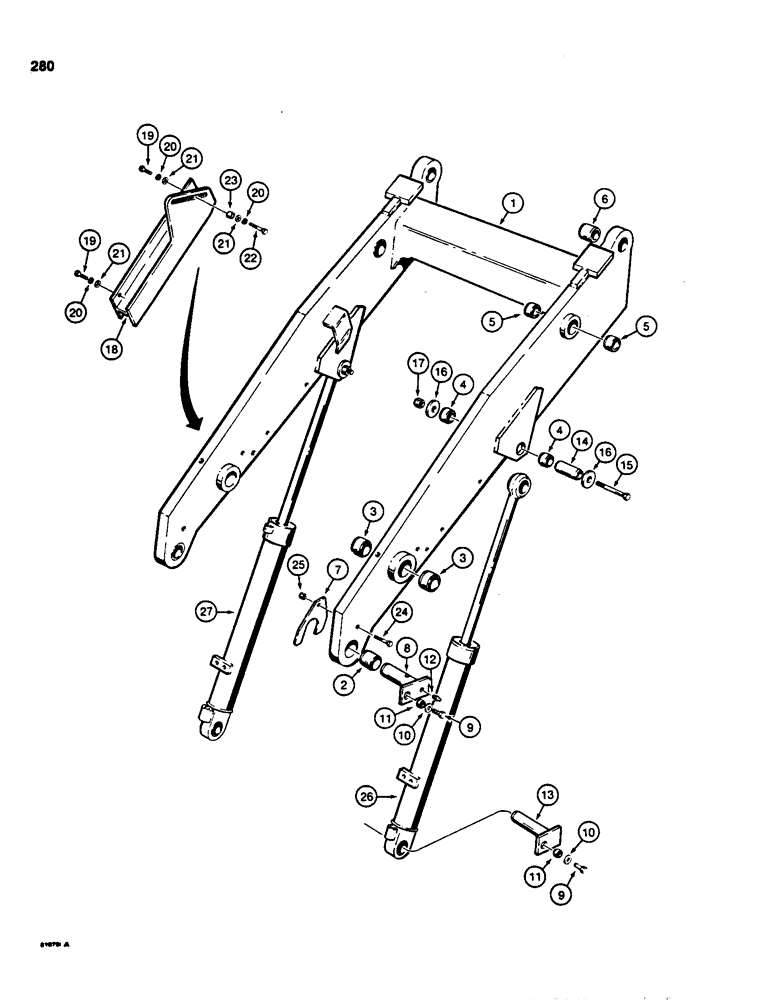

Запчасти Case 850C (280) - LOADER LIFT FRAME, LIFT CYLINDERS AND STRUT (07) - HYDRAULIC SYSTEM

1

R45320

ARM, LIFT

FRAME - loader lift, Includes: Ref. 2 - 6

1шт.

2

R31718

BUSHING

- lift frame, Serial Range: mounting-tractor

2шт.

3

R28252

BUSHING

- pivot, bucket cylinder link

4шт.

4

D33659

BUSHING,51.02mm ID x 63.5mm OD x 19.1mm L

- lift cylinder mounting

4шт.

5

D33024

BUSHING,51.02mm ID x 63.5mm OD x 25.4mm L

- at dump links

4шт.

6

D33023

BUSHING,51.02mm ID x 63.5mm OD x 50.8mm L

- at bucket

2шт.

7

R40703

SHIM

- .075" (1.9 mm) thick

1шт.

7

R40704

SHIM

- .141" (358 mm) thick

1шт.

7

R40705

SHIM

- .172" (437 mm) thick

1шт.

8

R32852

PIN

- lift, Serial Range: frame-tractor

2шт.

9

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

Use with Loctite 242 (blue) Hex, 3/4"-10 x 2", G5

4шт.

10

D31328

WASHER

- hardened, 3/4"

4шт.

11

T31129

BUSHING,19.66mm ID x 31.75mm OD x 17.48mm L

- pin mounting

4шт.

12

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

13

R32858

PIN

- lift, Serial Range: cylinder-tractor

2шт.

14

R33048

PIN

- lift cylinder to lift frame

2шт.

15

13-1284

CAPSCREW,Hex, 3/4" - 10 x 5 1/4", Gr 5

BOLT - hex head, 3/4" - 10 NC x 5-1/4"

2шт.

16

R40509

WASHER

- hardened

4шт.

17

131-657

LOCK NUT,3/4"-10, GB

NUT - hex, self-locking, 3/4" - 10 NC

2шт.

18

R49560

STRUT

- loader lift frame

1шт.

19

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

20

92-8

LOCK WASHER,1/2"

3шт.

21

95-8

WASHER,1/2"

flat 1/2"

3шт.

22

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex head, 1/2" - 13 NC x 1-3/4"

1шт.

23

D51323

BUSHING

- bolt

1шт.

24

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

2шт.

25

131-654

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

2шт.

26

G101212

CYLINDER ASSY.

CYLINDER - loader lift, right-hand, parts list figure 216

1шт.

27

G101213

CYLINDER ASSY.

CYLINDER - loader lift, left-hand, parts list figure 216

1шт.
