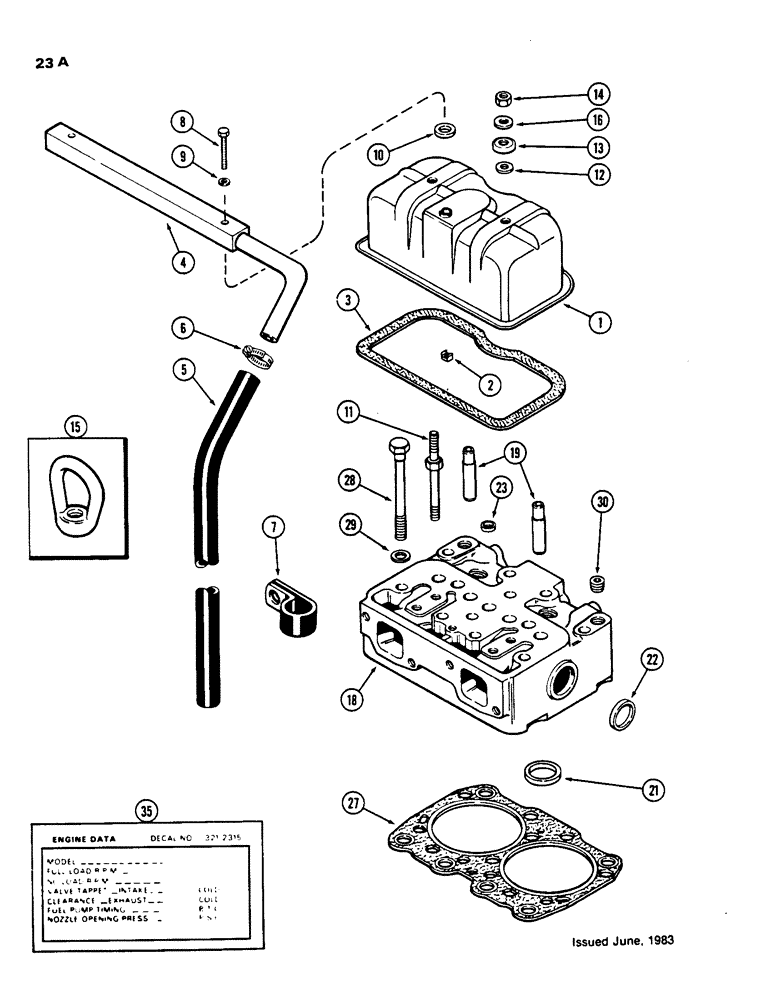

Запчасти Case 850C (023A) - CYLINDER HEAD AND COVER, 336BD AND 336BDT DIESEL ENGINES WITH SQUARE BREATHER TUBE (01) - ENGINE

1

A166170

COVER

COVER ASSEMBLY - cylinder head, Includes: Ref. 2

2шт.

2

131-114

SPRING NUT,Rtnr, 1/4" - 20, 0.25" High

NUT - 1/4" Tinnerman

1шт.

3

A156960

CYLINDER HEAD GASKET,3.05mm Thk

GASKET - cylinder head cover

2шт.

4

A166173

TUBE

TUBE - breather

1шт.

5

A137158

HOSE,1.00" ID x 24.00", SAE J200

Breather tube

1шт.

6

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose (1-3/16" to 1-3/4")

1шт.

7

D34033

CLAMP

CLIP - hose to flywheel housing

1шт.

8

182-587

SCREW,Cross Pan Hd, 1/4"-20 x 2 1/2"

BOLT - hex, 1/4-20 NC x 2-1/2"

2шт.

9

A166102

WASHER,6.45mm ID x 12.7mm OD x 0.81mm Thk

GASKET - tube, upper

2шт.

10

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

GASKET - tube, lower

2шт.

11

A67121

STUD

STUD - cover to head 7/16" N.C. x 6"

4шт.

12

A142098

GROMMET

GASKET - cover stud

4шт.

13

A156097

WASHER,11.94mm ID x 31.22mm OD x 1.32mm Thk

WASHER - cover stud

4шт.

14

129-104

NUT,7/16"-14, G5

NUT, 7/16"-14, G5

4шт.

15

A60567

EYE

EYE - engine lifting

2шт.

16

195-29

WASHER,7/16"

WASHER - 15/32 x 59/64 x 1/16" (12 x 23 x 2 mm)

4шт.

18

A67352

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, Includes: Ref. 19 - 23

2шт.

18

AR148939

REMAN-CYLINDER HEAD

Cylinder Head

2шт.

18

AC148939

CORE-CYLINDER HEAD

Return number

2шт.

19

A41783

GUIDE

GUIDE - intake and exhaust valves

4шт.

21

A58619

INSERT

INSERT - exhaust valve seat

2шт.

22

A34124

PLUG,Cup, 1 5/8", Stainless

PLUG - 1-5/8" (404 mm) cup type

2шт.

23

A58620

PLUG,Cup, 3/4", Stainless

PLUG - 3/4" (191 mm) cup type

3шт.

27

REF

INSTRUCTION

GASKET - cylinder head (See Figure 38)

2шт.

28

A62732

STEP BOLT

BOLT - cylinder head (5/8 x 5-5/8" NC hex)

20шт.

29

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - cylinder head bolt

20шт.

30

221-843

PLUG,Hex Soc, 3/8"-18

PLUG - cylinder head (3/8" P.T., hex. sckt. hd.)

4шт.

35

321-6312

DECAL

DECAL - engine data (on valve cover)

1шт.
