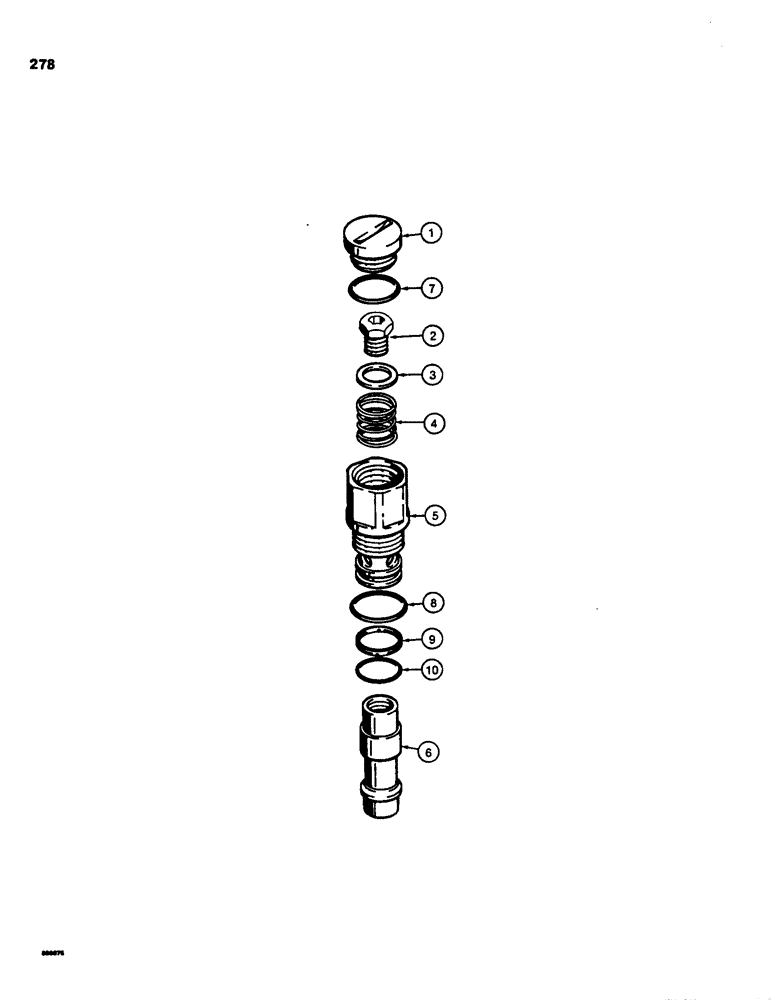

Запчасти Case 850C (278) - D78449 ANTICAVITATION VALVE, USED IN ALL CONTROL VALVE LIFT SECTIONS (07) - HYDRAULIC SYSTEM

D78449

VALVE

- anticavitation, Includes: Ref. 1 - 12

1шт.

1

R30182

PLUG

- anticavitation valve, large

1шт.

2

D78450

PLUG

- special

1шт.

3

D78444

WASHER

- special

1шт.

4

R30196

SPRING

- anticavitation valve

1шт.

5

NSS

NOT SOLD SEPARAT

BODY - anticavitation valve

1шт.

6

D78451

VALVE POPPET

POPPET - anticavitation valve

1шт.

R30184

SEAL

KIT - seal, Includes: Ref. 7 - 12

1шт.

7

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- plug, valve

1шт.

8

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- body, large

1шт.

9

NSS

NOT SOLD SEPARAT

BACKUP RING - small O-ring, body

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - body, small

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - small, not used in this valve

1шт.

12

NSS

NOT SOLD SEPARAT

RING - backup, not used in this valve

1шт.
