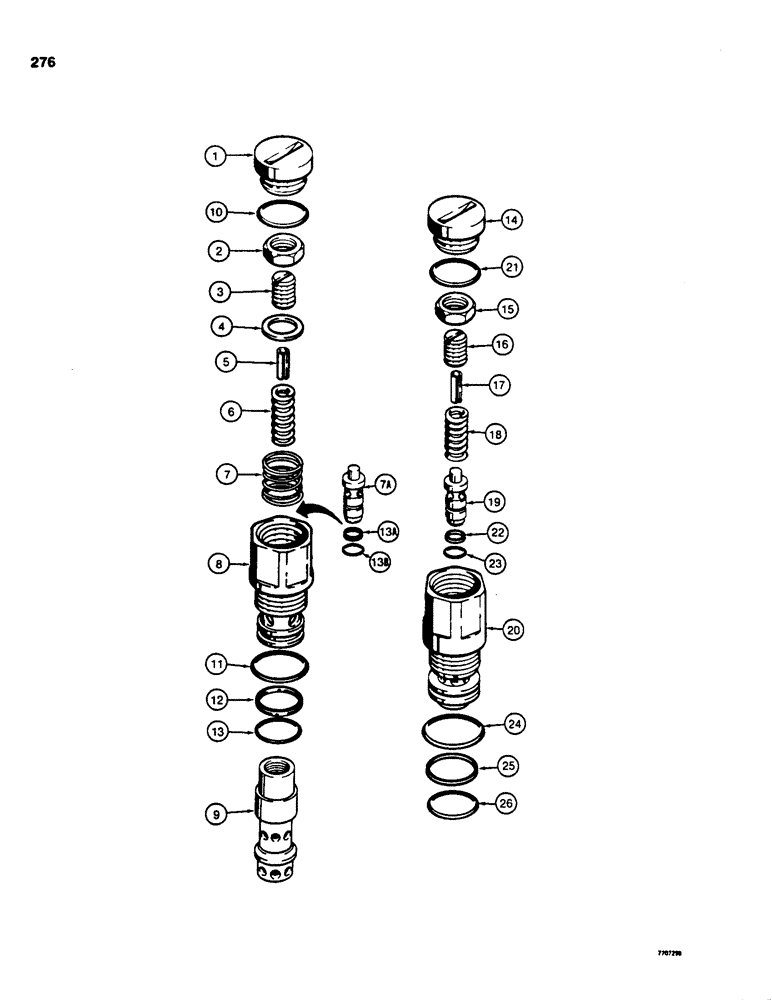

Запчасти Case 850C (276) - ANTICAVITATION AND CIRCUIT RELIEF VALVE ASSEMBLIES (07) - HYDRAULIC SYSTEM

D78441

VALVE

- anticavitation and circuit relief, used in loader bucket sections only, Includes: Ref. 1 - 13B

1шт.

D78453

VALVE

- anitcavitation and circuit relief, used in ripper or clam bucket sections only, Includes: Ref. 1 - 13B

1шт.

1

R30182

PLUG

- relief valve

1шт.

2

R30180

NUT

- hex, special

1шт.

3

R30179

ADJUSTMENT SCREW

- poppet, relief valve

1шт.

4

D78444

WASHER

- special

1шт.

5

138-91

LOCK PIN,3/16" x 11/16", Slotted

PIN, , Relief valve 3/16" x 11/16", Slotted

1шт.

6

R30181

VALVE SPRING

SPRING - inner

1шт.

7

R30196

SPRING

- outer

1шт.

7a

D78443

PISTON

POPPET - circuit relief valve

1шт.

8

NSS

NOT SOLD SEPARAT

BODY - relief valve

1шт.

9

D78445

SPOOL

POPPET - anticavitation valve

1шт.

R30184

SEAL

KIT - seal, Includes: Ref. 10 - 13B

1шт.

10

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- plug

1шт.

11

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- large, body

1шт.

12

NSS

NOT SOLD SEPARAT

BACKUP RING - small O-ring, body

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - small, body

1шт.

13a

NSS

NOT SOLD SEPARAT

BACKUP RING - poppet, circuit relief valve

1шт.

13b

NSS

NOT SOLD SEPARAT

O-RING - poppet, circuit relief valve

1шт.

D78442

VALVE

CIRCUIT RELIEF VALVE - used in loader bucket section, ripper, clam bucket or dual pull behind sections only, Includes: Ref. 14 - 26

1шт.

D78448

VALVE

CIRCUIT RELIEF VALVE - used in loader lift sections only, Includes: Ref. 14 - 26

1шт.

14

R30182

PLUG

- circuit relief valve

1шт.

15

R30180

NUT

- hex, special, circuit relief valve

1шт.

16

R30179

ADJUSTMENT SCREW

- special, circuit relief valve

1шт.

17

138-91

LOCK PIN,3/16" x 11/16", Slotted

PIN, , Circuit relief valve 3/16" x 11/16", Slotted

1шт.

18

R30181

VALVE SPRING

SPRING - circuit relief valve

1шт.

19

NSS

NOT SOLD SEPARAT

POPPET - circuit relief valve

1шт.

20

NSS

NOT SOLD SEPARAT

BODY - circuit relief valve

1шт.

R30184

SEAL

KIT - seal, circuit relief valve, Includes: Ref. 21 - 26

1шт.

21

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- plug, circuit relief valve

1шт.

22

NSS

NOT SOLD SEPARAT

BACKUP RING - poppet, circuit relief valve

1шт.

23

NSS

NOT SOLD SEPARAT

O-RING - poppet, circuit relief valve

1шт.

24

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- body, large, circuit relief valve

1шт.

25

NSS

NOT SOLD SEPARAT

BACKUP RING - small O-ring, body, circuit relief valve

1шт.

26

NSS

NOT SOLD SEPARAT

O-RING - body, small, circuit relief valve

1шт.
