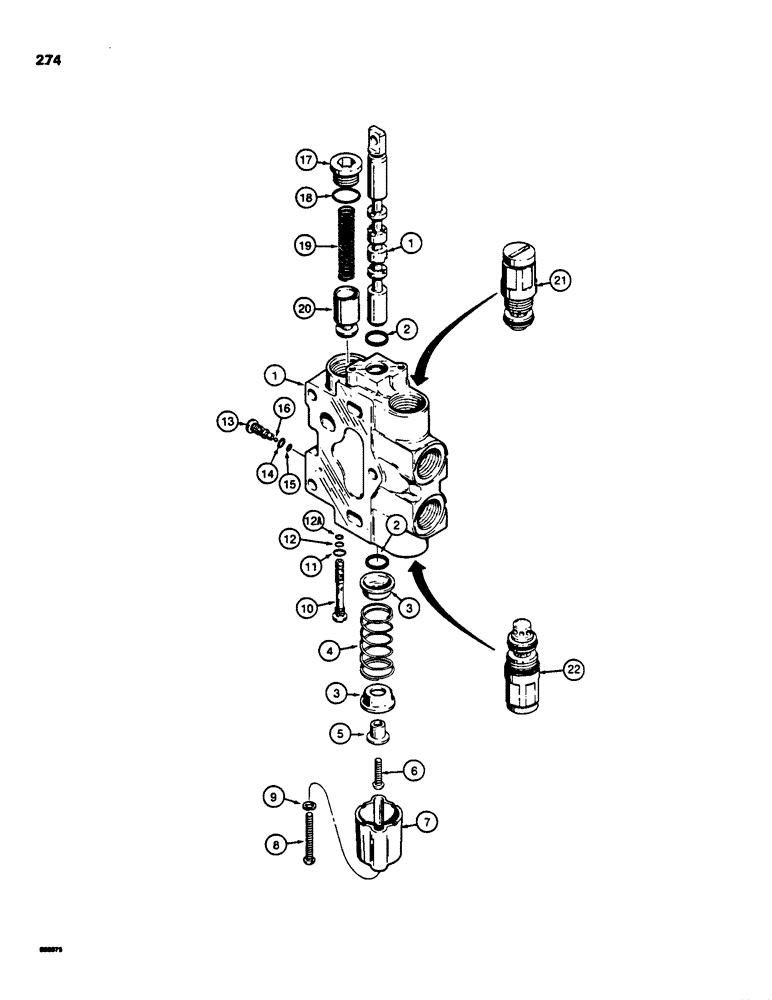

Запчасти Case 850C (274) - D87078 AND D88766 AUXILIARY SECTIONS, RIPPER, CLAM BUCKET, OR DUAL PULL BEHIND (07) - HYDRAULIC SYSTEM

D87078

VALVE

SECTION - ripper or dual pull behind, identification no. 215, Includes: Ref. 1 - 22

1шт.

D88766

VALVE

SECTION - clam bucket or ripper, identification no. 214, Includes: Ref. 1 - 22

1шт.

1

NSS

NOT SOLD SEPARAT

BODY AND SPOOL - section

1шт.

2

G46908

O-RING

- spool

2шт.

3

CASR30191

RETAINER

- centering spring

2шт.

4

R30192

SPRING

CENTERING SPRING - spool

1шт.

5

D78452

BUSHING

SPACER - spool

1шт.

6

113-64

PREV TORQUE BOLT,Locking, 1/4"-20 x 1", G5

BOLT, Locking, 1/4"-20 x 1", G5

1шт.

7

D78454

HOUSING

- centering spring

1шт.

8

61-432

HEX SOC SCREW,1/4"-20 x 2"

MACHINE SCREW - round head slotted, 1/4"-20 NC x 2-1/4" (Replaces 75-436)

2шт.

9

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

D87080

VALVE

SHUTTLE - primary, Includes: Ref. 10 - 12A

1шт.

10

NSS

NOT SOLD SEPARAT

BODY - shuttle

1шт.

N6632

SEAL KIT

- seal, Includes: Ref. 11 - 12A

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - outer

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - center

1шт.

12a

NSS

NOT SOLD SEPARAT

O-RING - inner

1шт.

D87081

SCREW

SHUTTLE - secondary, Includes: Ref. 13 - 15

1шт.

13

NSS

NOT SOLD SEPARAT

BODY - shuttle

1шт.

R30185

SEAL KIT

KIT - seal, Includes: Ref. 14 and 15

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING - large

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING - small

1шт.

16

211-255

BALL,3/16 Dia

(5 mm), steel, secondary shuttle 3/16 Dia

1шт.

17

9841223

PLUG,1-1/16" - 12 ORB

Load check, Incl. Ref. 18 Hex Soc, 1 1/16"-12 ORB

1шт.

18

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- plug

1шт.

19

R30189

SPRING

- load check

1шт.

20

D87082

VALVE POPPET

POPPET - load check

1шт.

21

D78442

VALVE

CIRCUIT RELIEF VALVE - parts list figure 276, D87078 section uses 2, D88766 section uses 1

1-2шт.

22

D78453

VALVE

- anticavitation and relief, parts list figure 276, D88766 section only

1шт.
