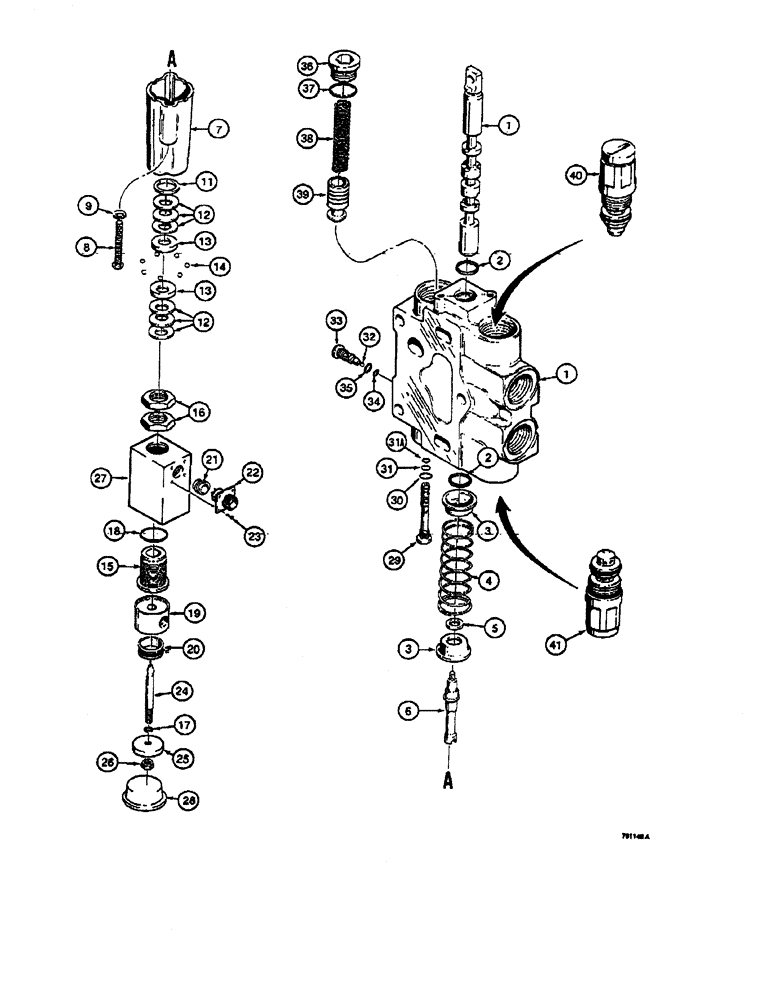

Запчасти Case 850C (268) - D88764 LOADER BUCKET SECTION (07) - HYDRAULIC SYSTEM

D88764

LOCK VALVE

SECTION - loader bucket, identification no. 405, Includes: Ref. 1 - 41

1шт.

1

NSS

NOT SOLD SEPARAT

BODY AND SPOOL - section

1шт.

2

G46908

O-RING

O-RING - spool

2шт.

3

R30191

WASHER

RETAINER - centering spring

2шт.

4

R30192

SPRING

CENTERING SPRING - spool

1шт.

5

R30193

BUSHING

SPACER - detent shaft

1шт.

6

D87086

SHAFT

SHAFT - detent, 3 - 9/16" (91 mm) long, no longer used, order N7713 detent shaft and N7714 magnetic detent shaft for repairs

1шт.

6

N7713

SHAFT

SHAFT - detent, 3 - 11/16" (93 mm) long

1шт.

7

D87092

HOUSING

HOUSING - detent

1шт.

8

75-436

SCREW,Rd, 1/4" - 20 x 2 1/4"

MACHINE SCREW - round head, slotted, 1/4" - 20 NC x 2 - 1/4"

2шт.

9

92-4

LOCK WASHER,1/4"

2шт.

11

D78438

WASHER

WASHER - special

1шт.

12

D78437

WASHER

BELLEVILLE SPRING - detent

6шт.

13

D78439

RETAINER

RETAINER - balls

2шт.

14

211-257

BALL,1/4" Dia

(6 mm)

7шт.

15

D87091

CONNECTOR, ELEC

CONNECTOR CONNECTOR - solenoid

1шт.

16

D87093

JAM NUT

NUT - hex, jam, special

2шт.

17

D87094

BACK-UP RING

RING - magnetic detent shaft

1шт.

18

C14199

O-RING

O-RING - solenoid connector

1шт.

19

D87090

SOLENOID

SOLENOID - magnetic detent

1шт.

20

D78429

SOLENOID

COIL - solenoid

1шт.

21

D78433

PLUG

PLUG - socket

1шт.

22

R33408

CONNECTOR, ELEC

CONNECTOR SOCKET - magnetic detent

1шт.

23

182-5

SCREW,Sl Pan Hd, #4 - 40 x 3/8"

#4-20 NC x 3/8"

4шт.

24

D87089

SHAFT

SHAFT - magnetic detent, used with D87086 detent shaft, no longer used, order N7713 detent shaft and N7714 magnetic detent shaft for repairs

1шт.

24

N7714

SHAFT

SHAFT - magnetic detent, used with N7713 detent shaft

1шт.

25

D87088

WASHER

WASHER - magnetic detent shaft

1шт.

26

D87087

JAM NUT

NUT - hex, jam, special

1шт.

27

D87095

HOUSING

HOUSING - magnetic detent

1шт.

28

353-414

PLUG,Dome, 1.375" Hole, Nylon

1шт.

D87080

VALVE

SHUTTLE ASSEMBLY - primary, Includes: Ref. 29 - 31A

1шт.

29

NSS

NOT SOLD SEPARAT

BODY - shuttle

1шт.

N6632

SEAL KIT

KIT - seal, Includes: Ref. 30 - 31A

1шт.

30

NSS

NOT SOLD SEPARAT

O-RING - outer

1шт.

31

NSS

NOT SOLD SEPARAT

O-RING - center

1шт.

31a

NSS

NOT SOLD SEPARAT

O-RING - inner

1шт.

32

211-255

BALL,3/16 Dia

steel (5 mm), secondary shuttle

1шт.

D87081

SCREW

SHUTTLE ASSEMBLY - secondary, Includes: Ref. 33 - 35

1шт.

33

NSS

NOT SOLD SEPARAT

BODY - shuttle

1шт.

R30185

SEAL KIT

KIT - seal, Includes: Ref. 34 and 35

1шт.

34

NSS

NOT SOLD SEPARAT

O-RING - small

1шт.

35

NSS

NOT SOLD SEPARAT

O-RING - large

1шт.

36

9841223

PLUG,1-1/16" - 12 ORB

Load check, Incl. Ref. 37

1шт.

37

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Plug

1шт.

38

R30189

SPRING

SPRING - load check

1шт.

39

D87082

VALVE POPPET

POPPET - load check

1шт.

40

D78441

VALVE

VALVE - anticavitation and relief, parts list figure 276

1шт.

41

D78442

VALVE

CIRCUIT RELIEF VALVE - parts list figure 276

1шт.
