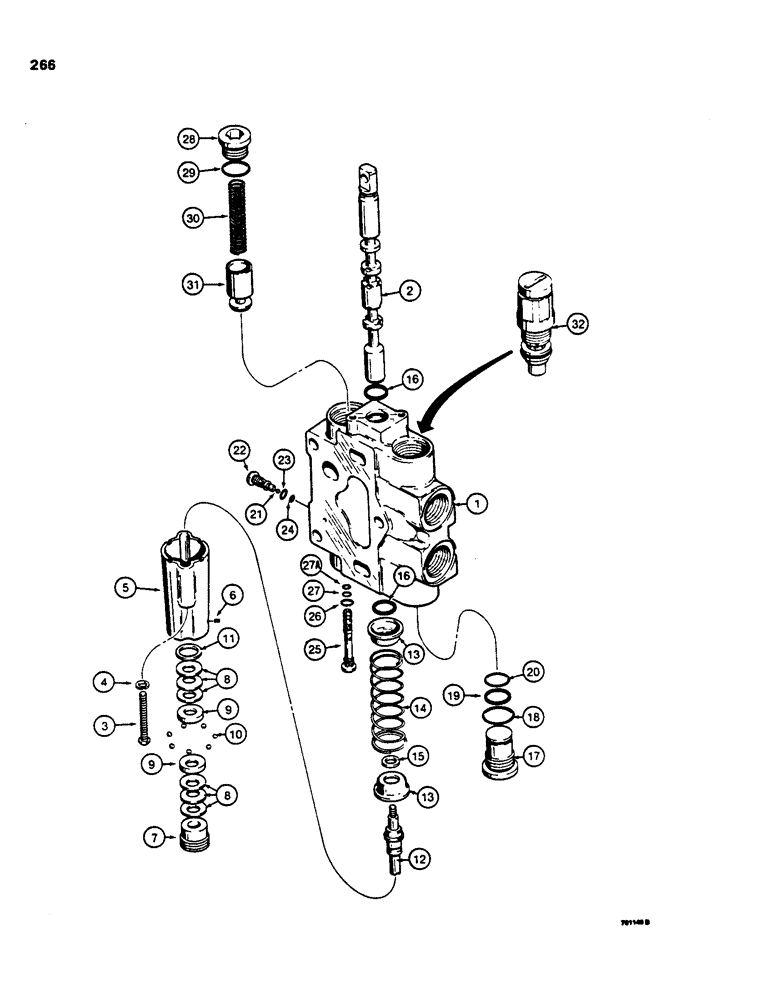

Запчасти Case 850C (266) - D87074 DOZER LIFT SECTION (07) - HYDRAULIC SYSTEM
№
Артикул
Название
Примечание
Количество
D87074
VALVE
SECTION - dozer lift, identification no 307, Includes: Ref. 1 - 32
1шт.
1
NSS
NOT SOLD SEPARAT
BODY - section
1шт.
2
NSS
NOT SOLD SEPARAT
SPOOL - section
1шт.
3
61-436
HEX SOC SCREW,1/4"-20 x 2 1/4"
MACHINE SCREW - round head, slotted, 1/4"-20 NC x 2-1/4" (replaces 75-436)
2шт.
4
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
2шт.
5
R30190
HOUSING
- detent
1шт.
6
R30195
SCREW
SET SCREW - special
1шт.
7
R30194
PLUG
- detent
1шт.
8
D78437
WASHER
BELLEVILLE SPRING - detent
6шт.
9
D78439
RETAINER
- ball
2шт.
10
211-257
BALL,1/4" Dia
(6 mm), Steel 1/4" Dia
7шт.
11
D78438
WASHER
- special
1шт.
12
D78447
SHAFT
- detent
1шт.
13
R30191
WASHER
- centering spring
2шт.
14
R30192
SPRING
CENTERING SPRING - spool
1шт.
15
R30198
WASHER
SPACER - detent shaft
1шт.
16
G46908
O-RING
- spool
2шт.
17
R30167
PLUG
- section body, Includes: Ref. 18 - 20
1шт.
R30174
GASKET KIT
KIT - seal
1шт.
18
NSS
NOT SOLD SEPARAT
O-RING - large
1шт.
19
NSS
NOT SOLD SEPARAT
BACKUP RING - small O-ring
1шт.
20
NSS
NOT SOLD SEPARAT
O-RING - small
1шт.
21
211-255
BALL,3/16 Dia
(5 mm), steel, secondary shuttle 3/16 Dia
1шт.
D87081
SCREW
SHUTTLE - secondary, Includes: Ref. 23 and 24
1шт.
22
NSS
NOT SOLD SEPARAT
BODY - shuttle
1шт.
R30185
SEAL KIT
KIT - seal, Includes: Ref. 23 and 24
1шт.
23
NSS
NOT SOLD SEPARAT
O-RING - large
1шт.
24
NSS
NOT SOLD SEPARAT
O-RING - small
1шт.
D87080
VALVE
SHUTTLE - primary, Includes: Ref. 25 - 27A
1шт.
25
NSS
NOT SOLD SEPARAT
BODY - shuttle
1шт.
N6632
SEAL KIT
- seal, Includes: Ref. 26 - 27A
1шт.
26
NSS
NOT SOLD SEPARAT
O-RING - outer
1шт.
27
NSS
NOT SOLD SEPARAT
O-RING - center
1шт.
27a
NSS
NOT SOLD SEPARAT
O-RING - inner
1шт.
28
9841223
PLUG,1-1/16" - 12 ORB
Load check, Incl. Ref. 29 Hex Soc, 1 1/16"-12 ORB
1шт.
29
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
- plug
1шт.
30
R30189
SPRING
- load check
1шт.
31
D87082
VALVE POPPET
POPPET - load check
1шт.
32
D78449
VALVE
- anticavitation, parts list figure 278
1шт.
Выбрано товаров: 39
