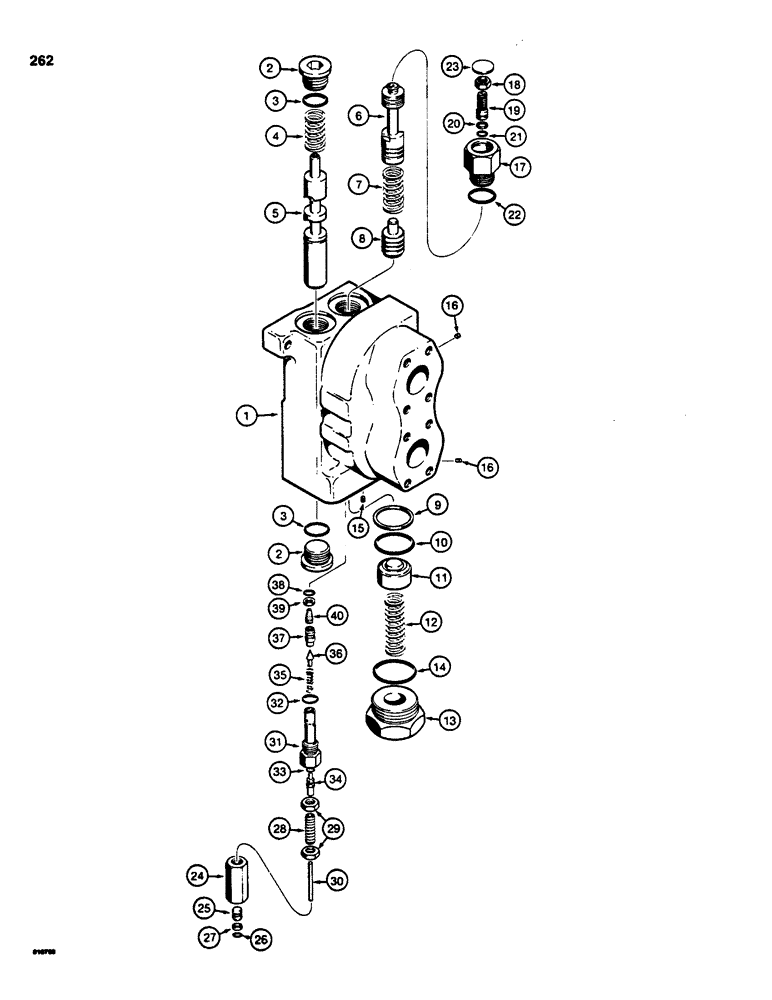

Запчасти Case 850C (262) - N7485 INLET AND OUTLET SECTION (07) - HYDRAULIC SYSTEM

N7485

VALVE

SECTION - inlet and outlet, identification no. 108, used on dozer models with a backhoe, Includes: Ref. 1 - 40

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - section

1шт.

2

9841223

PLUG,1-1/16" - 12 ORB

Incl. Ref. 3 Hex Soc, 1 1/16"-12 ORB

2шт.

3

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- plug

1шт.

4

D78464

SPRING

- regeneration spool

1шт.

5

NSS

NOT SOLD SEPARAT

SPOOL - regeneration

1шт.

6

NSS

NOT SOLD SEPARAT

SPOOL - unloading

1шт.

7

D78458

SPRING

- unloading spool

1шт.

8

NSS

NOT SOLD SEPARAT

PISTON - unloading valve

1шт.

9

D87079

RING

BACKUP RING - poppet O-ring

1шт.

10

G34001

O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro

- poppet

1шт.

11

D78461

PISTON ASSY.

POPPET - unloading valve

1шт.

12

R30171

SPRING

- piston

1шт.

13

D78462

PLUG

- hex head, Includes: Ref. 14

1шт.

14

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

- plug

1шт.

15

D78455

PLUG

- hex socket

1шт.

16

D78456

PLUG

RESTRICTOR - flow

2шт.

D87077

PLUG

ASSEMBLY - unloading spool, Includes: Ref. 17 - 22

1шт.

17

NSS

NOT SOLD SEPARAT

PLUG - unloading spool

1шт.

18

25-146

JAM NUT,Jam, 3/8"-16, G5

- hex, jam, 3/8" - 16 NC

1шт.

19

NSS

NOT SOLD SEPARAT

ADJUSTING SCREW - unloading spool

1шт.

20

D87094

BACK-UP RING

BACKUP RING - screw O-ring

1шт.

21

A138385

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

- adjusting screw

1шт.

22

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- plug

1шт.

23

D87075

COVER

CAP - dust

1шт.

N7489

VALVE PRESSURE RELIE

RELIEF ASSEMBLY - inlet/outlet section, Includes: Ref. 24 - 40

1шт.

24

NSS

NOT SOLD SEPARAT

BODY - piston

1шт.

25

NSS

NOT SOLD SEPARAT

PISTON - relief assembly

1шт.

26

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

- piston

1шт.

27

D71056

RING,Split, 4.47mm ID x 7.21mm OD x 1.32mm Thk

BACKUP RING - piston O-ring

1шт.

28

N7491

ADJUSTMENT SCREW,3/8" - 24 x 1.32"

ADJUSTING SCREW - relief assembly

1шт.

29

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex, jam, 3/8" - 24 NF

2шт.

30

N7490

DOWEL

Pin - adjusting screw

1шт.

31

NSS

NOT SOLD SEPARAT

BODY - relief assembly

1шт.

32

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, body, outer

1шт.

33

A51274

O-RING,0.145" ID x 0.285" OD

- body, inner

1шт.

34

NSS

NOT SOLD SEPARAT

RETAINER - spring

1шт.

35

D78468

SPRING

- plunger

1шт.

36

D78469

PLUNGER

- relief assembly

1шт.

37

NSS

NOT SOLD SEPARAT

SEAT - plunger

1шт.

38

A27358

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

- plunger seat

1шт.

39

L35305

RING

BACKUP RING - seat O-ring

1шт.

40

NSS

NOT SOLD SEPARAT

FILTER - relief assembly

1шт.
