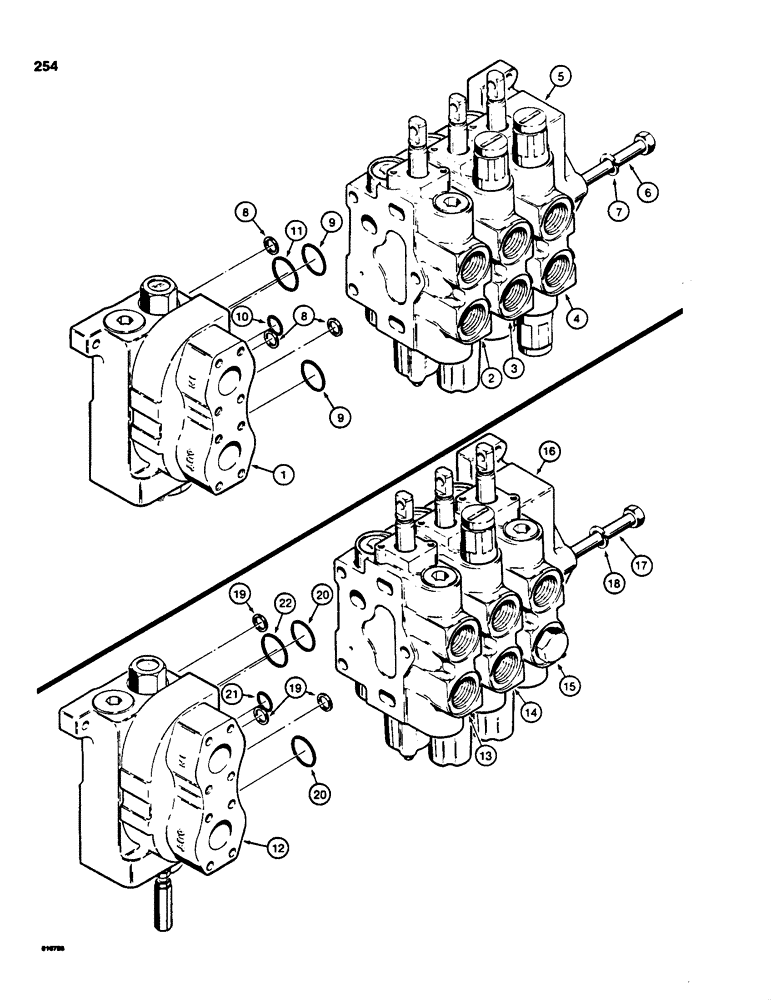

Запчасти Case 850C (254) - R40894 THREE SPOOL CONTROL VALVE, TILT DOZER WITH RIPPER (07) - HYDRAULIC SYSTEM

R40894

LOCK VALVE

CONTROL VALVE - tilt dozer, Includes: Ref. 1 - 11

1шт.

1

D87071

VALVE

SECTION - inlet and outlet, identification no. 106, parts list^.text1^figure 260

1шт.

Identification numbers are between section ports.

1шт.

2

D87073

SEGMENT

SECTION - dozer tilt, identification no. 217, parts list figure 270

1шт.

Identification numbers are between section ports.

1шт.

3

D87074

VALVE

SECTION - dozer lift, identification no. 307, parts list figure 266

1шт.

Identification numbers are between section ports.

1шт.

4

D87078

VALVE

SECTION - ripper, identification no. 215, parts list figure 274

1шт.

Identification numbers are between section ports.

1шт.

5

D87072

COVER ASSY

COVER - end

1шт.

6

D74374

BOLT

- special

3шт.

7

92-7

LOCK WASHER,7/16"

3шт.

8

D77566

SHIM,.0030" Thk

Sections .0030" Thk

12шт.

R37003

SEAL KIT

KIT - seal, Includes: Ref. 9 - 11

4шт.

9

NSS

NOT SOLD SEPARAT

O-RING - 1-5/16" (32 mm) OD

2шт.

10

NSS

NOT SOLD SEPARAT

O-RING - 1" (25 mm) OD

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - 1-1/2" (37 mm) OD

1шт.

R46553

VALVE

CONTROL VALVE - tilt dozer with backhoe, 3 spool, Includes: Ref. 12 - 22

1шт.

12

N7485

VALVE

SECTION - inlet and outlet, identification no. 108, parts list figure 262, R46553 3 spool control valve tilt dozer with backhoe

1шт.

Identification numbers are between section ports.

1шт.

13

D87073

SEGMENT

SECTION - dozer tilt, identification no. 217, parts list figure 270, R46553 3 spool control valve with backhoe

1шт.

Identification numbers are between section ports.

1шт.

14

D87074

VALVE

SECTION - dozer lift, identification no. 307, parts list figure 266, R46553 3 spool control valve tilt with backhoe

1шт.

Identification numbers are between section ports.

1шт.

15

D87096

VALVE

SECTION - backhoe, identification no. 220, parts list figure 272, R46553 3 spool control valve tilt dozer with

1шт.

Identification numbers are between section ports.

1шт.

16

D87072

COVER ASSY

COVER - end, R46553 3 spool control valve tilt dozer with backhoe

1шт.

17

D74374

BOLT

- special, R46553 3 spool control valve tilt dozer with backhoe

3шт.

18

92-7

LOCK WASHER,7/16"

R46553 3 spool control valve tilt dozer with backhoe 7/16"

3шт.

19

D77566

SHIM,.0030" Thk

Sections, R46553 3 spool control valve tilt dozer with backhoe .0030" Thk

12шт.

R37003

SEAL KIT

KIT - seal, R46553 3 spool control valve tilt dozer with backhoe, Includes: Ref. 20 - 22

4шт.

20

NSS

NOT SOLD SEPARAT

O-RING - 1-5/16" (32 mm) OD, R46553 3 spool control valve tilt dozer with backhoe

2шт.

21

NSS

NOT SOLD SEPARAT

O-RING - 1" (25 mm) OD, R46553 3 spool control valve tilt dozer with backhoe

1шт.

22

NSS

NOT SOLD SEPARAT

O-RING - 1-1/2" (37 mm) OD, R46553 3 spool control valve tilt dozer with backhoe

1шт.
