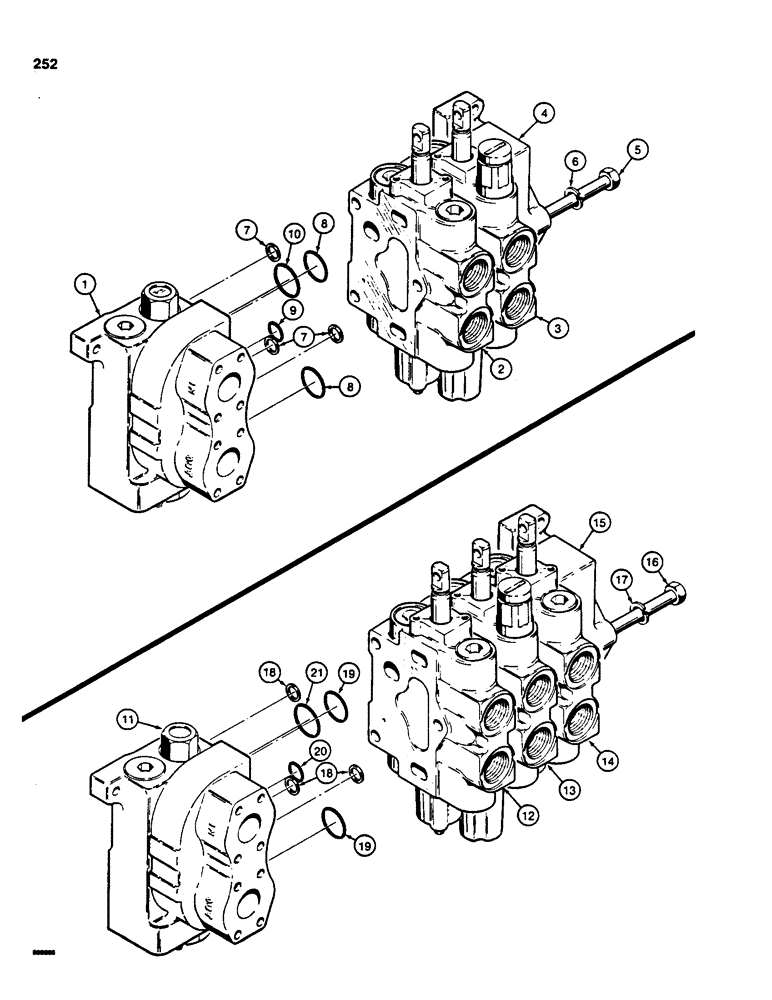

Запчасти Case 850C (252) - R40893 TWO SPOOL CONTROL VALVE, TILT DOZER (07) - HYDRAULIC SYSTEM

R40893

VALVE

CONTROL VALVE - tilt dozer, Includes: Ref. 1 - 10

1шт.

1

D87071

VALVE

SECTION - inlet and outlet, identification no. 106, parts list figure 260

1шт.

Identification numbers are between section ports.

1шт.

2

D87073

SEGMENT

SECTION - dozer tilt, identification no. 217, parts list figure 270

1шт.

Identification numbers are between section ports.

1шт.

3

D87074

VALVE

SECTION - dozer lift, identification no. 307, parts list figure 266

1шт.

Identification numbers are between section ports.

1шт.

4

D87072

COVER ASSY

COVER - end

1шт.

5

D74373

BOLT

- special

3шт.

6

92-7

LOCK WASHER,7/16"

3шт.

7

D77566

SHIM,.0030" Thk

Sections .0030" Thk

9шт.

R37003

SEAL KIT

KIT - seal, Includes: Ref. 8 - 10

3шт.

8

NSS

NOT SOLD SEPARAT

O-RING - 1-5/16" (32 mm) OD

2шт.

9

NSS

NOT SOLD SEPARAT

O-RING - 1" (25 mm) OD

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - 1-1/2" (37 mm) OD

1шт.

R46551

VALVE

CONTROL VALVE - angle tilt dozer, 3 spool, Includes: Ref. 11 - 21

1шт.

11

D87071

VALVE

SECTION - inlet and outlet, identification no. 106, parts list figure 260, R46551 3 spool control valve angle tilt dozer

1шт.

Identification numbers are between section ports.

1шт.

12

D87073

SEGMENT

SECTION - dozer tilt, identification no. 217, parts list figure 270, R46551 3 spool control valve angle

1шт.

Identification numbers are between section ports.

1шт.

13

D87074

VALVE

SECTION - dozer lift, identification no. 307, parts list figure 266, R46551 3 spool control valve angle tilt

1шт.

Identification numbers are between section ports.

1шт.

14

D87073

SEGMENT

SECTION - dozer angle, identification no. 217, parts list figure 270, R46551 3 spool control valve tilt

1шт.

Identification numbers are between section ports.

1шт.

15

D87072

COVER ASSY

COVER - end, R46551 3 spool control valve angle tilt dozer

1шт.

16

D74374

BOLT

- special, R46551 3 spool control valve angle tilt dozer

3шт.

17

92-7

LOCK WASHER,7/16"

R46551 3 spool control valve angle tilt dozer 7/16"

3шт.

18

D77566

SHIM,.0030" Thk

Sections, R46551 3 spool control valve angle tilt dozer .0030" Thk

12шт.

R37003

SEAL KIT

KIT - seal, R46551 3 spool control valve angle tilt dozer, Includes: Ref. 19 - 21

4шт.

19

NSS

NOT SOLD SEPARAT

O-RING - 1-5/16" (32 mm) OD, R46551 3 spool control valve angle tilt dozer

2шт.

20

NSS

NOT SOLD SEPARAT

O-RING - 1" (25 mm) OD, R46551 3 spool control valve angle tilt dozer

1шт.

21

NSS

NOT SOLD SEPARAT

O-RING - 1-1/2" (37mm) OD, R46551 3 spool control valve angle tilt dozer

1шт.
