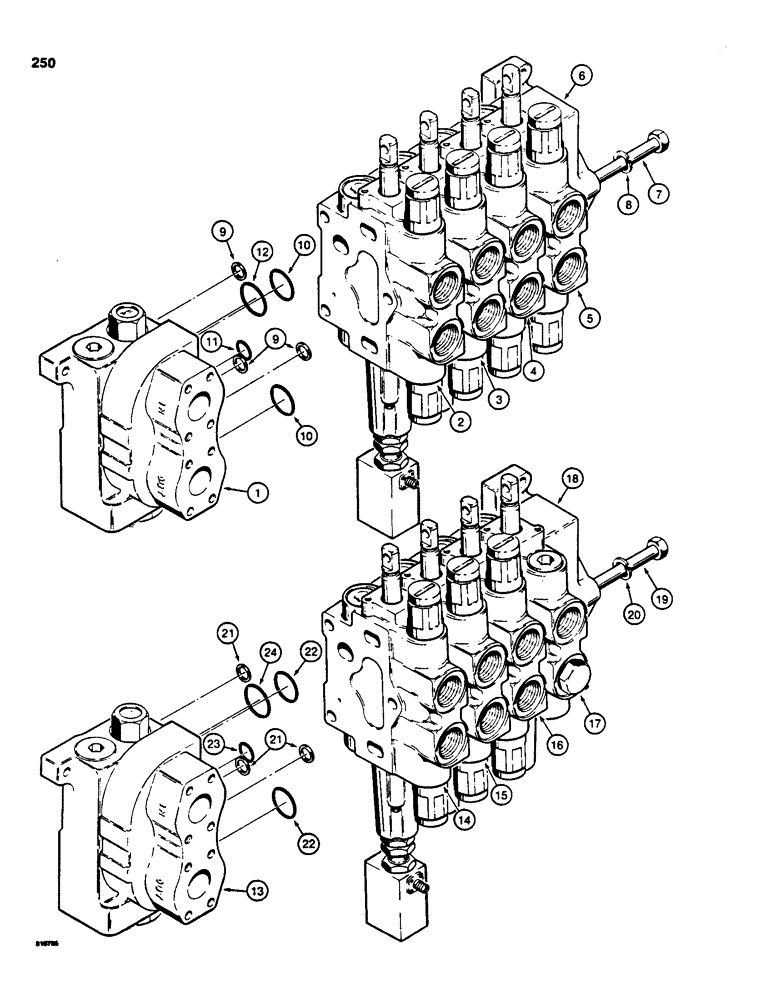

Запчасти Case 850C (250) - R40890 FOUR SPOOL CONTROL VALVE, LOADER WITH RIPPER AND CLAM BUCKET (07) - HYDRAULIC SYSTEM

R40890

LOCK VALVE

CONTROL VALVE - loader, Includes: Ref. 1 - 12

1шт.

1

D87071

VALVE

SECTION - inlet and outlet, identification no. 106, parts list figure 260

1шт.

Identification numbers are between section ports.

1шт.

2

D88764

LOCK VALVE

SECTION - loader bucket, identification no. 405, parts list figure 268

1шт.

Identification numbers are between section ports.

1шт.

3

D88765

LOCK VALVE

SECTION - loader lift, identification no. 306, parts list figure 264

1шт.

Identification numbers are between section ports.

1шт.

4

D88766

VALVE

SECTION - clam bucket, identification no. 214, parts list figure 274

1шт.

Identification numbers are between section ports.

1шт.

5

D87078

VALVE

SECTION - ripper, identification no. 215, parts list figure 274

1шт.

Identification numbers are between section ports.

1шт.

6

D87072

COVER ASSY

COVER - end

1шт.

7

D74375

BOLT

- special

3шт.

8

92-7

LOCK WASHER,7/16"

3шт.

9

D77566

SHIM,.0030" Thk

Sections .0030" Thk

15шт.

R37003

SEAL KIT

KIT - seal, Includes: Ref. 10 - 12

5шт.

10

NSS

NOT SOLD SEPARAT

O-RING - 1-5/16" (32 mm) OD

2шт.

11

NSS

NOT SOLD SEPARAT

O-RING - 1" (25 mm) OD

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - 1-1/2" (37 mm) OD

1шт.

R46556

VALVE

CONTROL VALVE - loader, 4 spoolwith backhoe & clam bucket, Includes: Ref. 13 - 24

1шт.

13

D87071

VALVE

SECTION - inlet and outlet, identification no 106, parts list figure 260, R46556 4 spool control valve loader with backhoe & clam bucket

1шт.

Identification numbers are between section ports.

1шт.

14

D88764

LOCK VALVE

SECTION - loader bucket, identification no. 405, parts list figure 268, R46556 4 spool control valve with backhoe & clam

1шт.

Identification numbers are between section ports.

1шт.

15

D88765

LOCK VALVE

SECTION - loader lift, identification no. 306, parts list figure 264, R46556 4 spool control valve with backhoe & clam bucket

1шт.

Identification numbers are between section ports.

1шт.

16

D88766

VALVE

SECTION - clam bucket, identification no 214, parts list figure 274, R46556 4 spool control valve loader with backhoe

1шт.

Identification numbers are between section ports.

1шт.

17

D87096

VALVE

SECTION - backhoe, identification no 220, parts list figure 272, R46556 4 spool control valve loader with clam bucket

1шт.

Identification numbers are between section ports.

1шт.

18

D87072

COVER ASSY

COVER - end, R46556 4 spool control valve loader with backhoe & clam bucket

1шт.

19

D74375

BOLT

- special, R46556 4 spool control valve loader with backhoe & clam bucket

3шт.

20

92-7

LOCK WASHER,7/16"

R46556 4 spool control valve loader with backhoe & clam bucket 7/16"

3шт.

21

D77566

SHIM,.0030" Thk

Sections, R46556 4 spool control valve loader with backhoe & clam bucket .0030" Thk

15шт.

R37003

SEAL KIT

KIT - seal, R46556 4 spool control valve loader with backhoe & clam bucket, Includes: Ref. 22 - 24

5шт.

22

NSS

NOT SOLD SEPARAT

O-RING - 1-5/16" (32 mm) OD, R46556 4 spool control valve loader with backhoe & clam bucket

2шт.

23

NSS

NOT SOLD SEPARAT

O-RING - 1" (25 mm) OD, R46556 4 spool control valve loader with backhoe & clam bucket

1шт.

24

NSS

NOT SOLD SEPARAT

O-RING - 1-1/2" (37 mm) OD, R46556 4 spool control valve loader with backhoe & clam bucket

1шт.
