Запчасти Case 850C (246) - R40888 TWO SPOOL CONTROL VALVE, LOADER MODEL (07) - HYDRAULIC SYSTEM

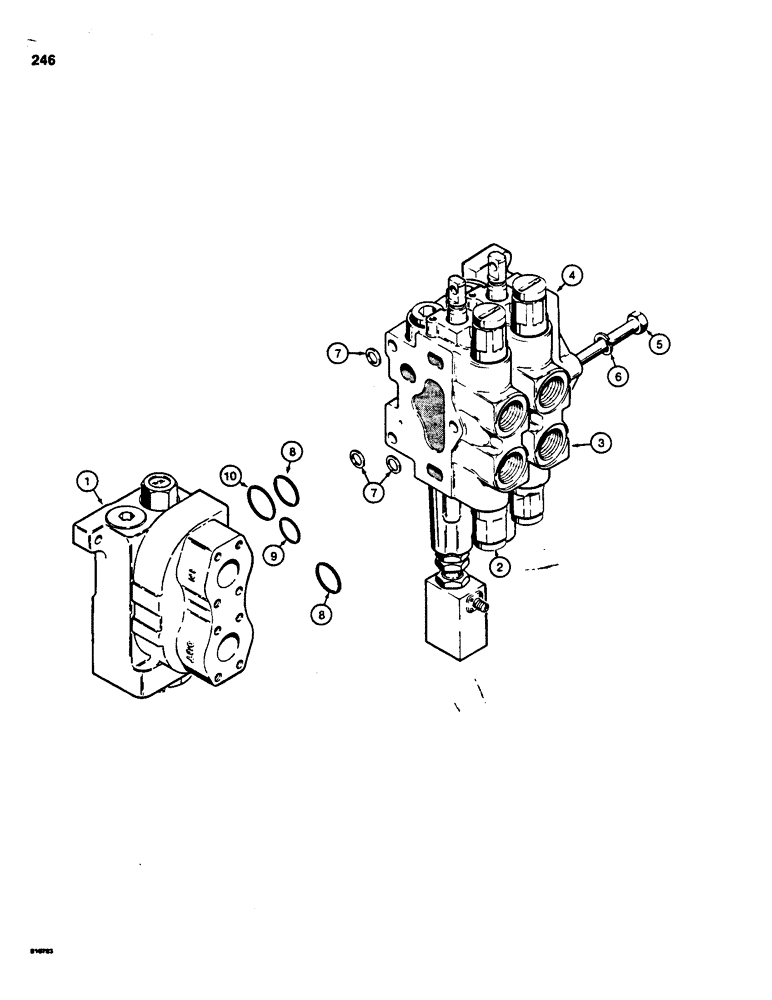

Схема запчастей Case 850C - (246) - R40888 TWO SPOOL CONTROL VALVE, LOADER MODEL (07) - HYDRAULIC SYSTEM
9
6
7
2
7
10
5
1
4
8
3
8

Артикул

Название

Примечание

Количество

R40888

LOCK VALVE

CONTROL VALVE - loader, Includes: Ref. 1 - 10

1шт.

1

D87071

VALVE

SECTION - inlet and outlet, identification no 106, parts list figure 260

1шт.

Identification numbers are between section ports.

1шт.

2

D88764

LOCK VALVE

SECTION - loader bucket, identification no. 405, parts list page 269

1шт.

Identification numbers are between section ports.

1шт.

3

D88765

LOCK VALVE

SECTION - loader lift, identification no. 306, parts list figure 264

1шт.

Identification numbers are between section ports.

1шт.

4

D87072

COVER ASSY

COVER - end

1шт.

5

D74373

BOLT

- special

3шт.

6

92-7

LOCK WASHER,7/16"

3шт.

7

D77566

SHIM,.0030" Thk

Sections .0030" Thk

9шт.

R37003

SEAL KIT

KIT - seal, Includes: Ref. 8 - 10

3шт.

8

NSS

NOT SOLD SEPARAT

O-RING - 1-5/16" (32 mm) OD

2шт.

9

NSS

NOT SOLD SEPARAT

O-RING - 1" (25 mm) OD

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - 1-1/2" (37 mm) OD

1шт.

Выбрано товаров: 15
